MDC – PITCH & SEAL DIAMETER – BODY

Inspects pitch and seal diameter along the thread length in external, internal connections. This model has a full body and support on tungsten carbide bars. Needs setting standard to set to zero. Other ranges available upon customer request.

CODEINT RANGE MININT RANGE MAXEXT RANGE MINEXT RANGE MAXDIALREACH
200MDC412MD2 5/8”7”0”4 ½”.0005” / .5” / 0 - 25 - 0 INT – EXT4 ½”
200MDC958MD2 5/8”12 7/8”0”9 5/8”.0005” / .5” / 0 - 25 - 0 INT – EXT4 ½”
200MDC1358MD2 5/8”17”0”13 5/8”.0005” / .5” / 0 - 25 - 0 INT – EXT4 ½”
200MDC1358MD-7
2 5/8”17”0”13 5/8”.0005” / .5” / 0 - 25 - 0 INT – EXT7”

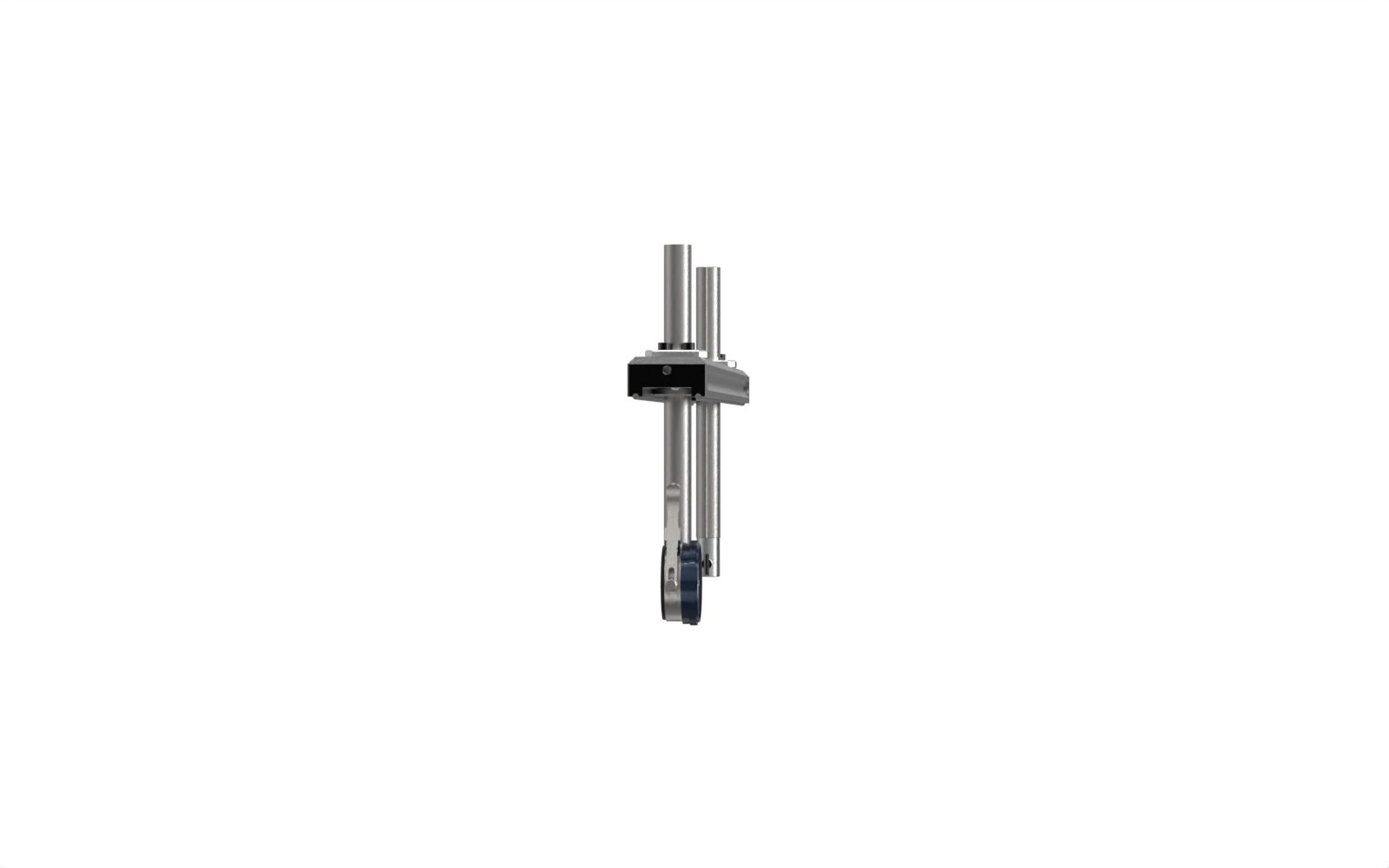

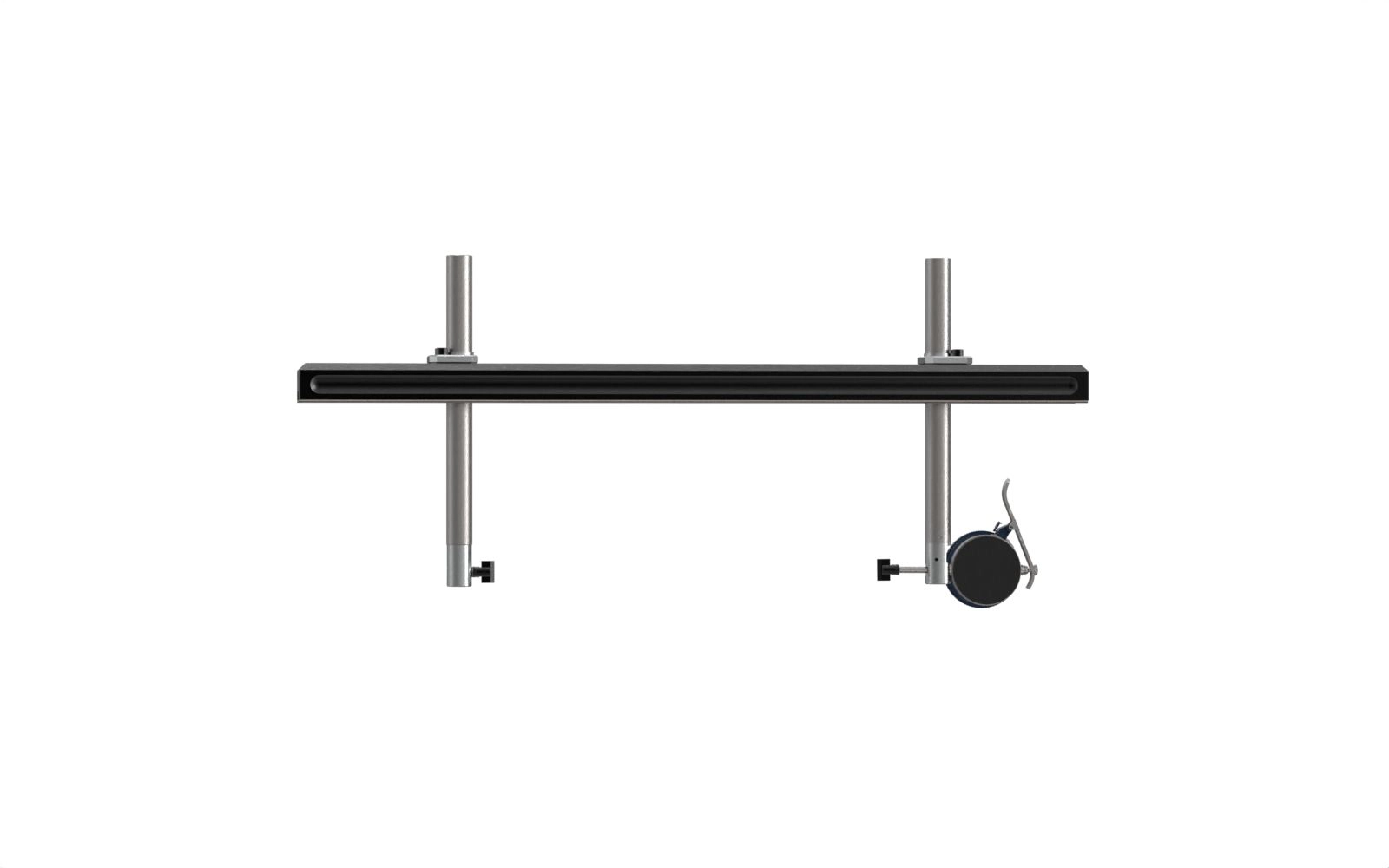

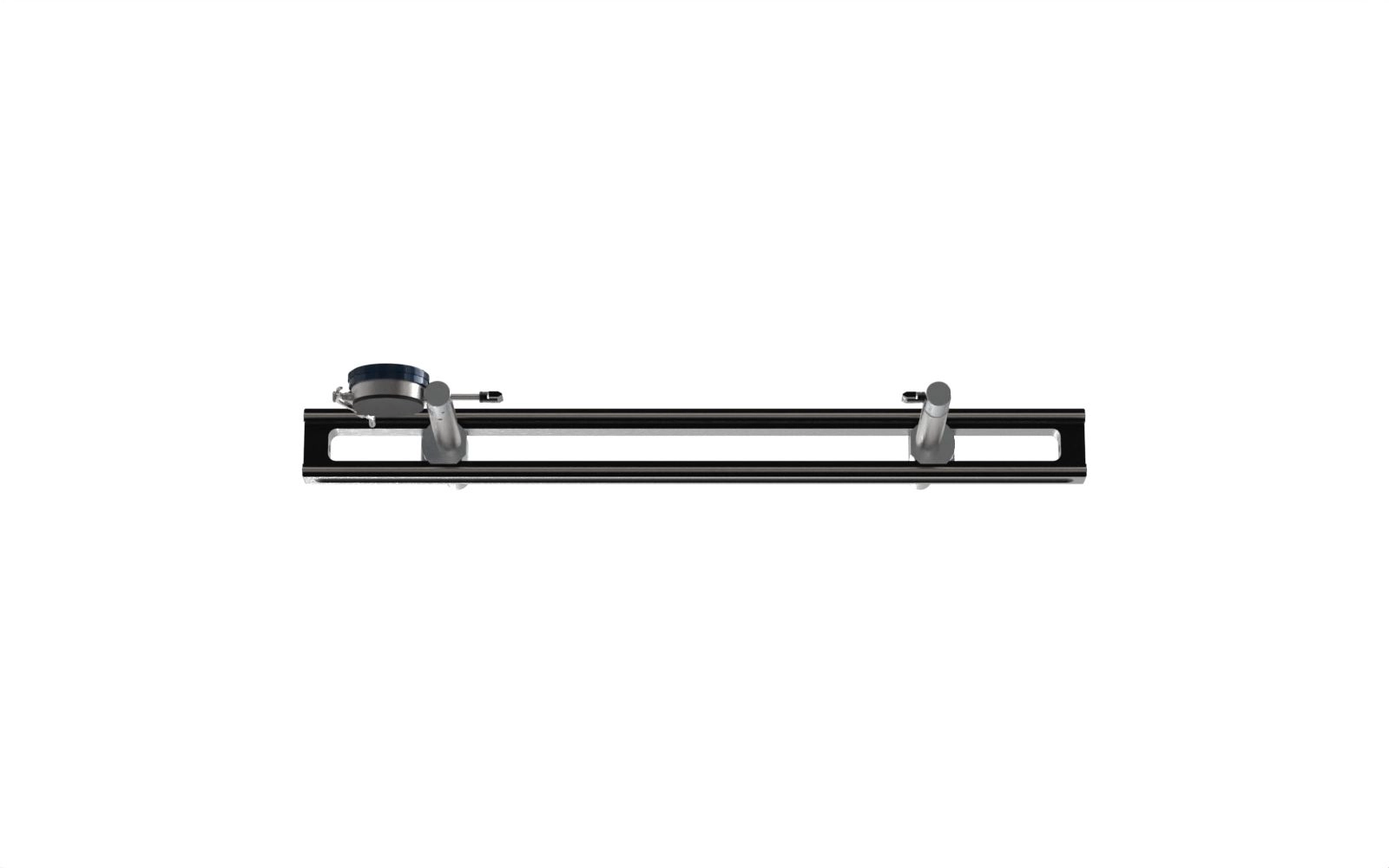

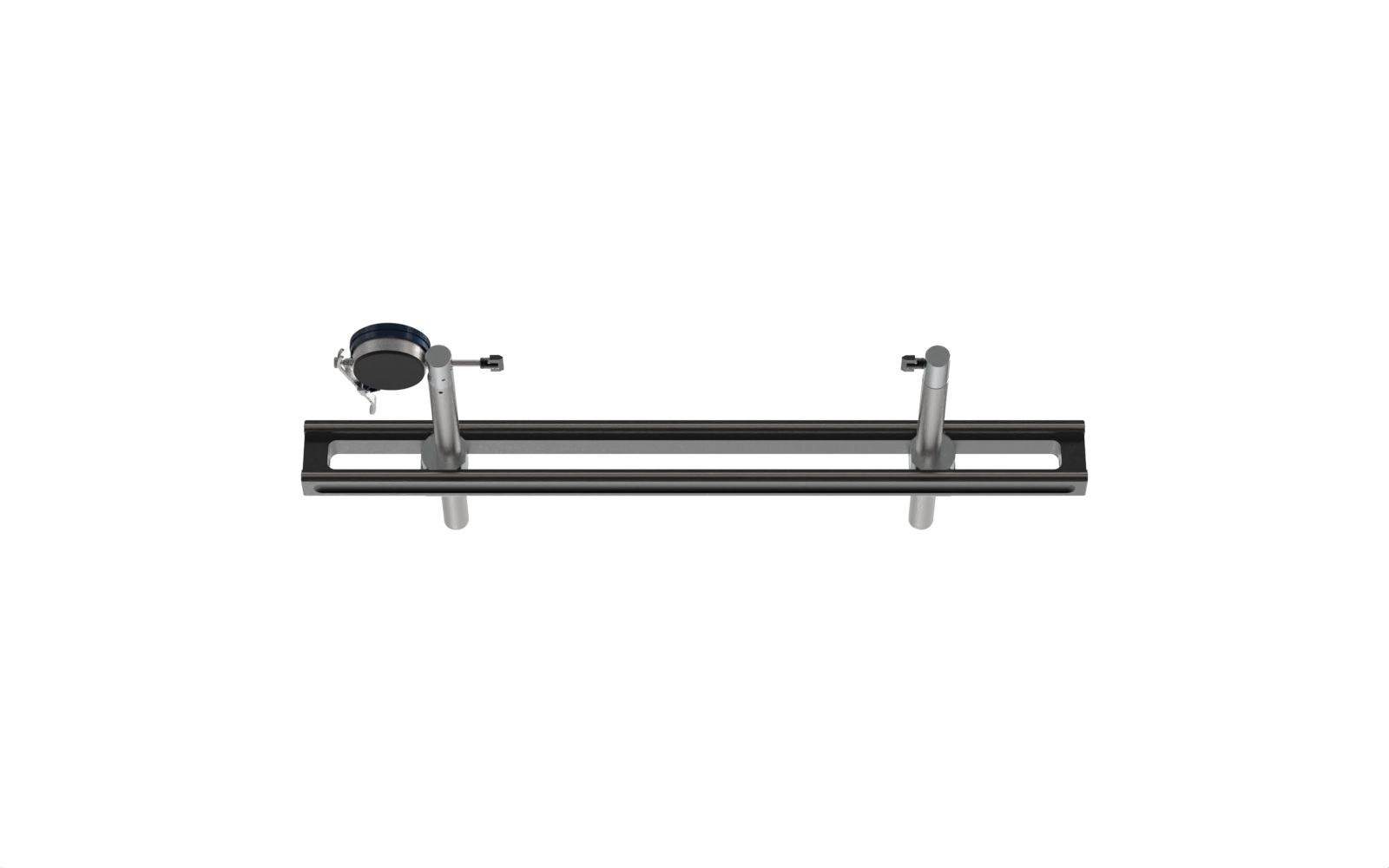

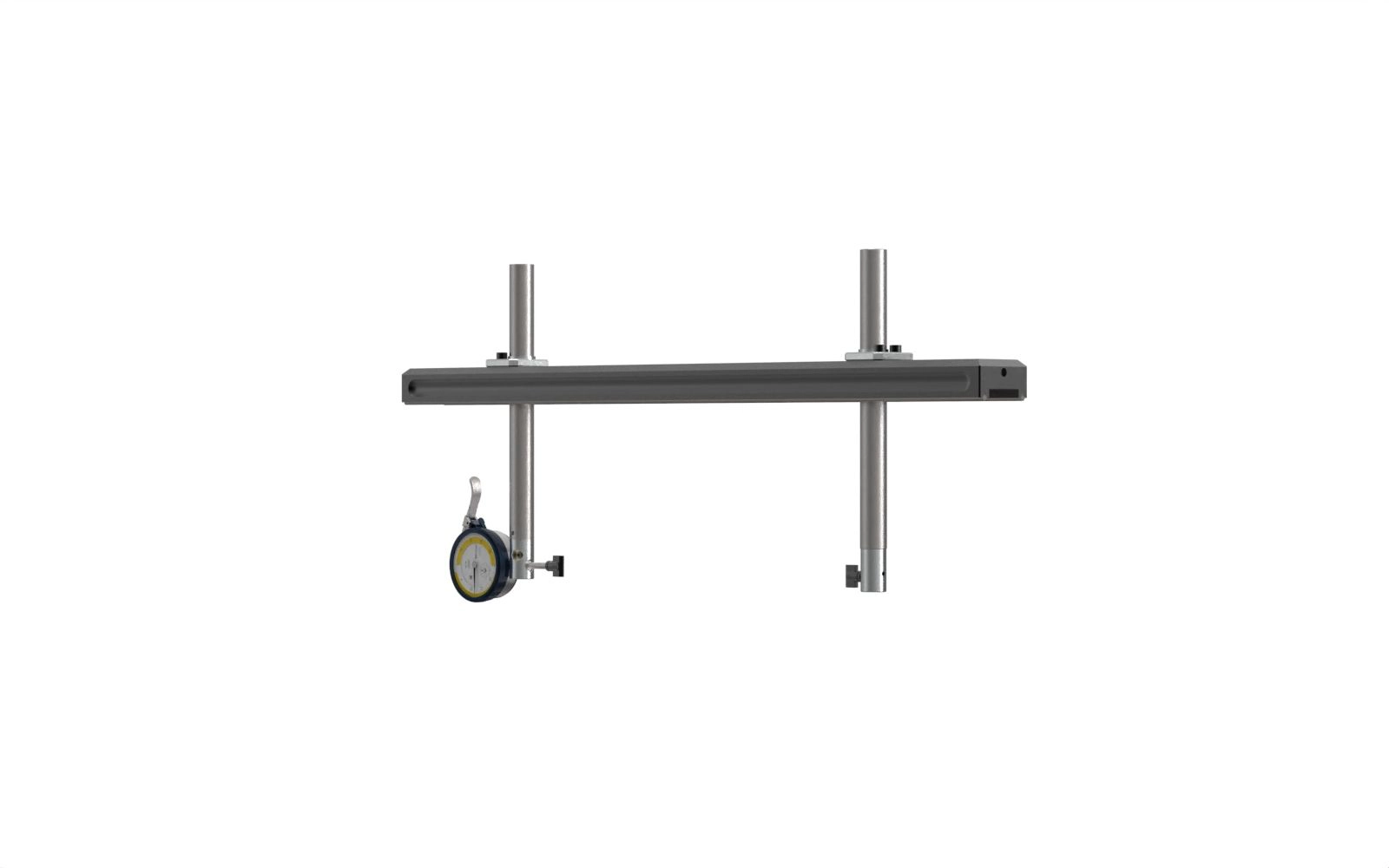

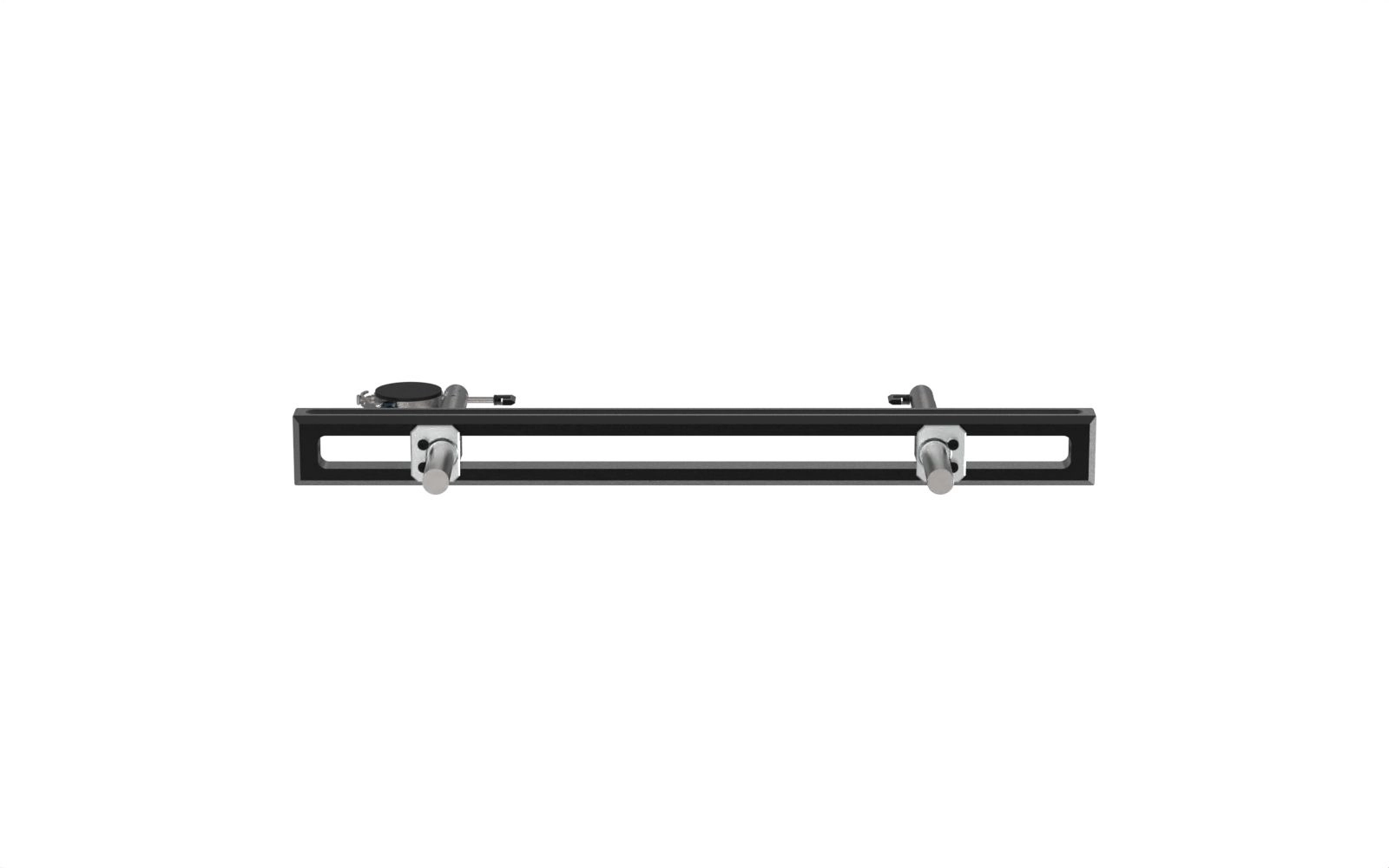

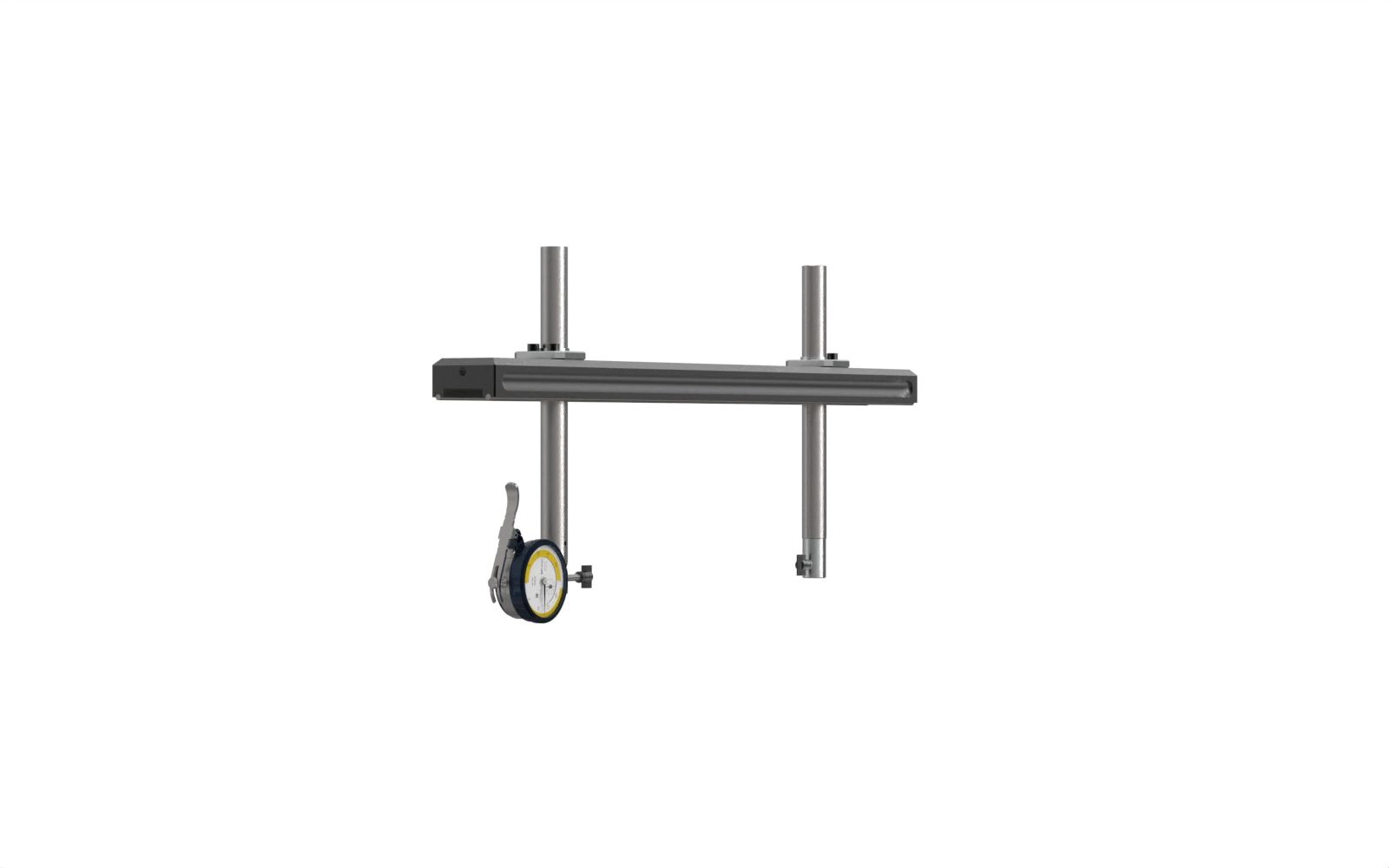

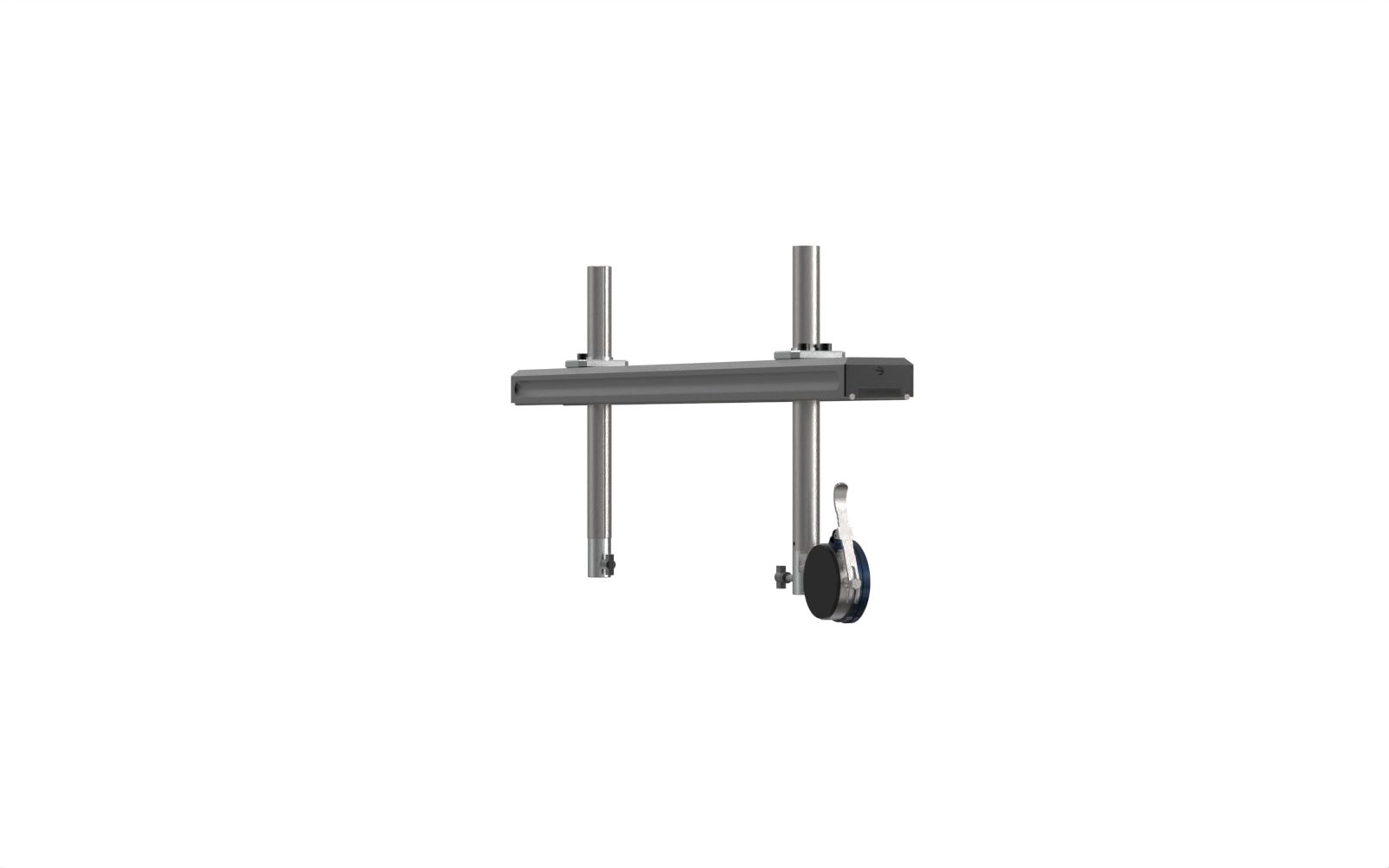

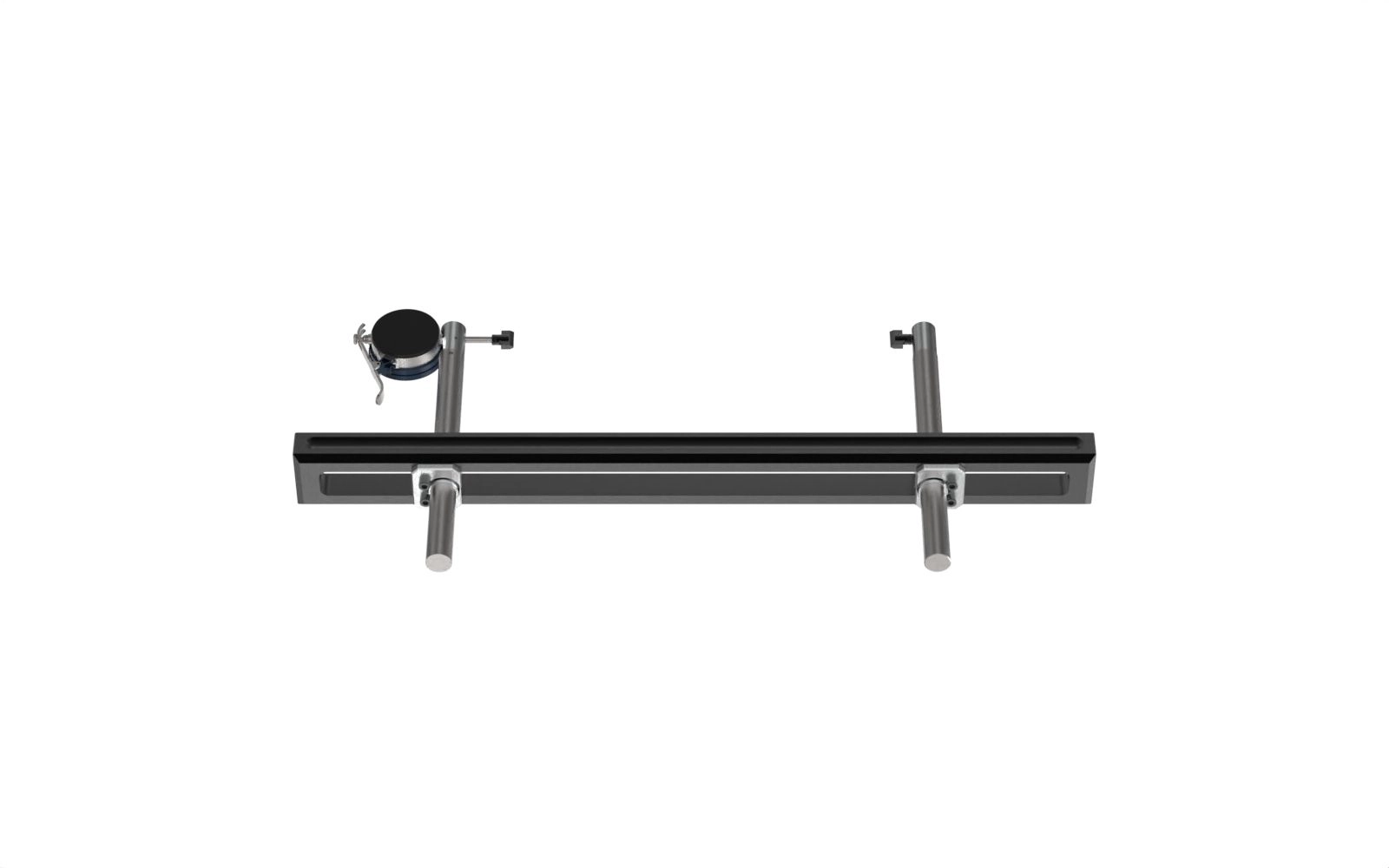

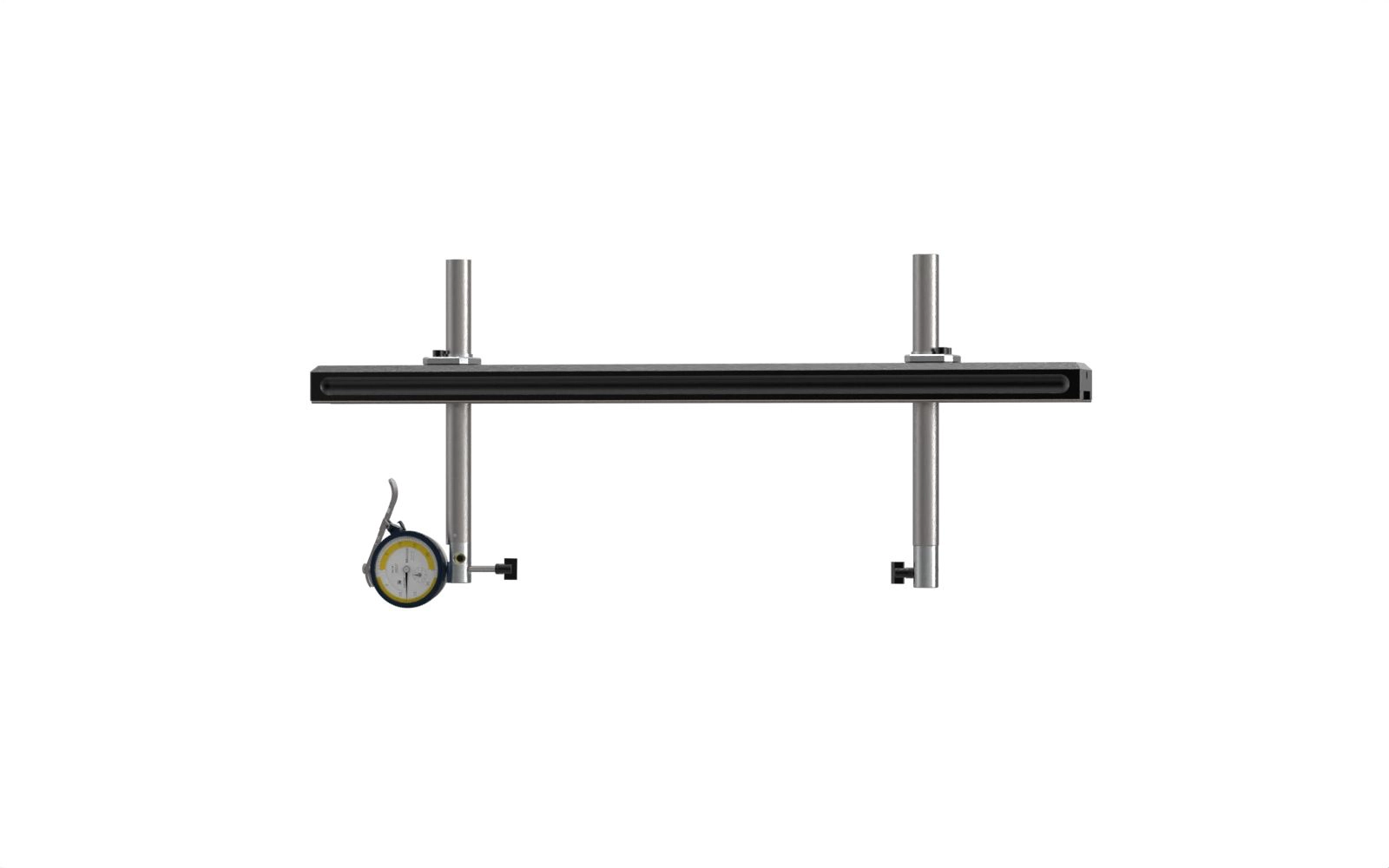

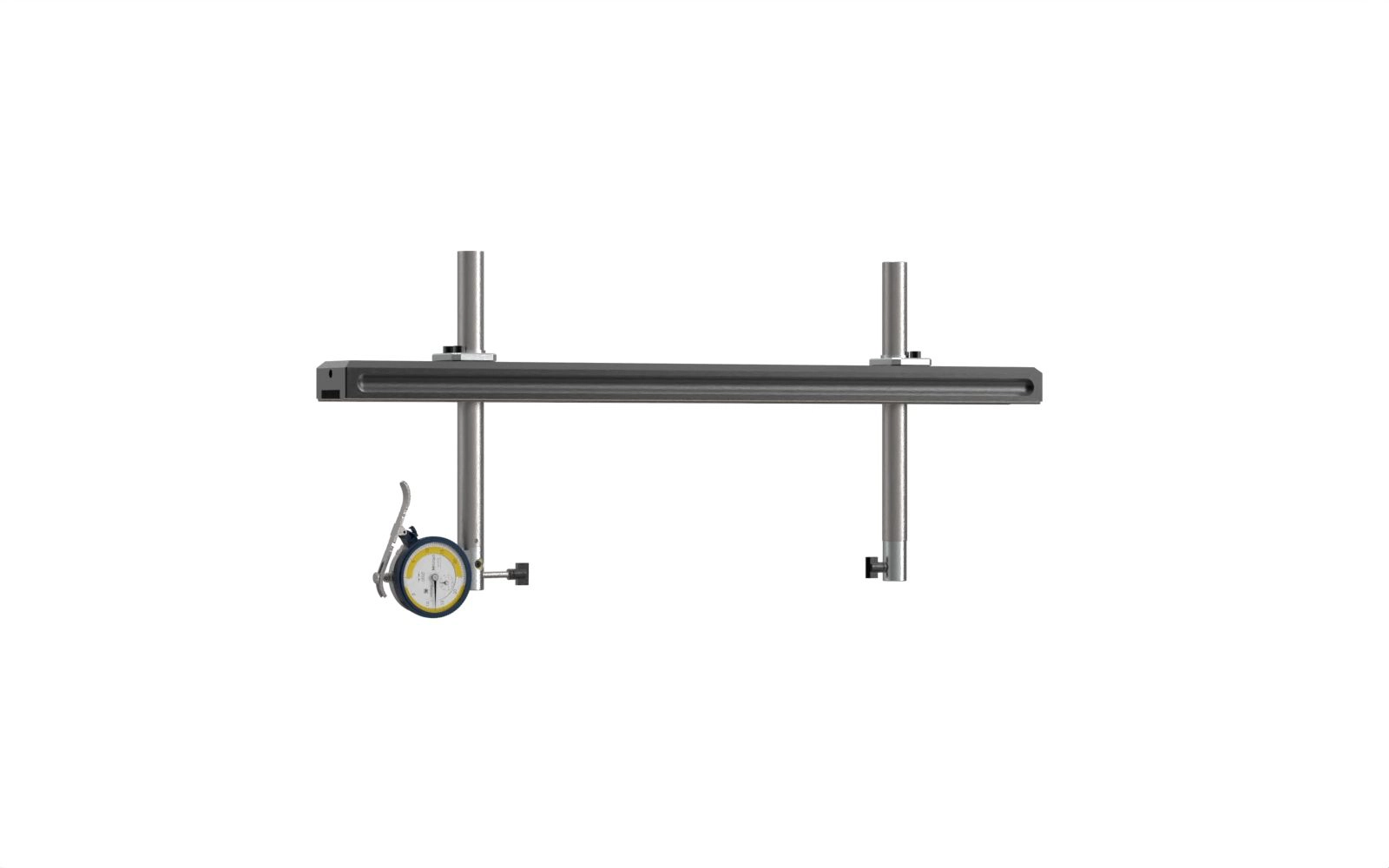

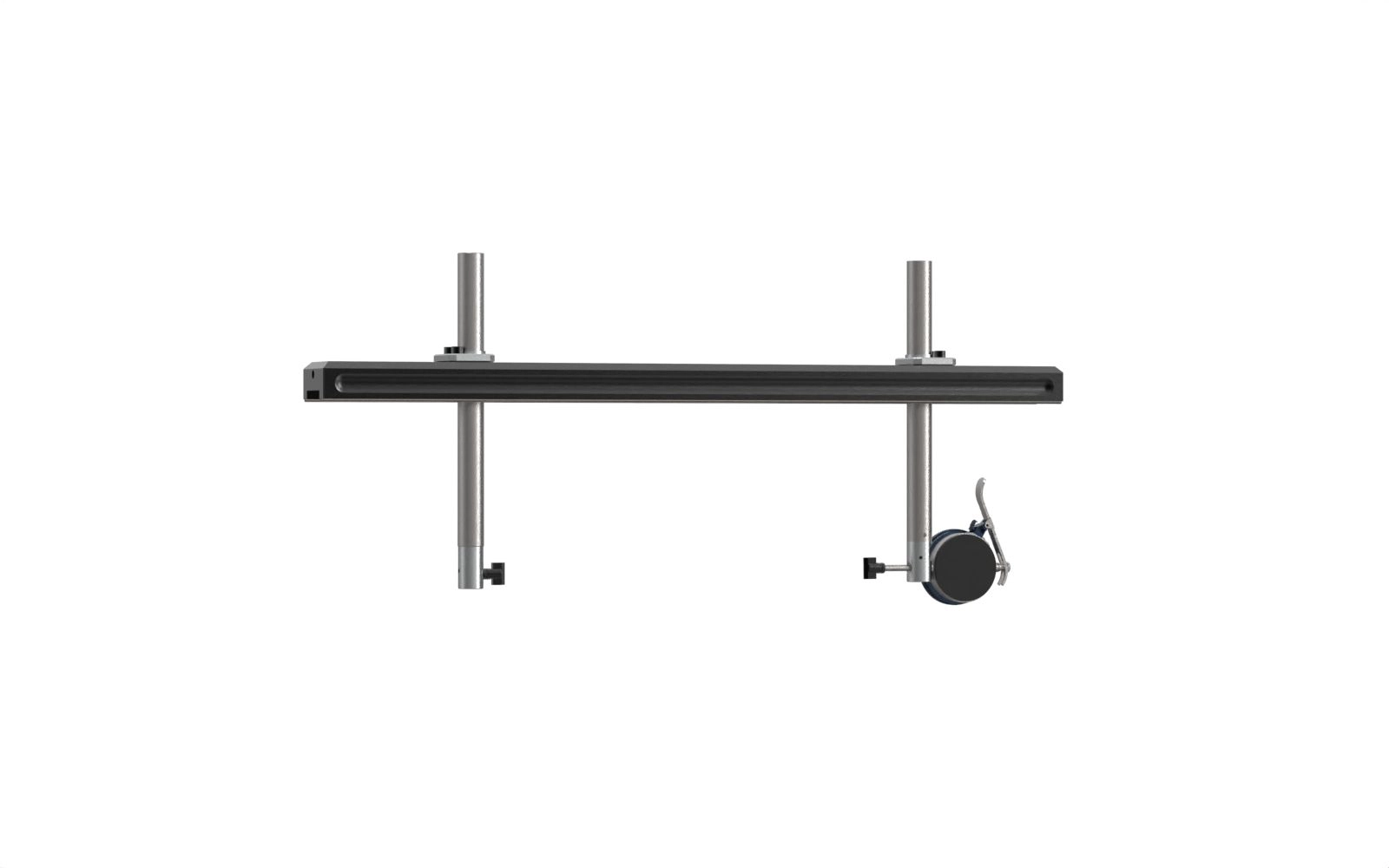

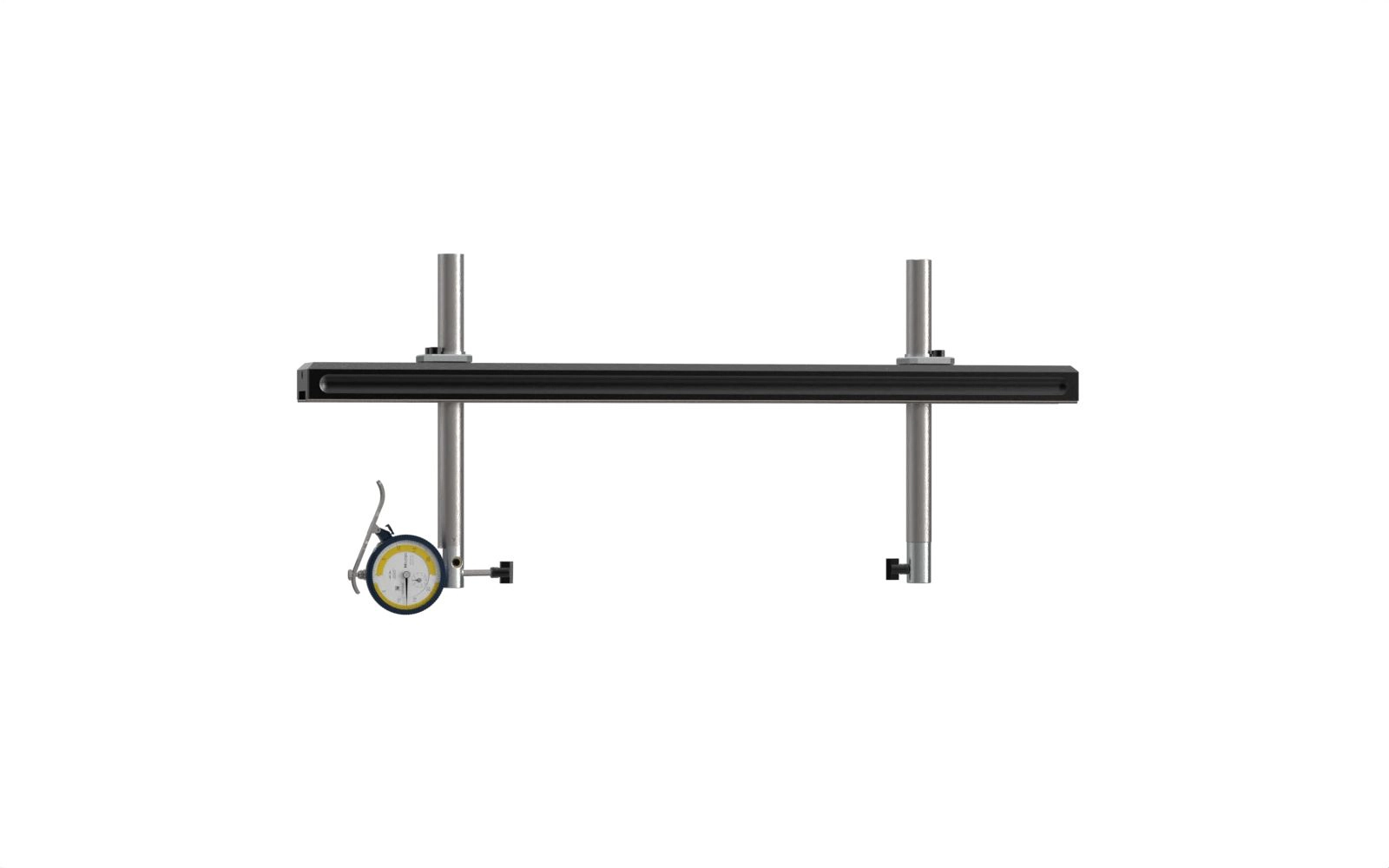

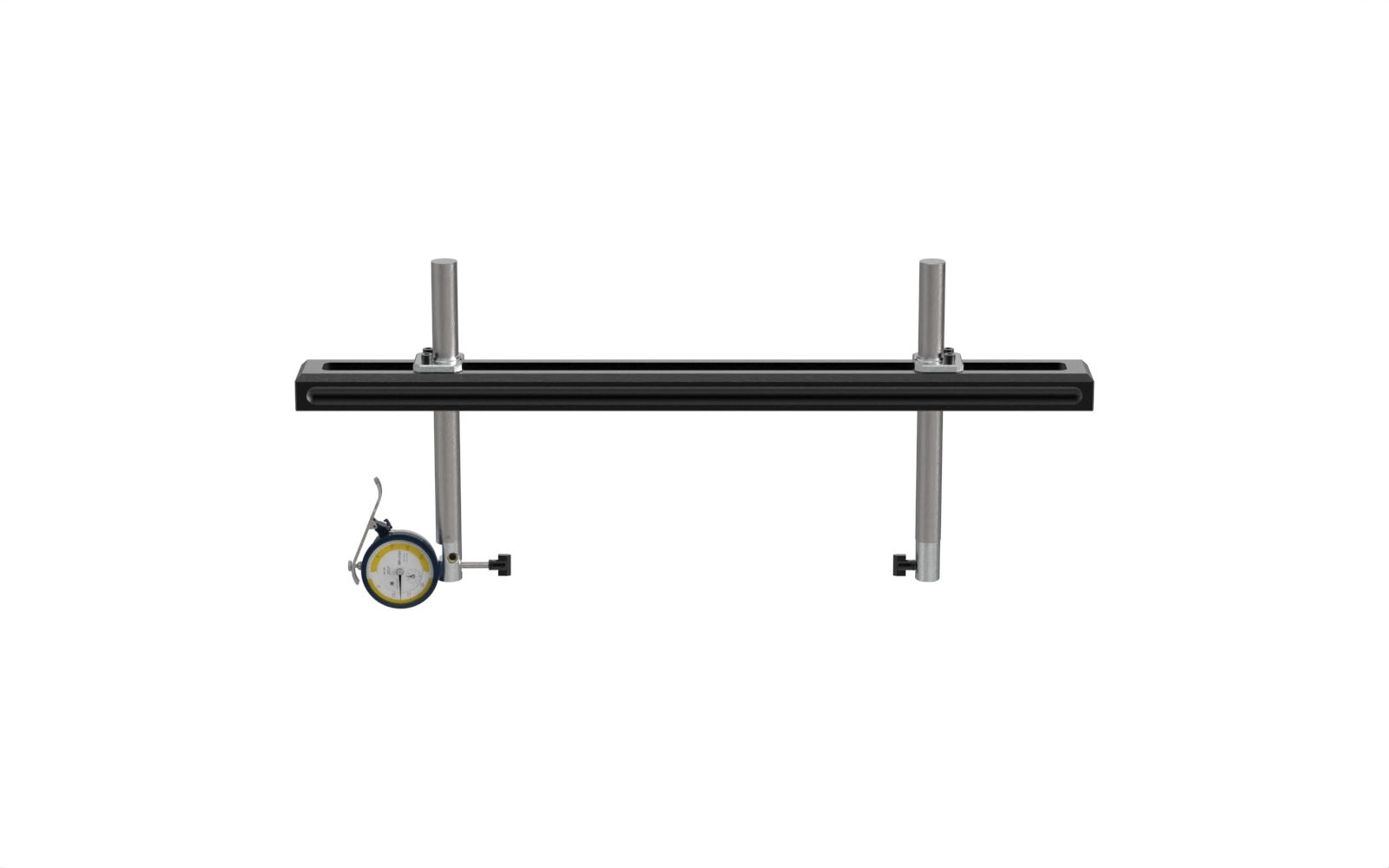

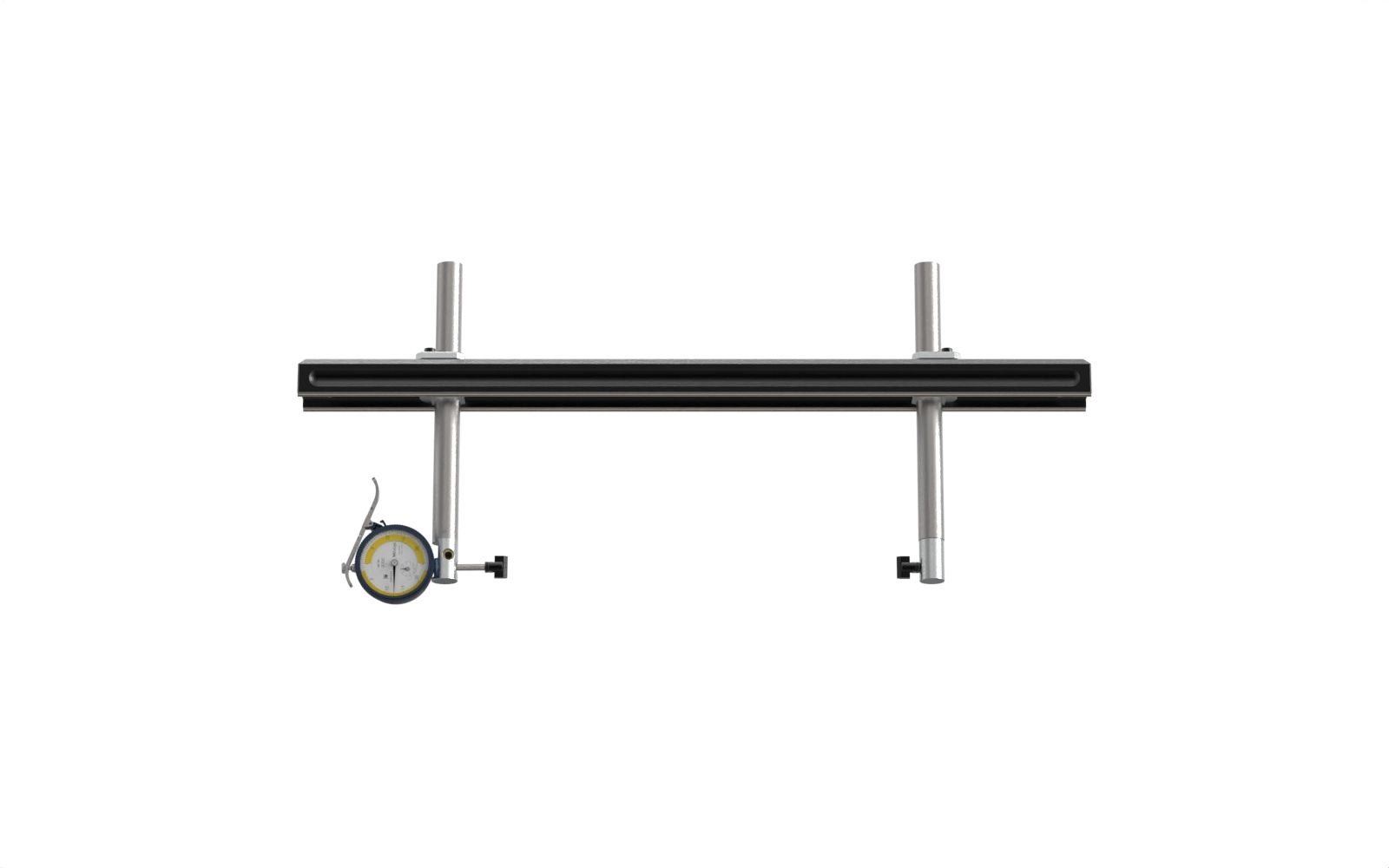

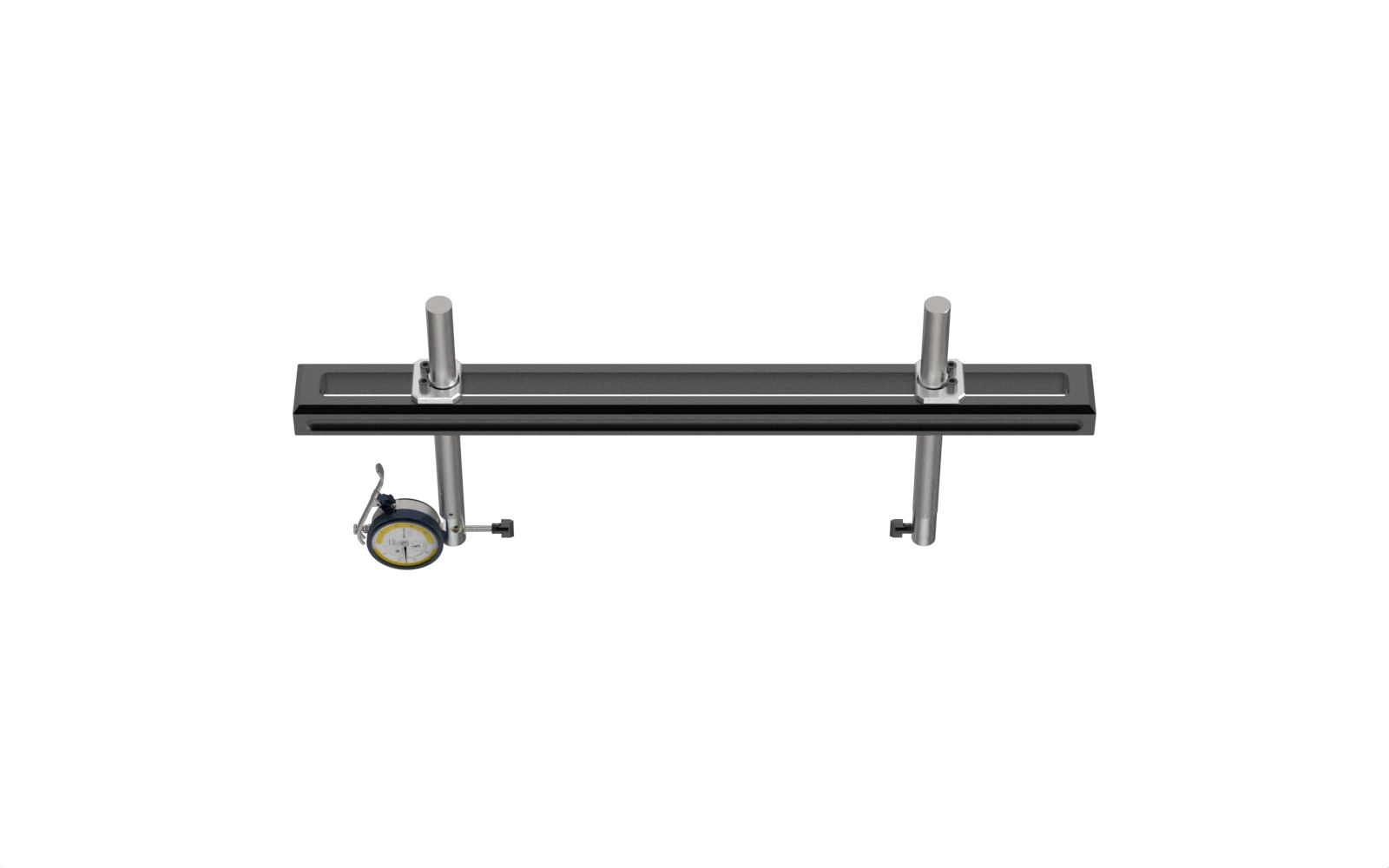

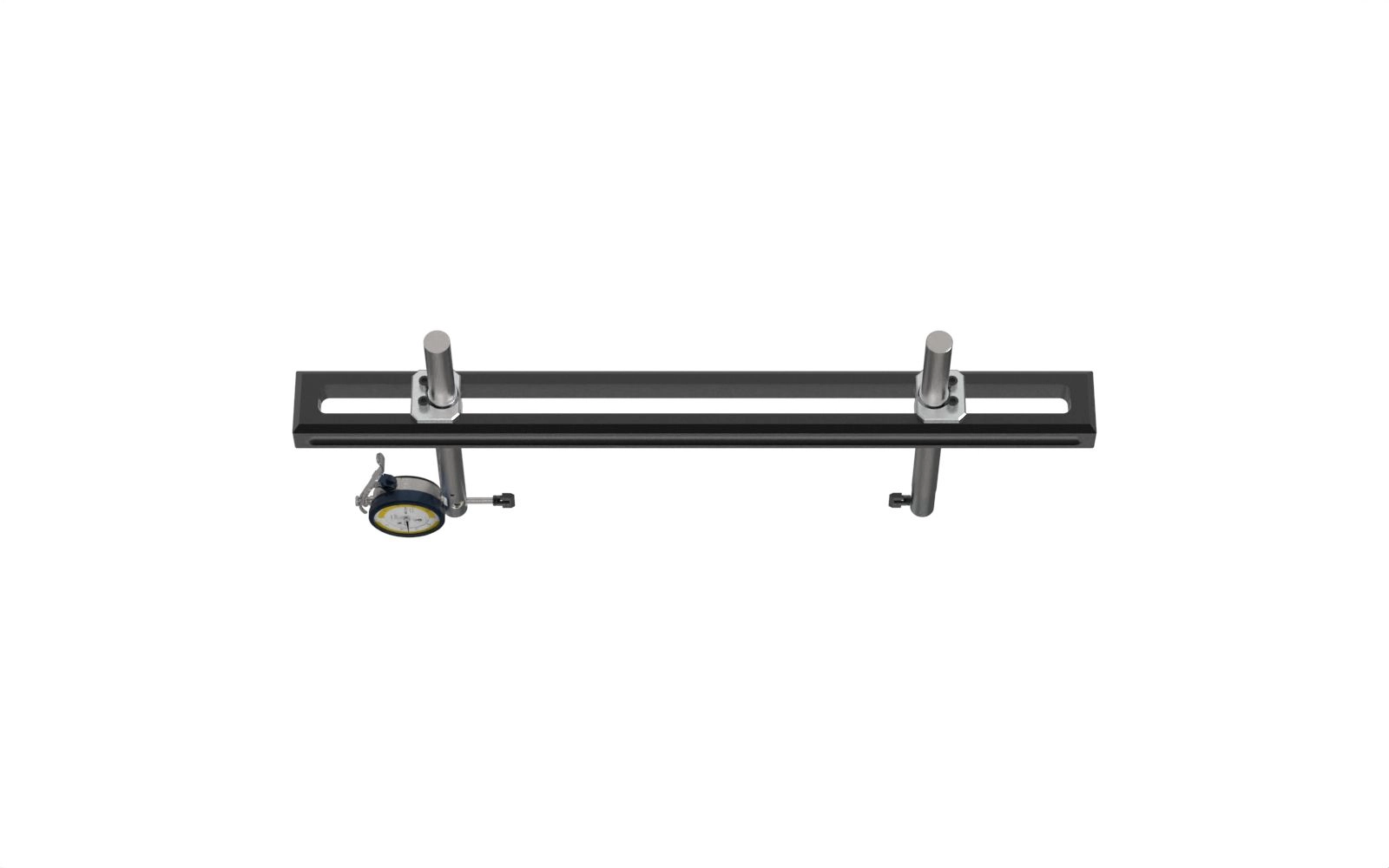

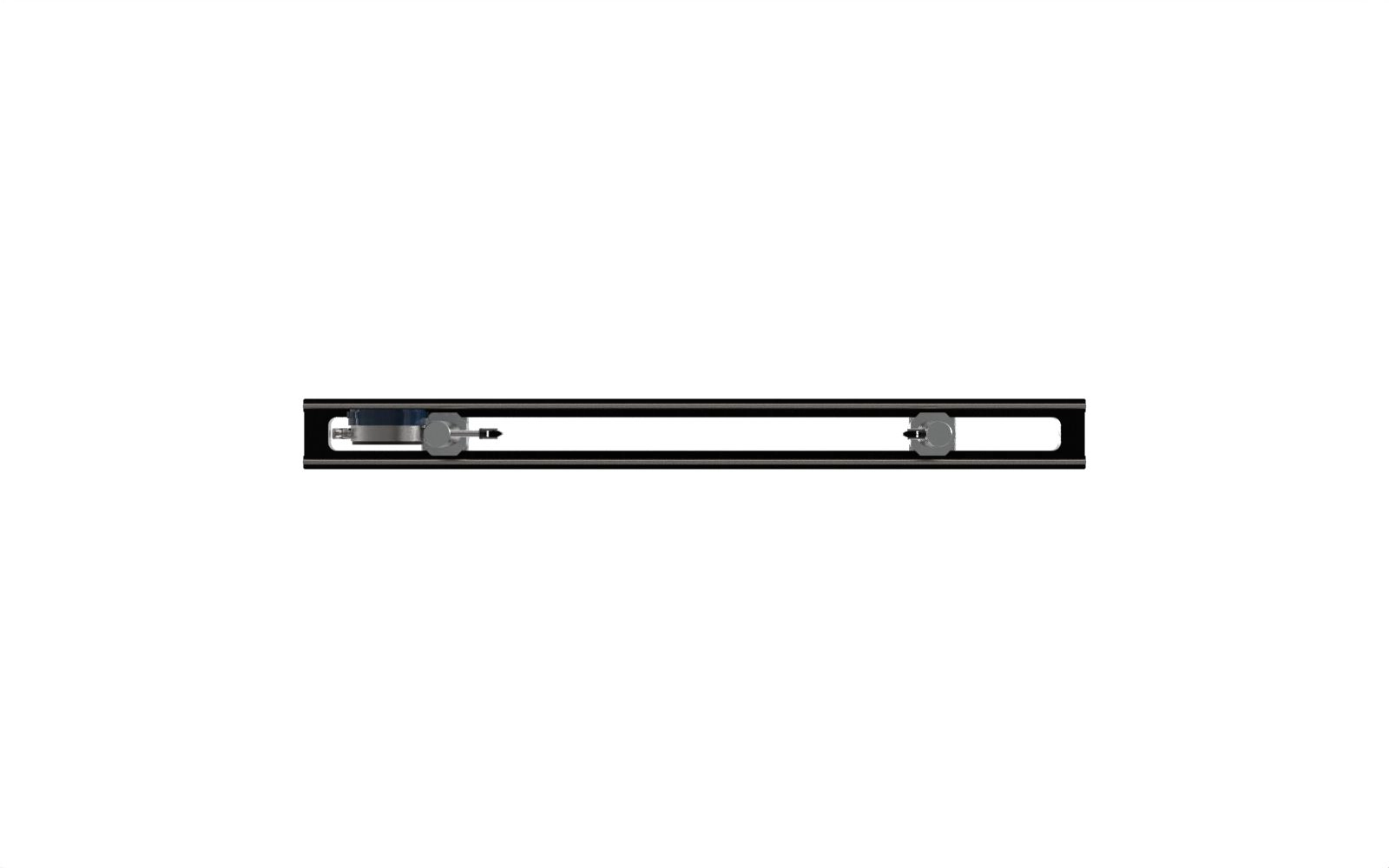

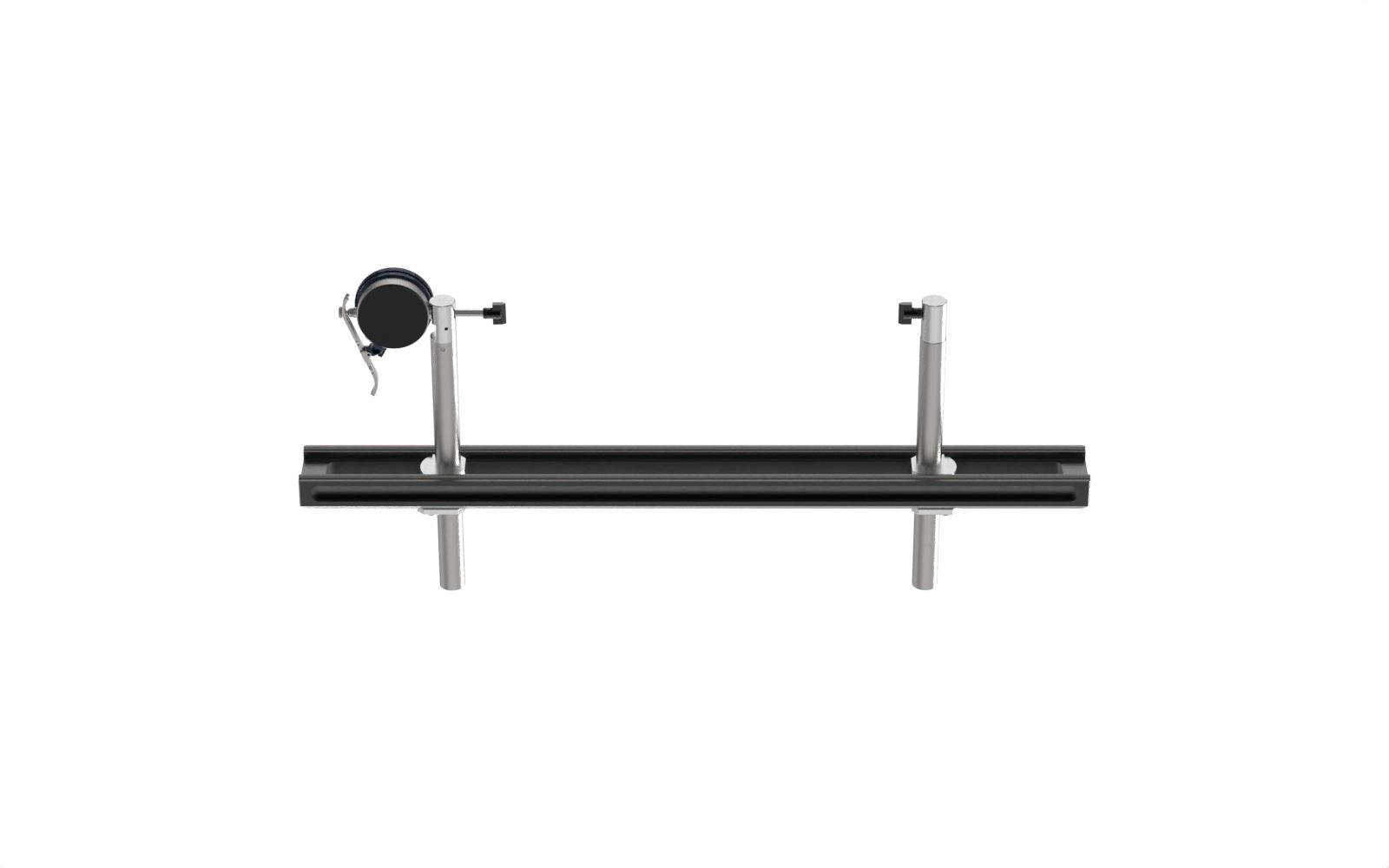

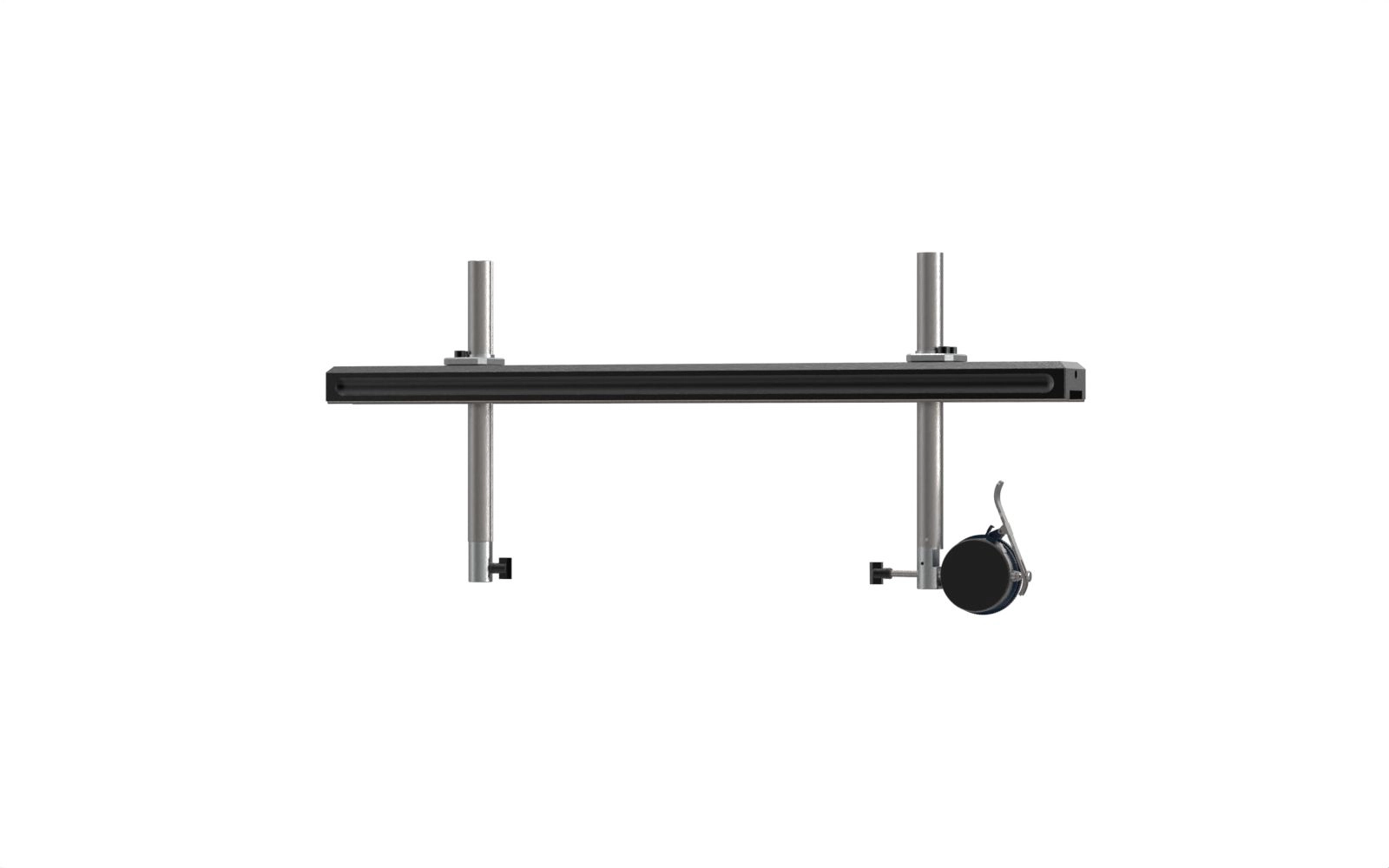

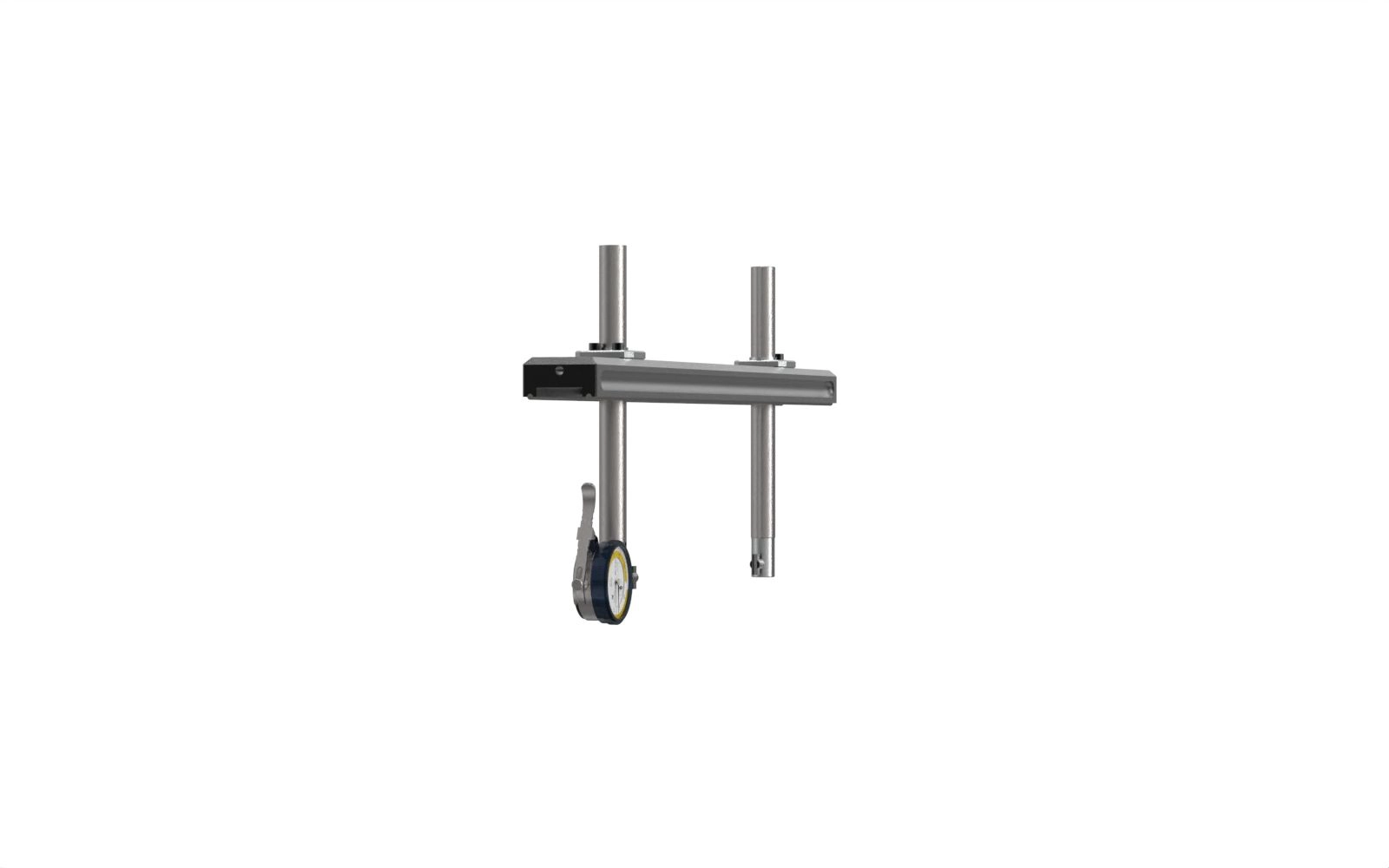

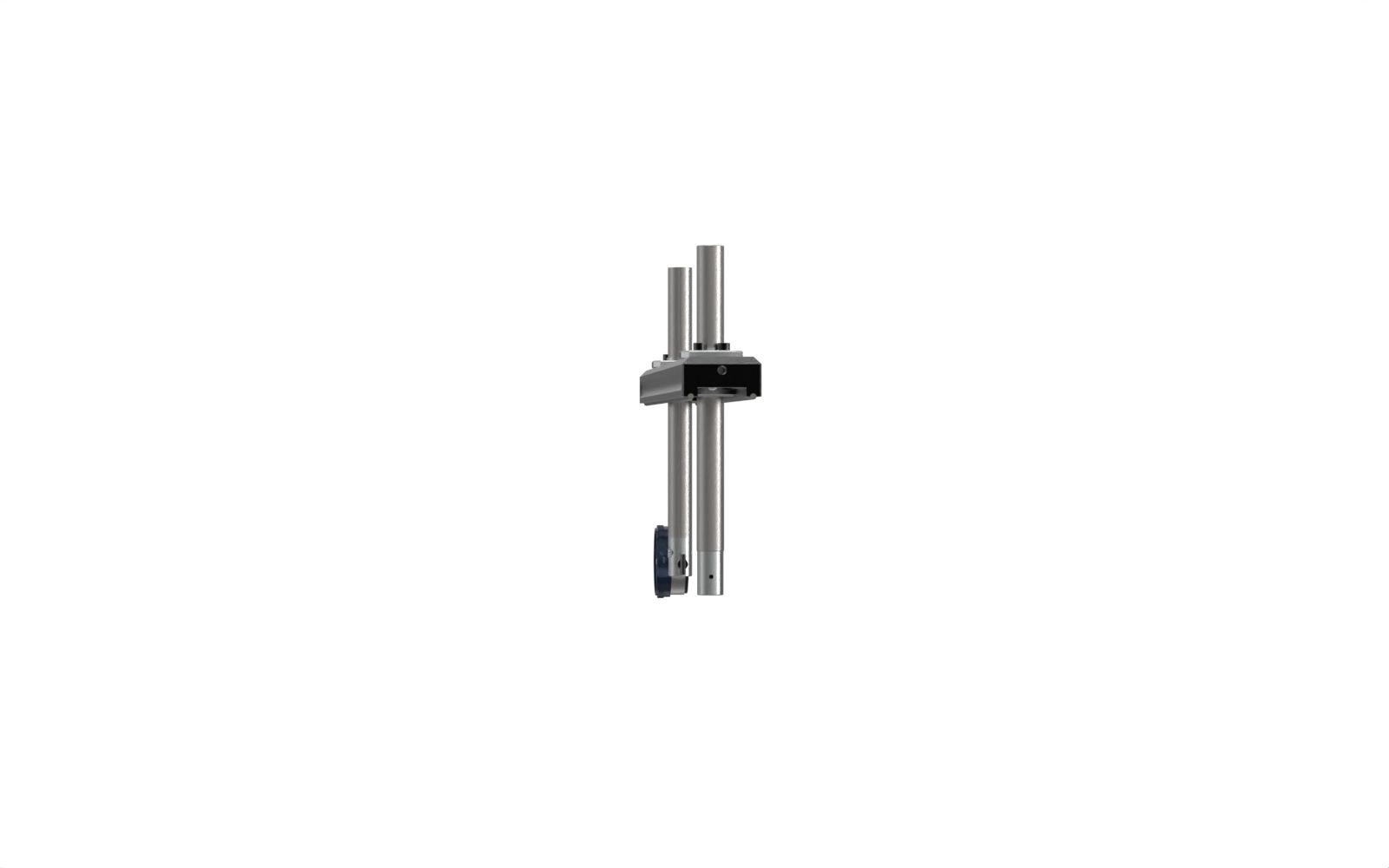

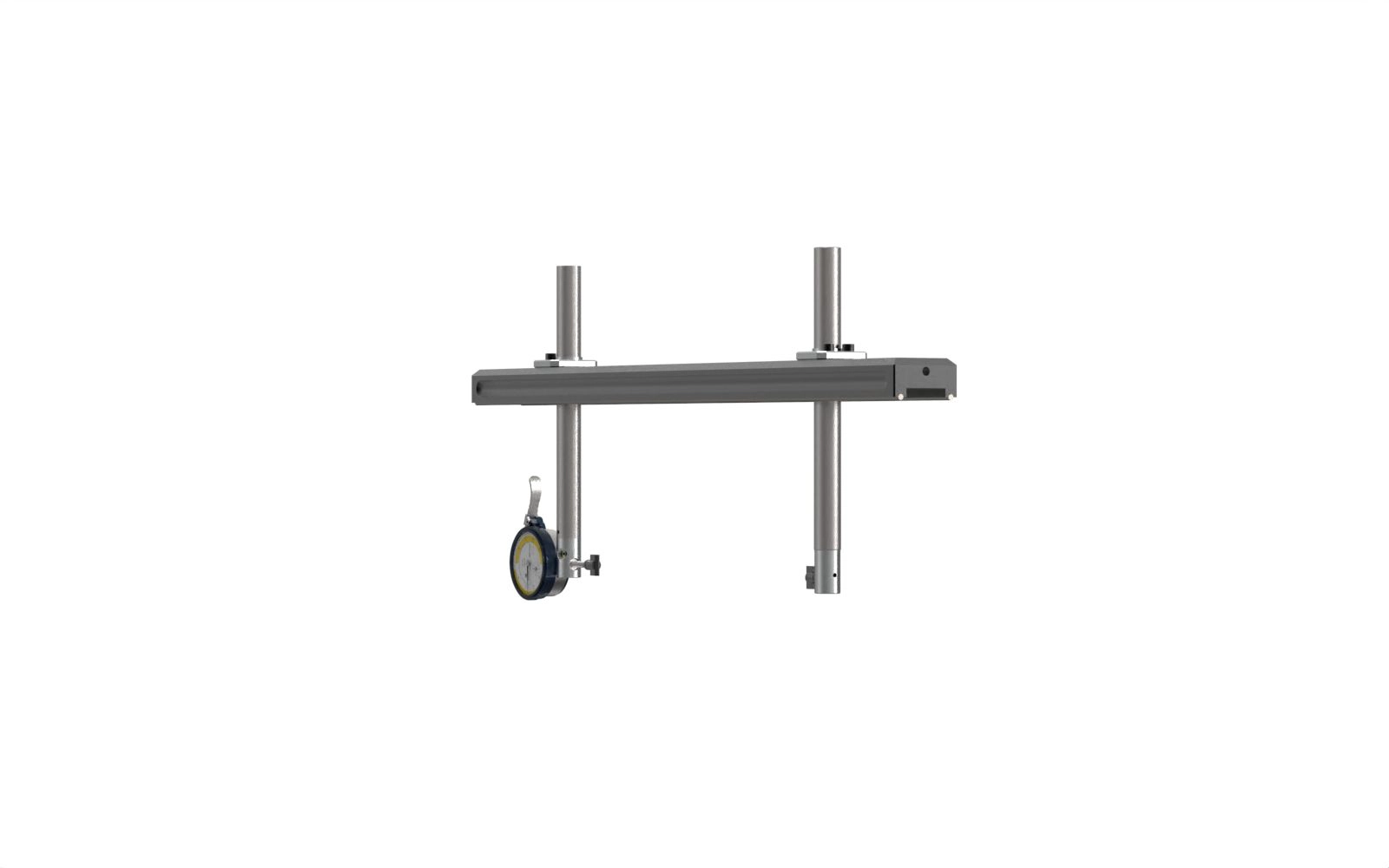

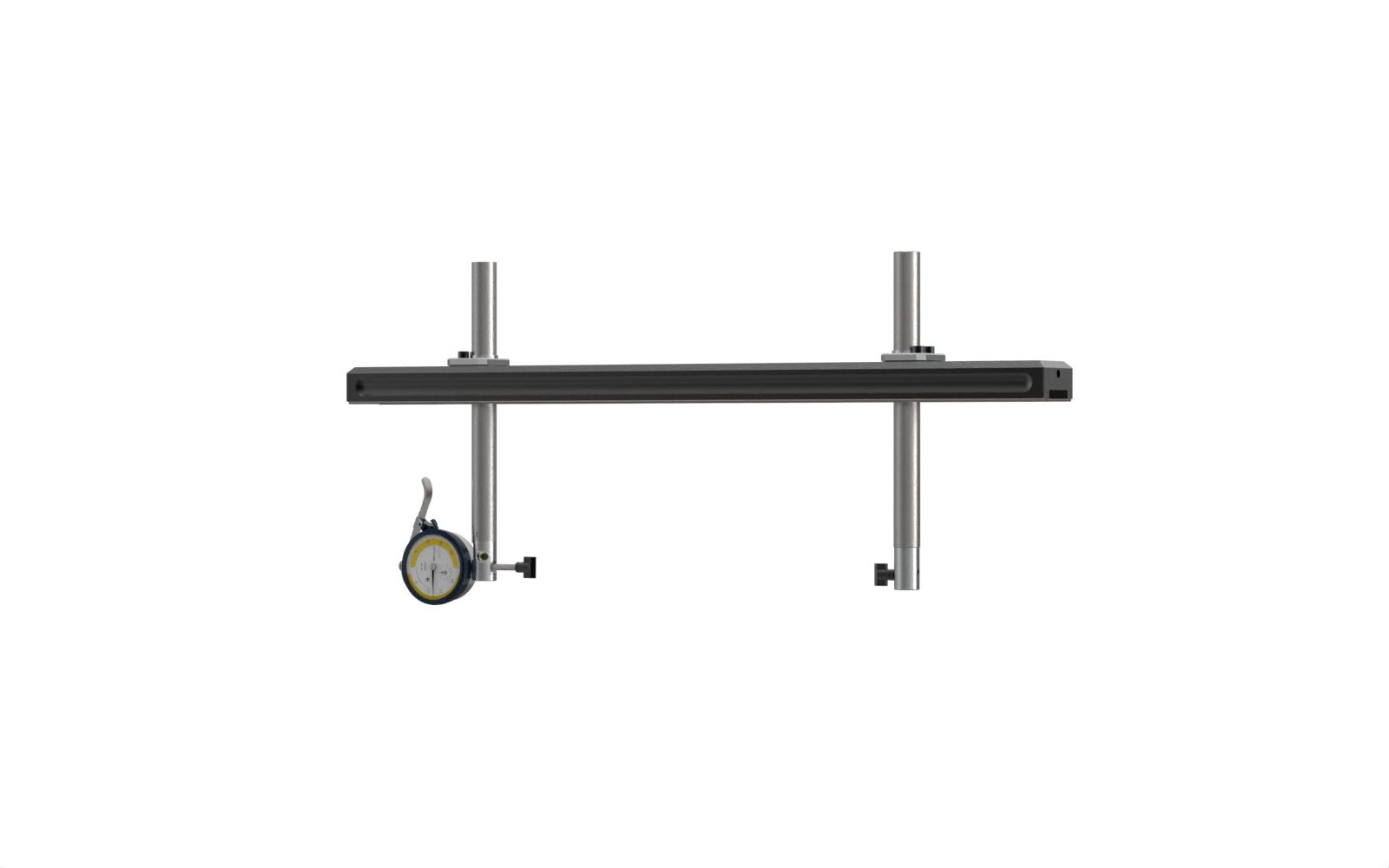

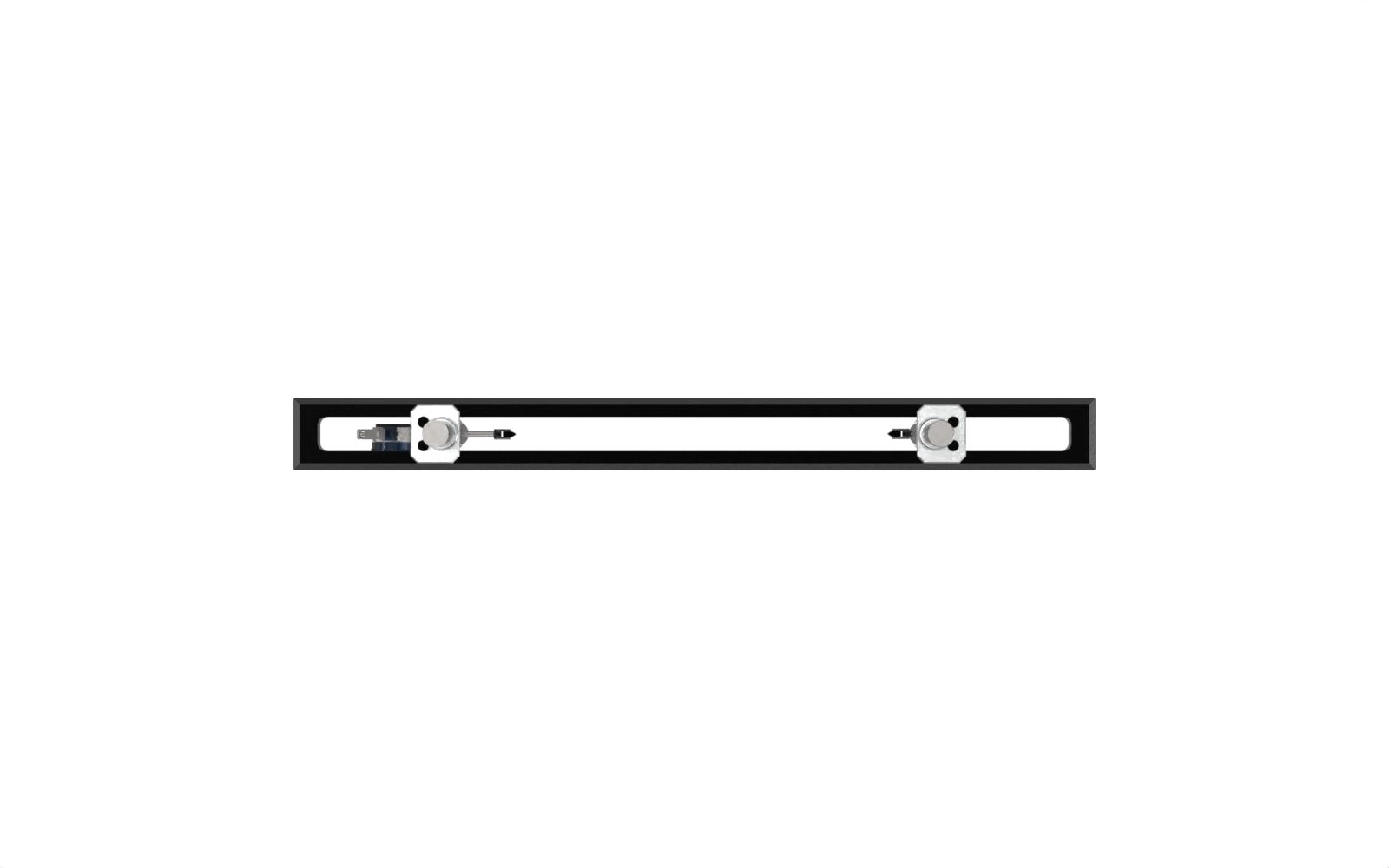

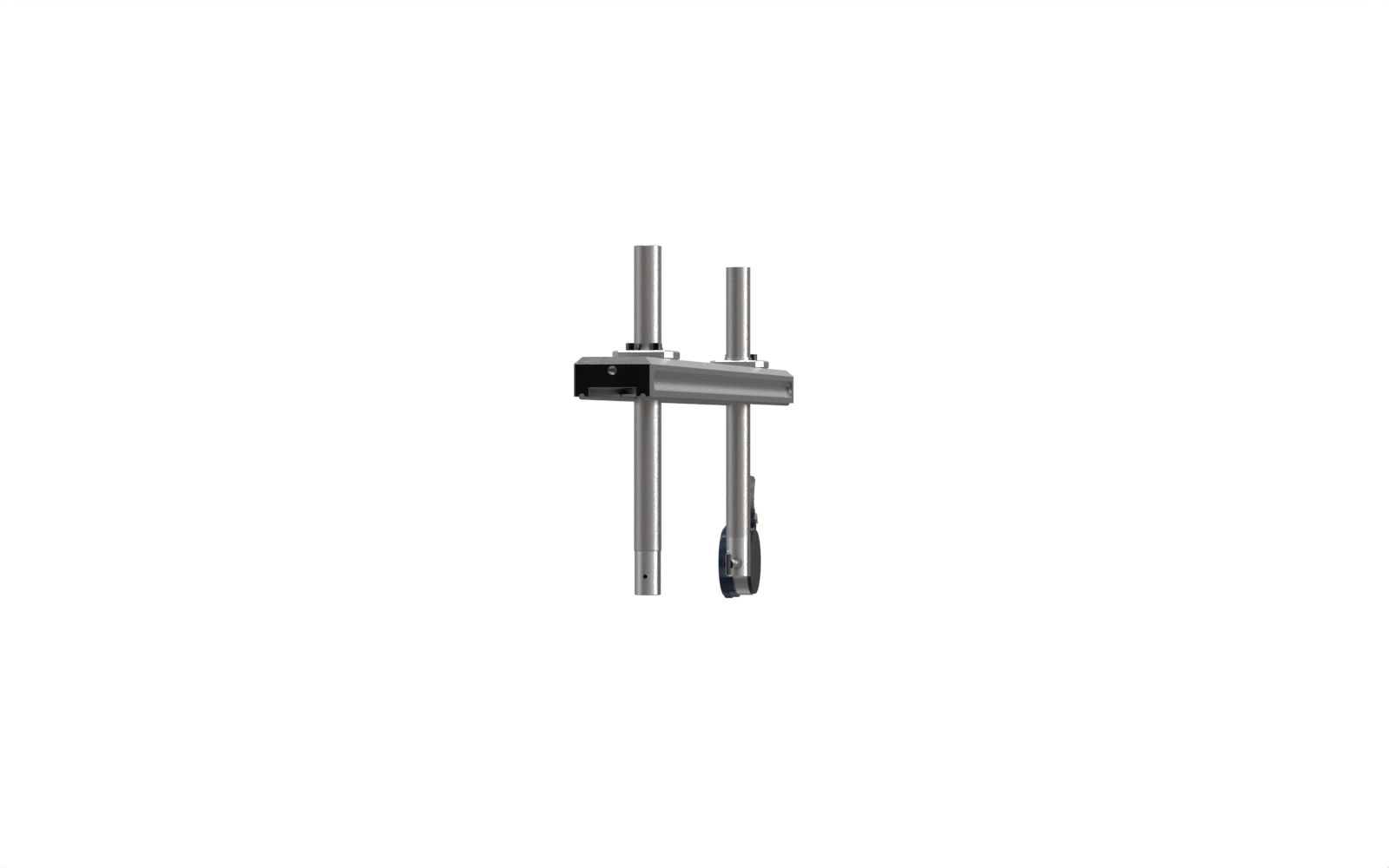

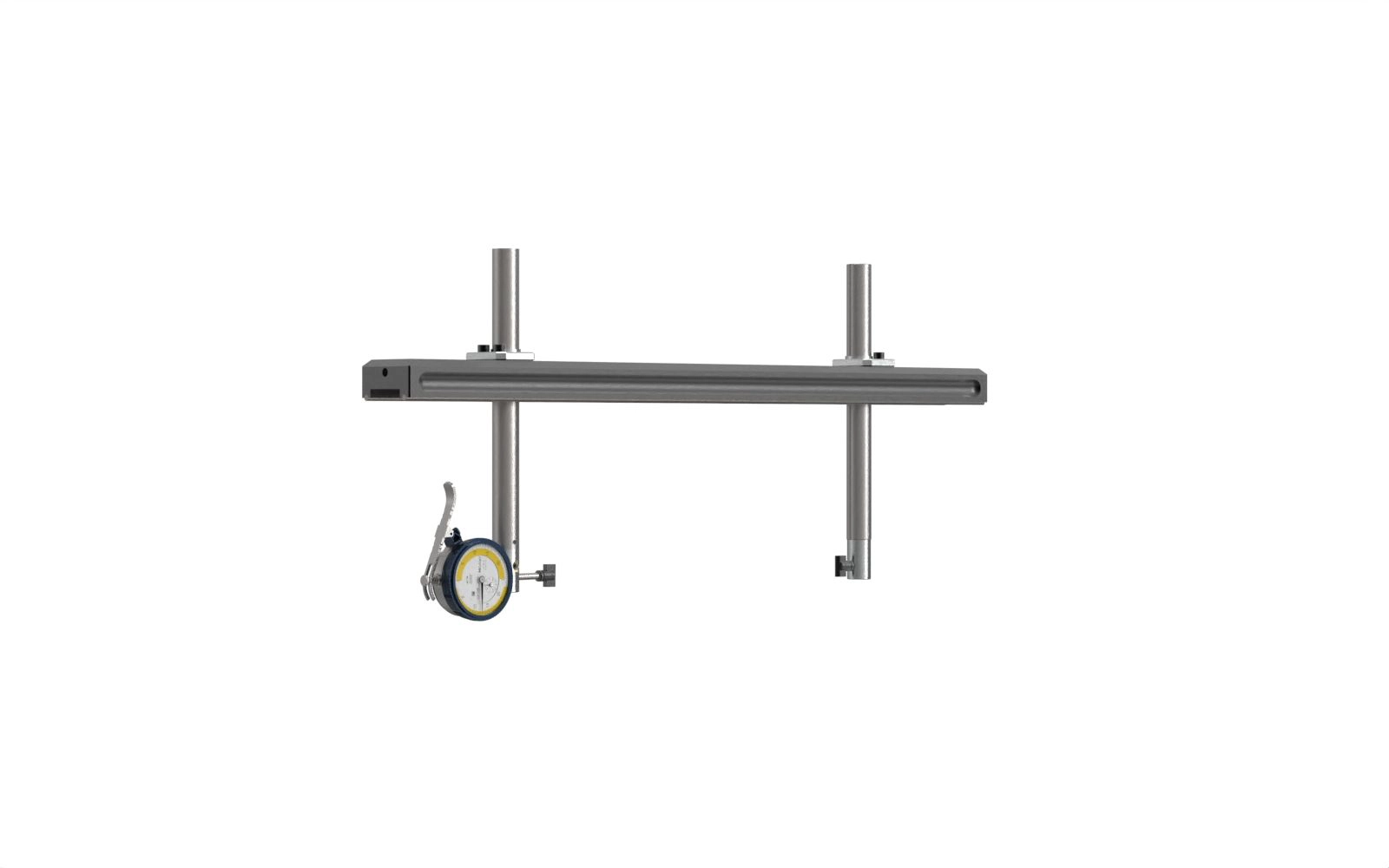

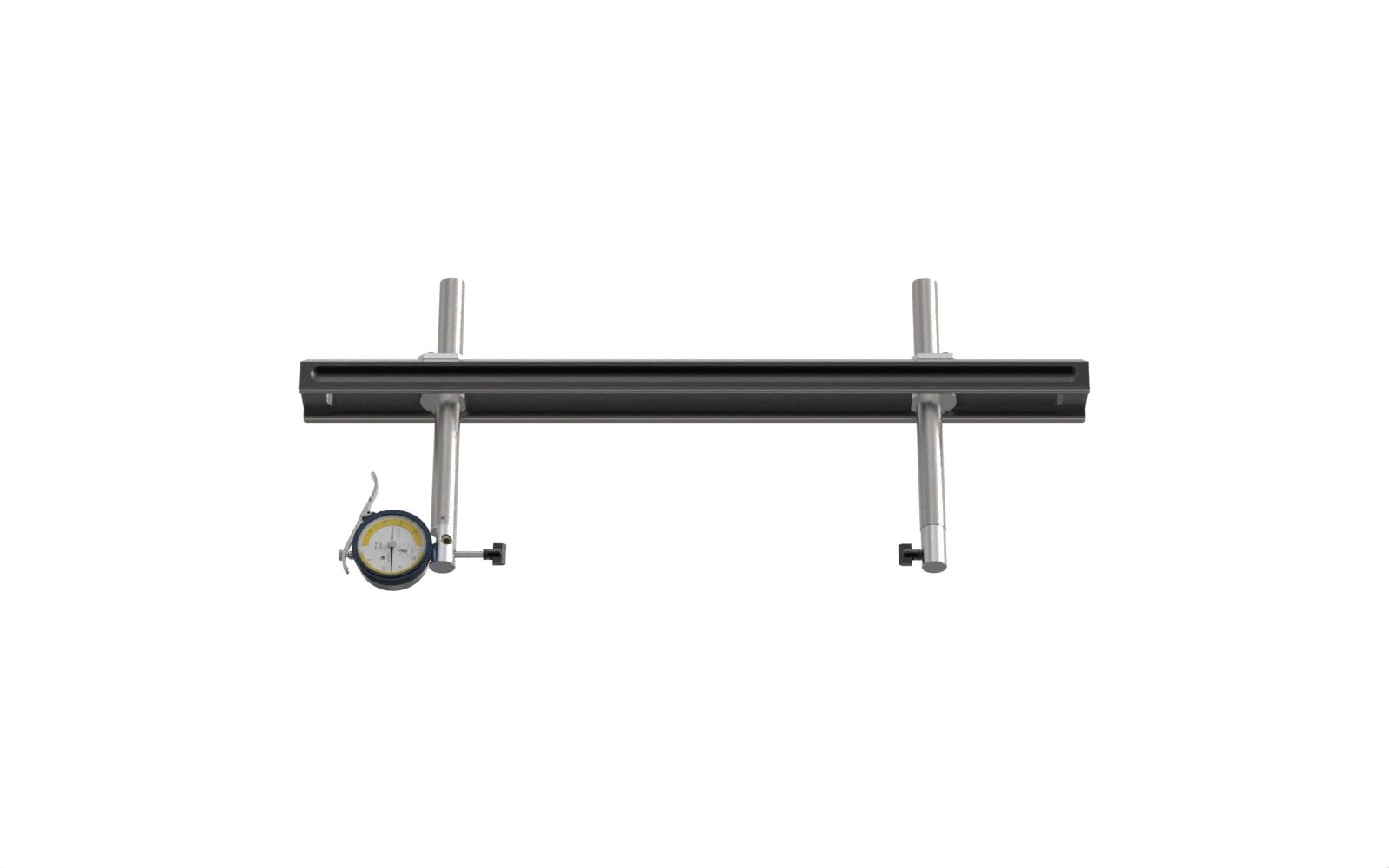

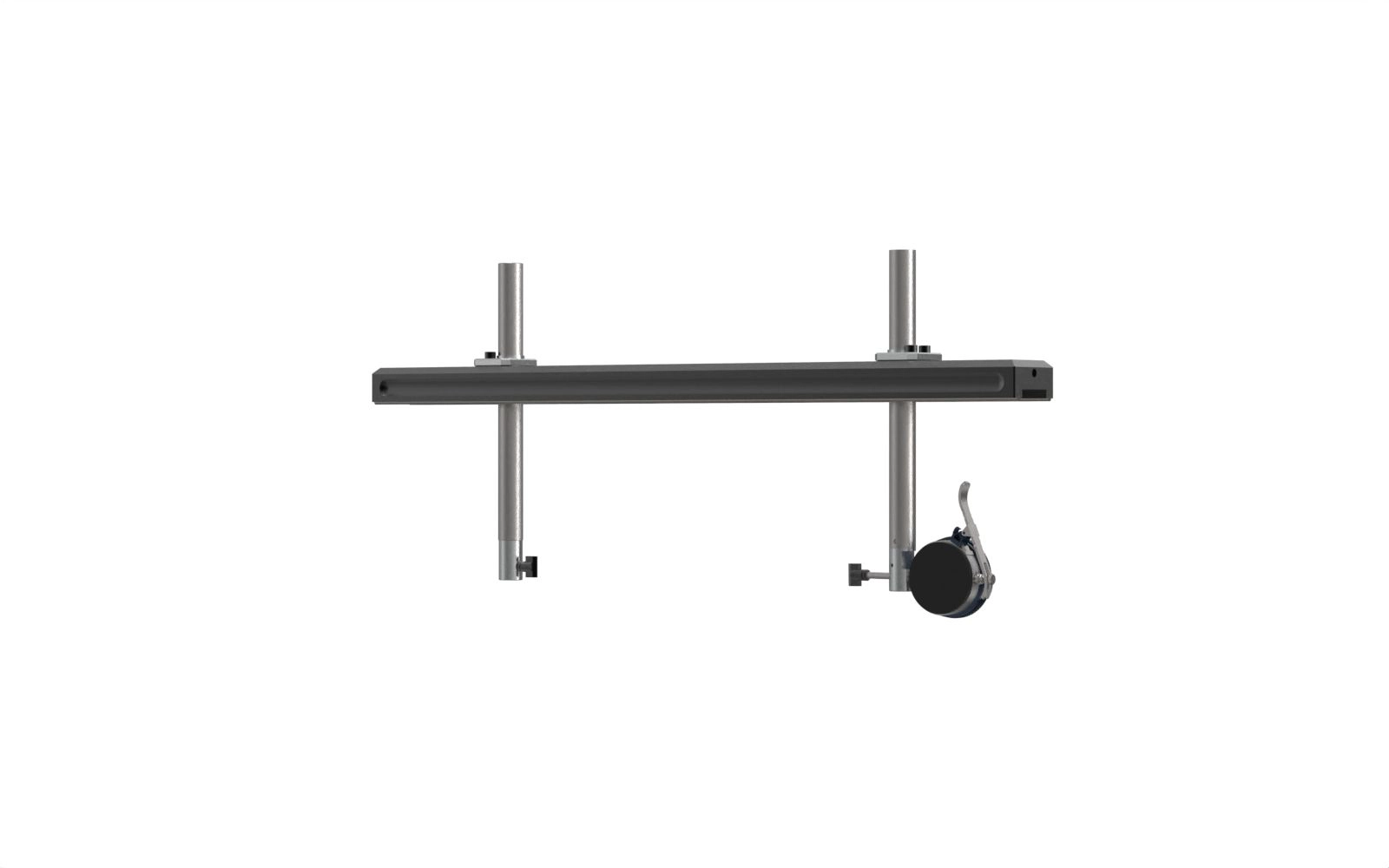

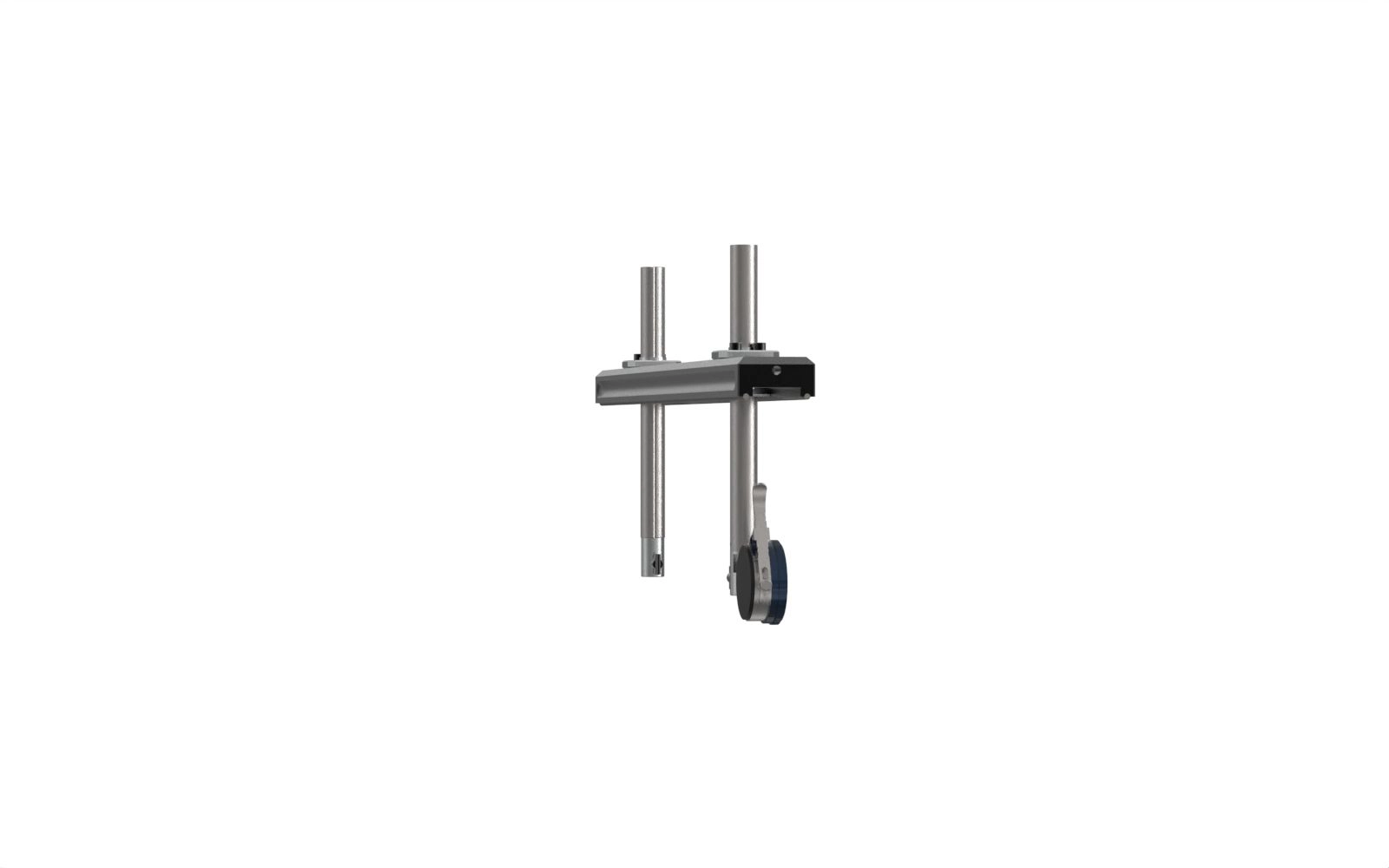

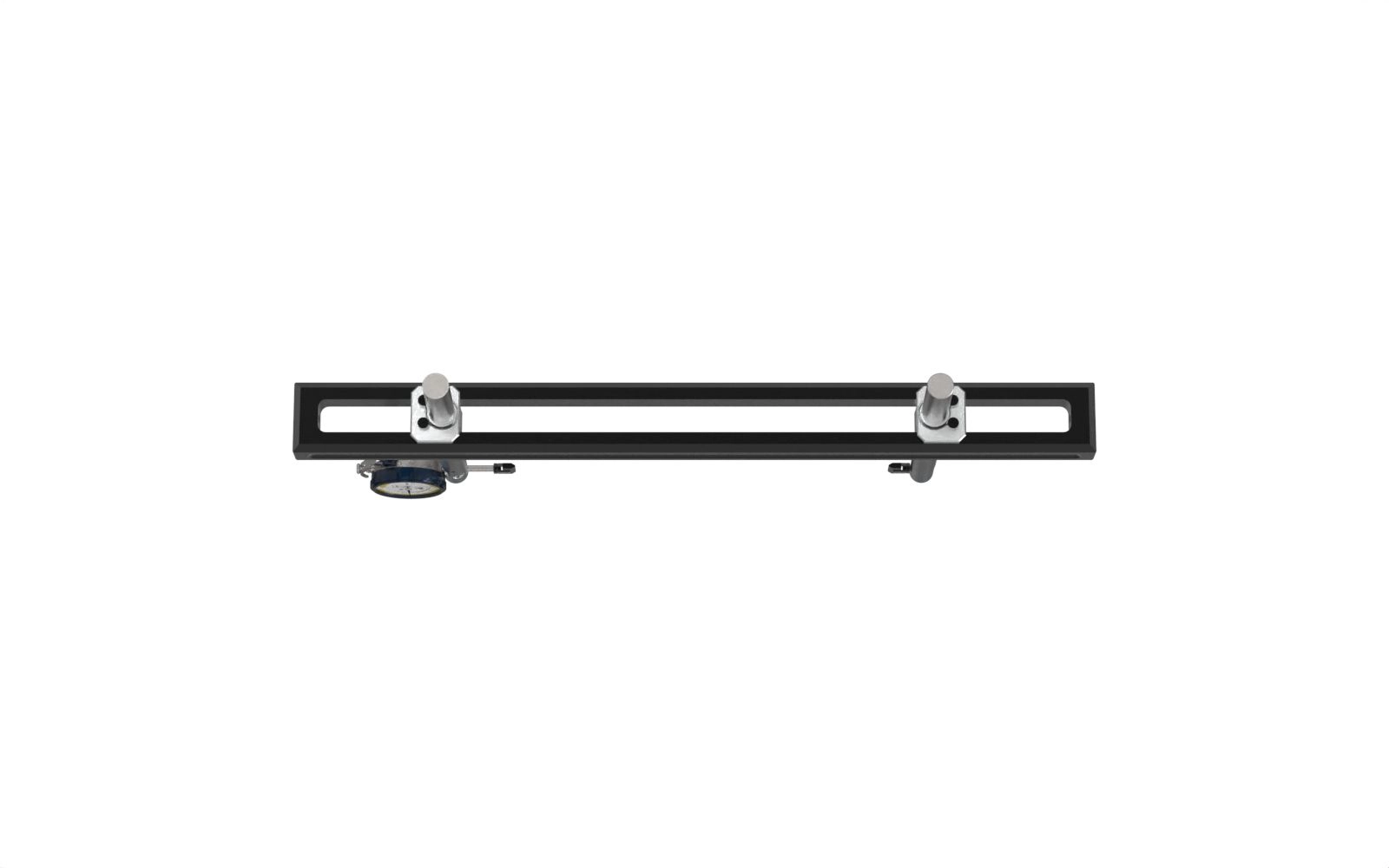

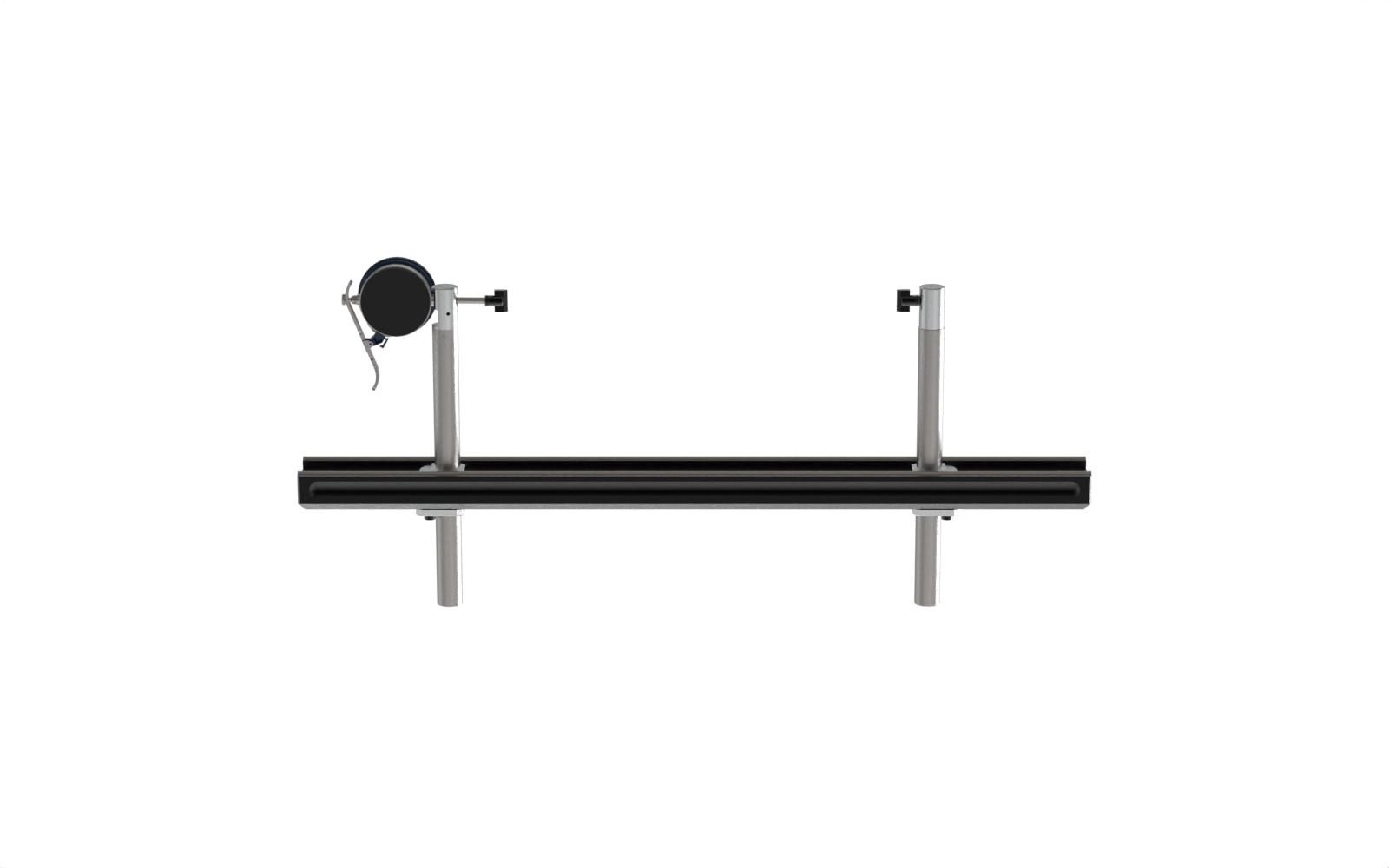

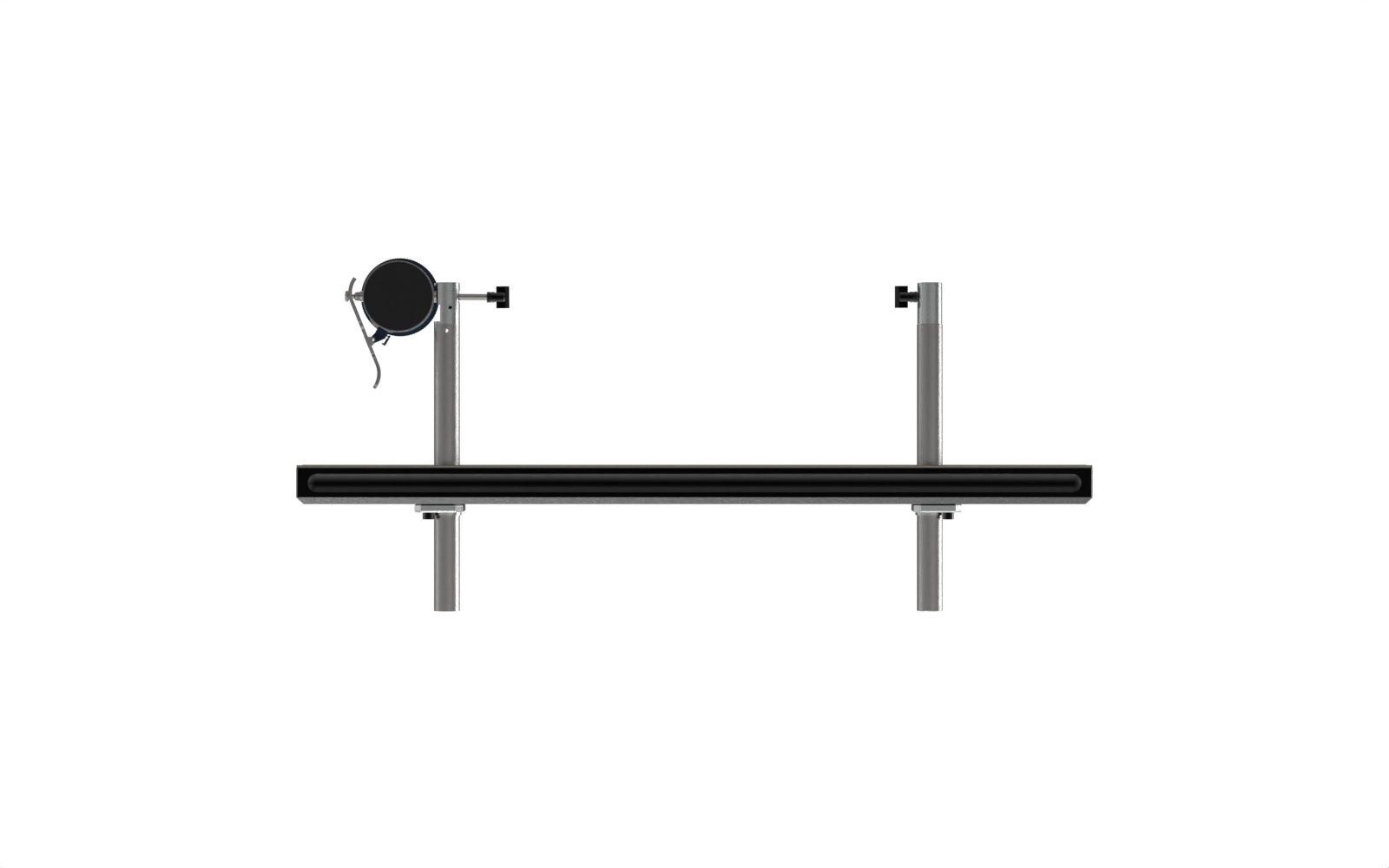

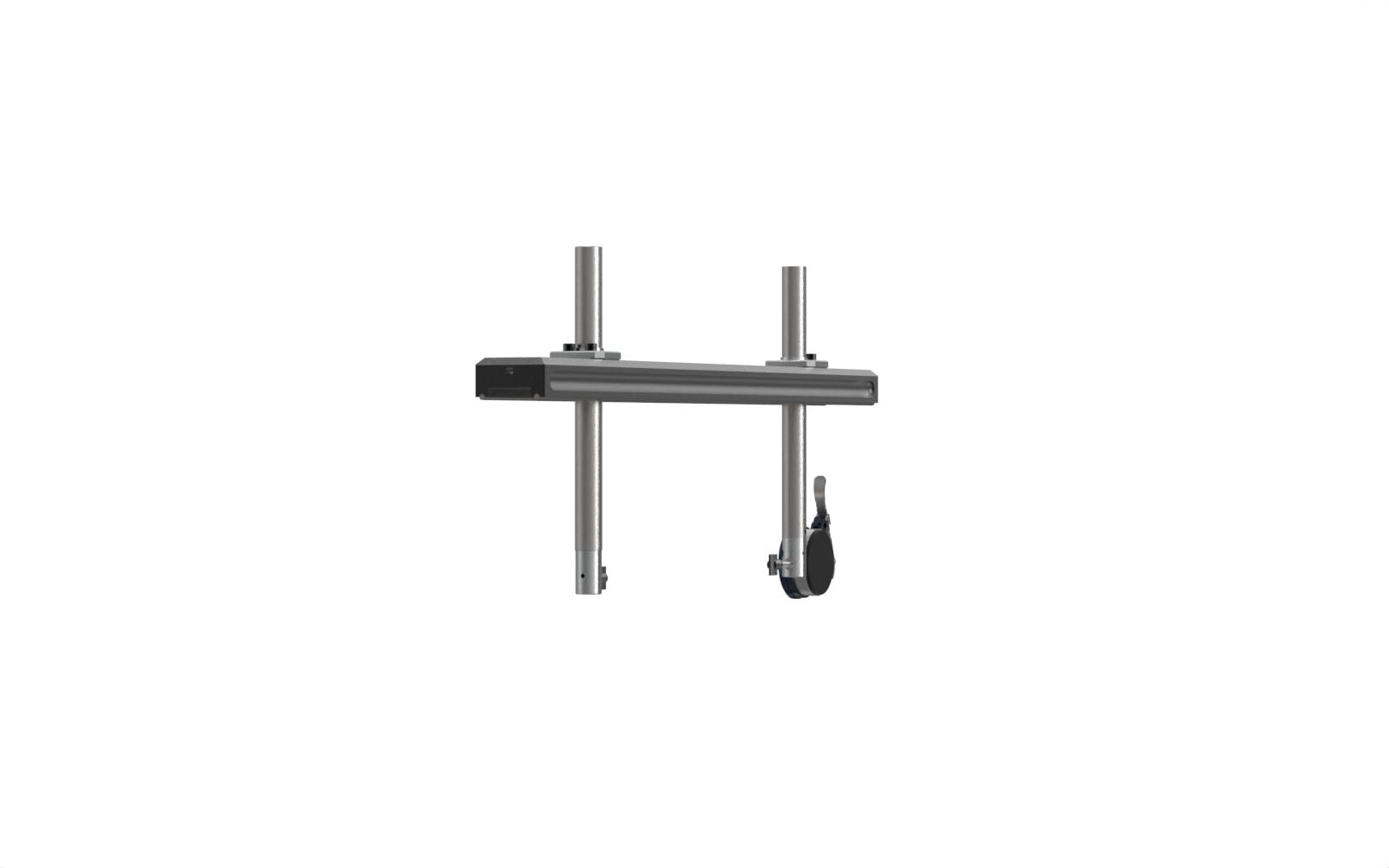

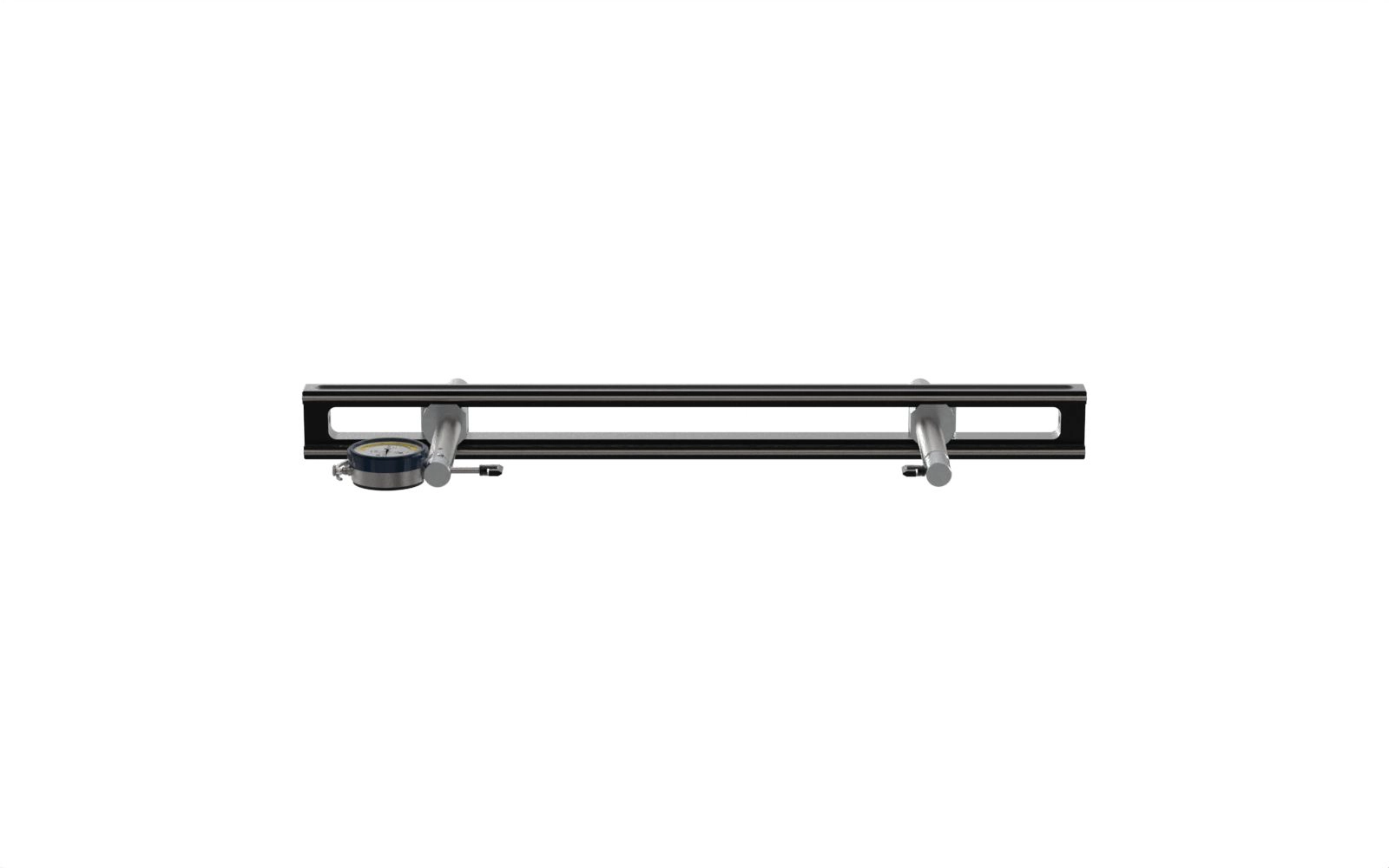

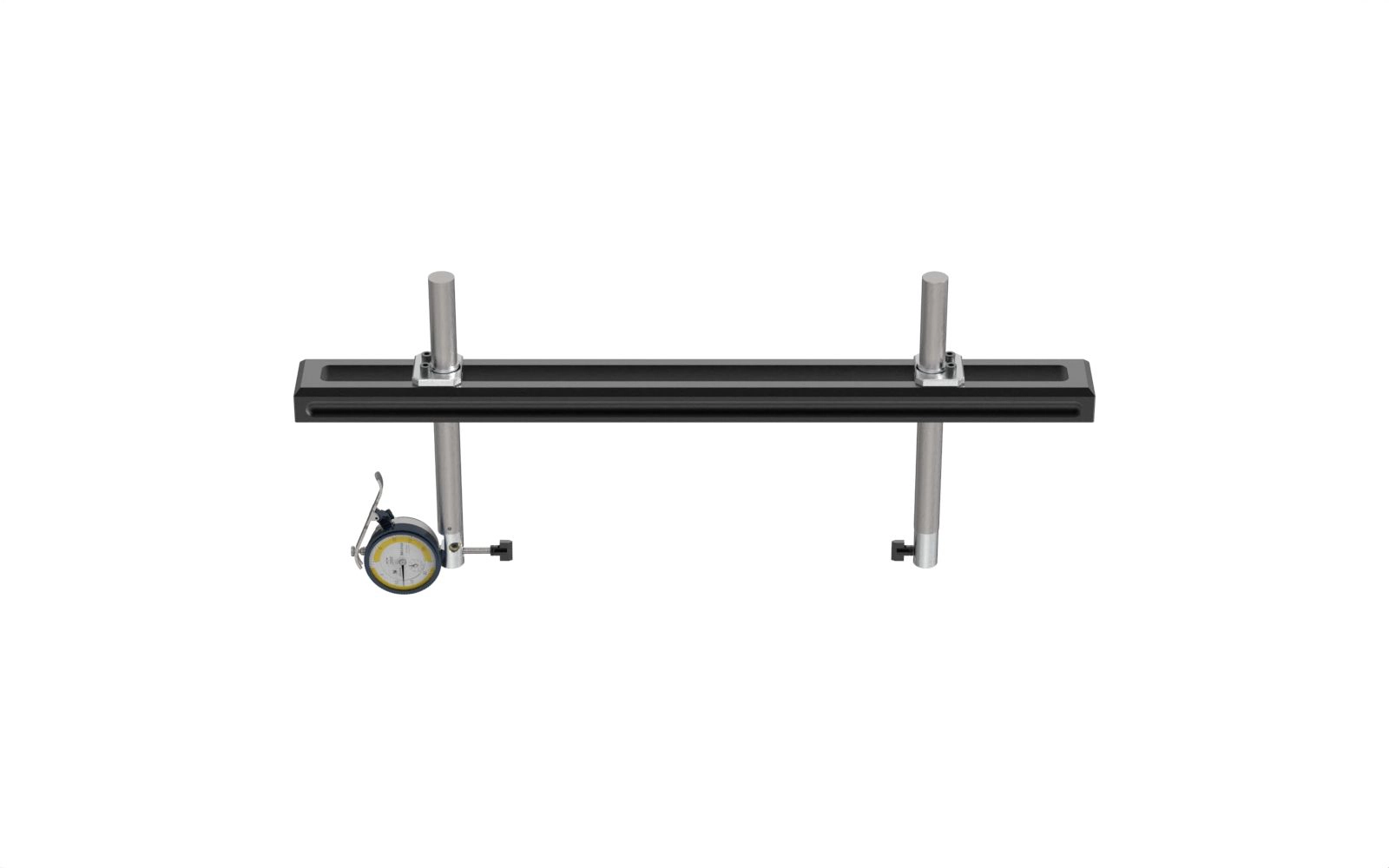

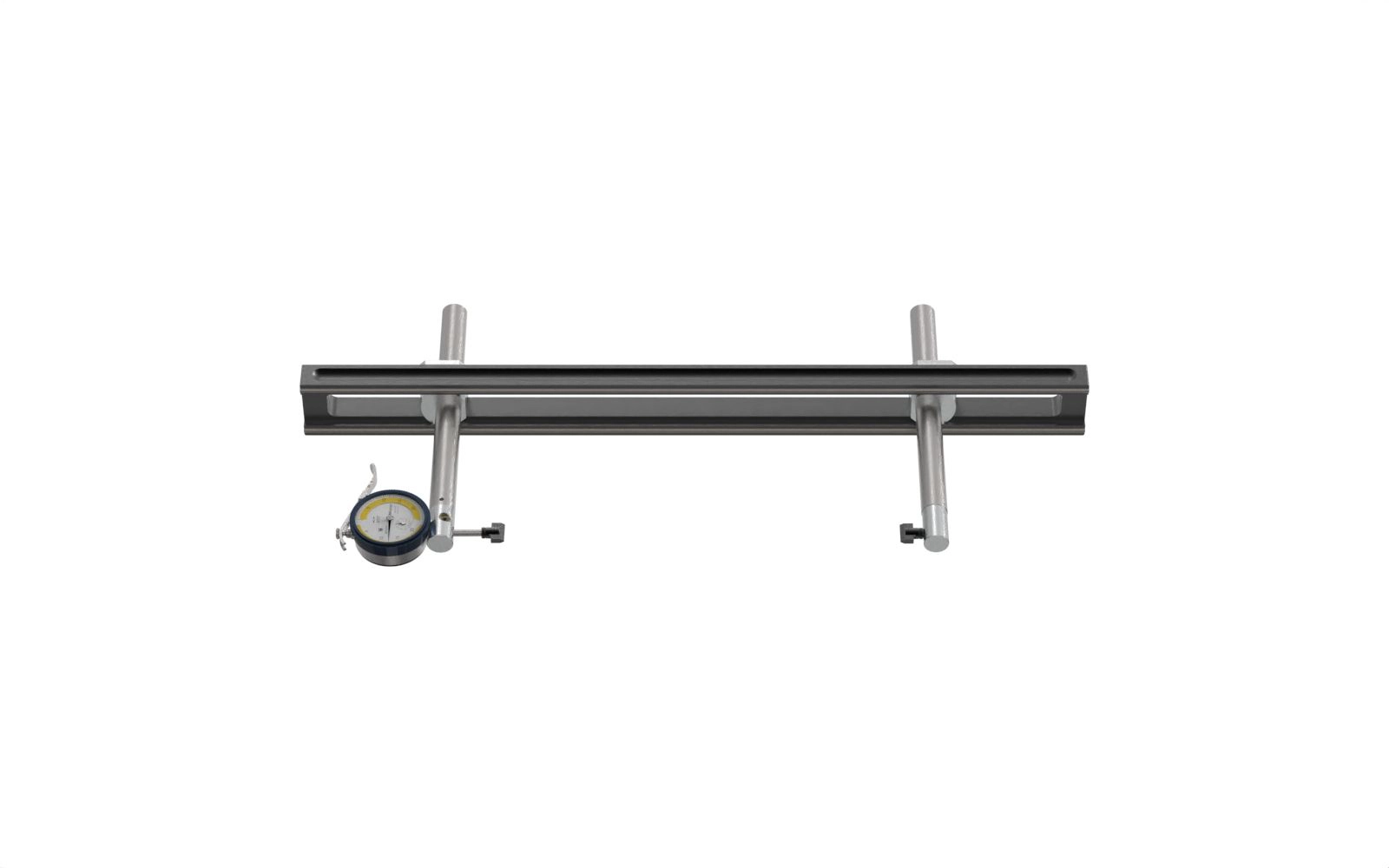

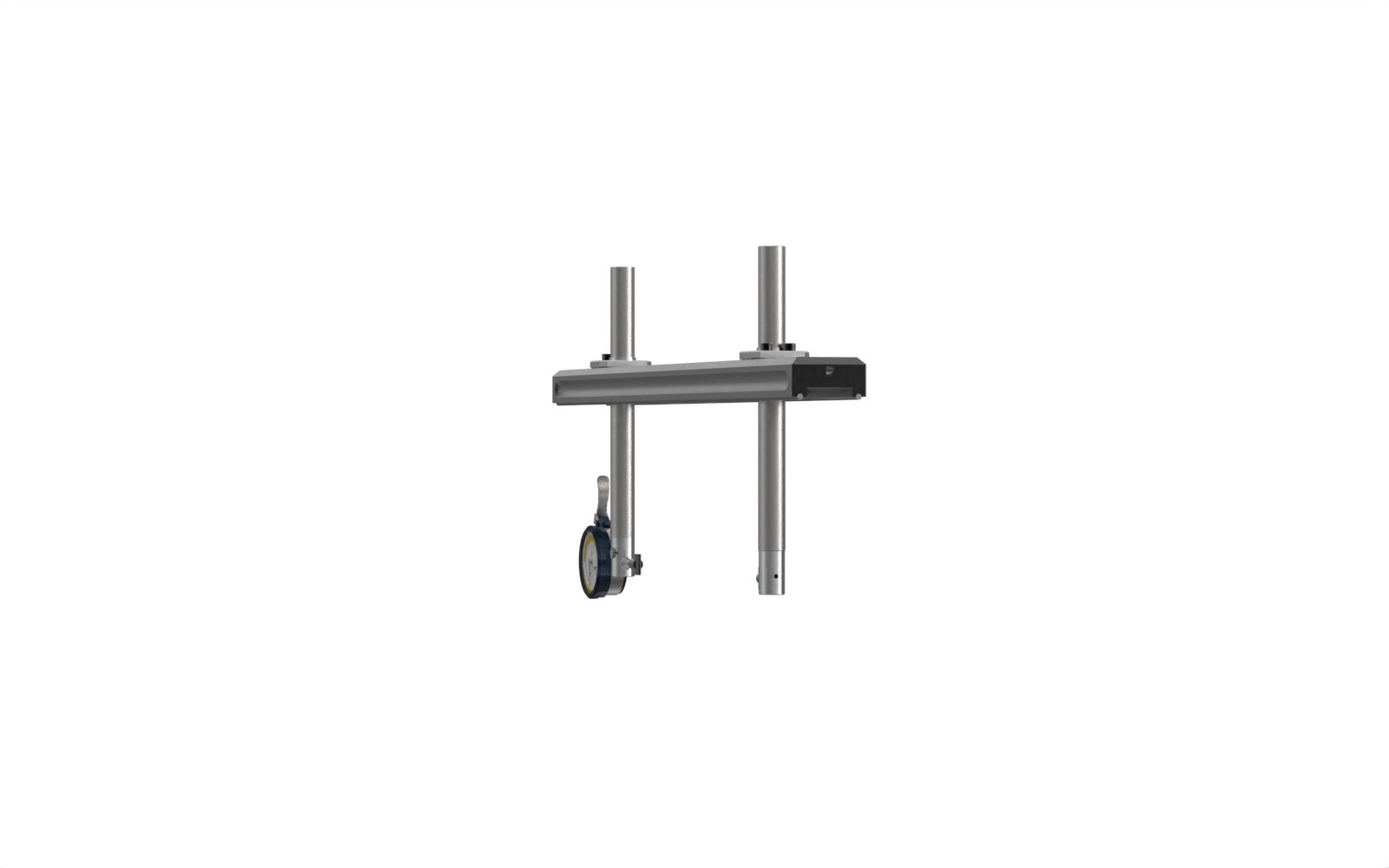

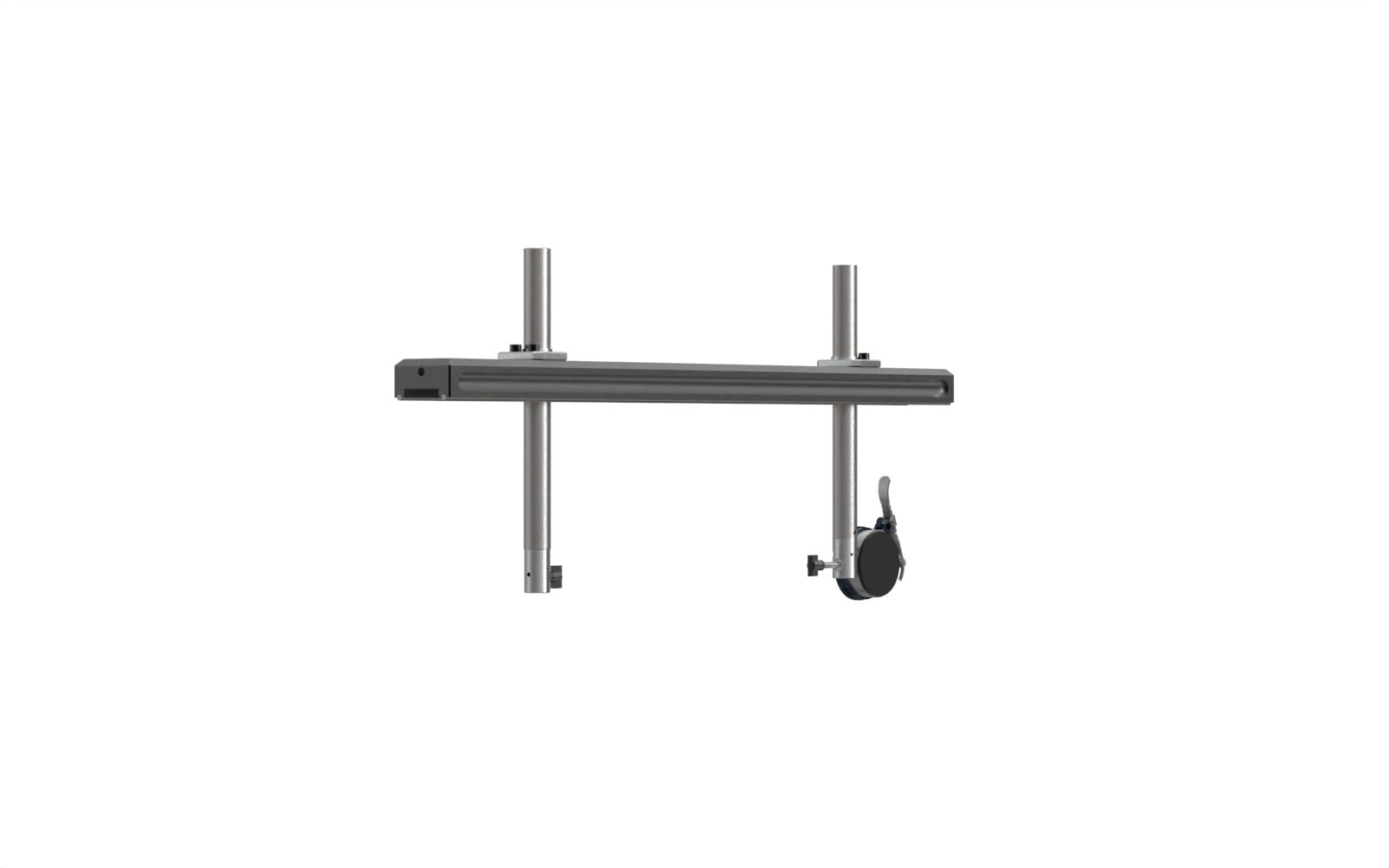

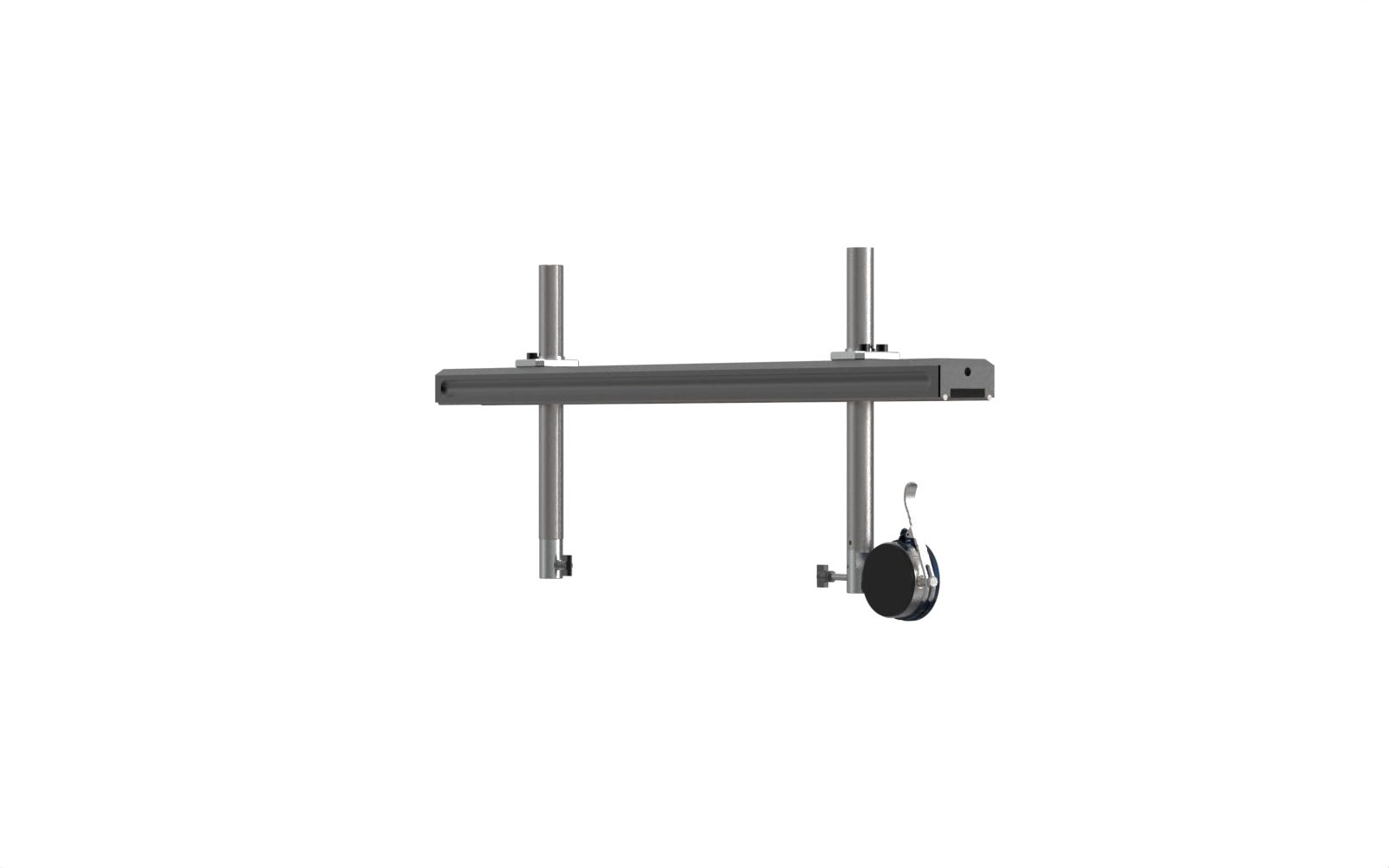

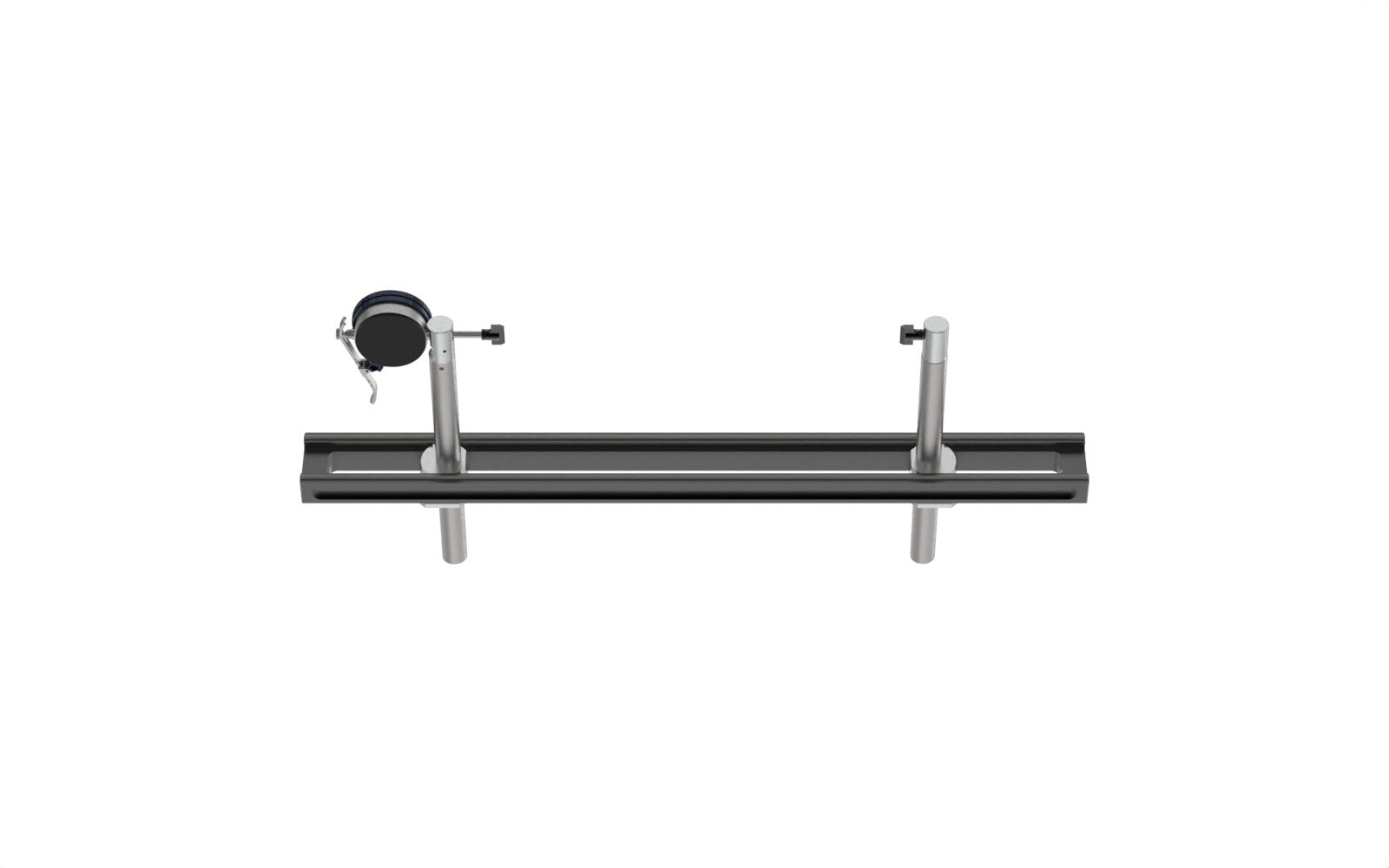

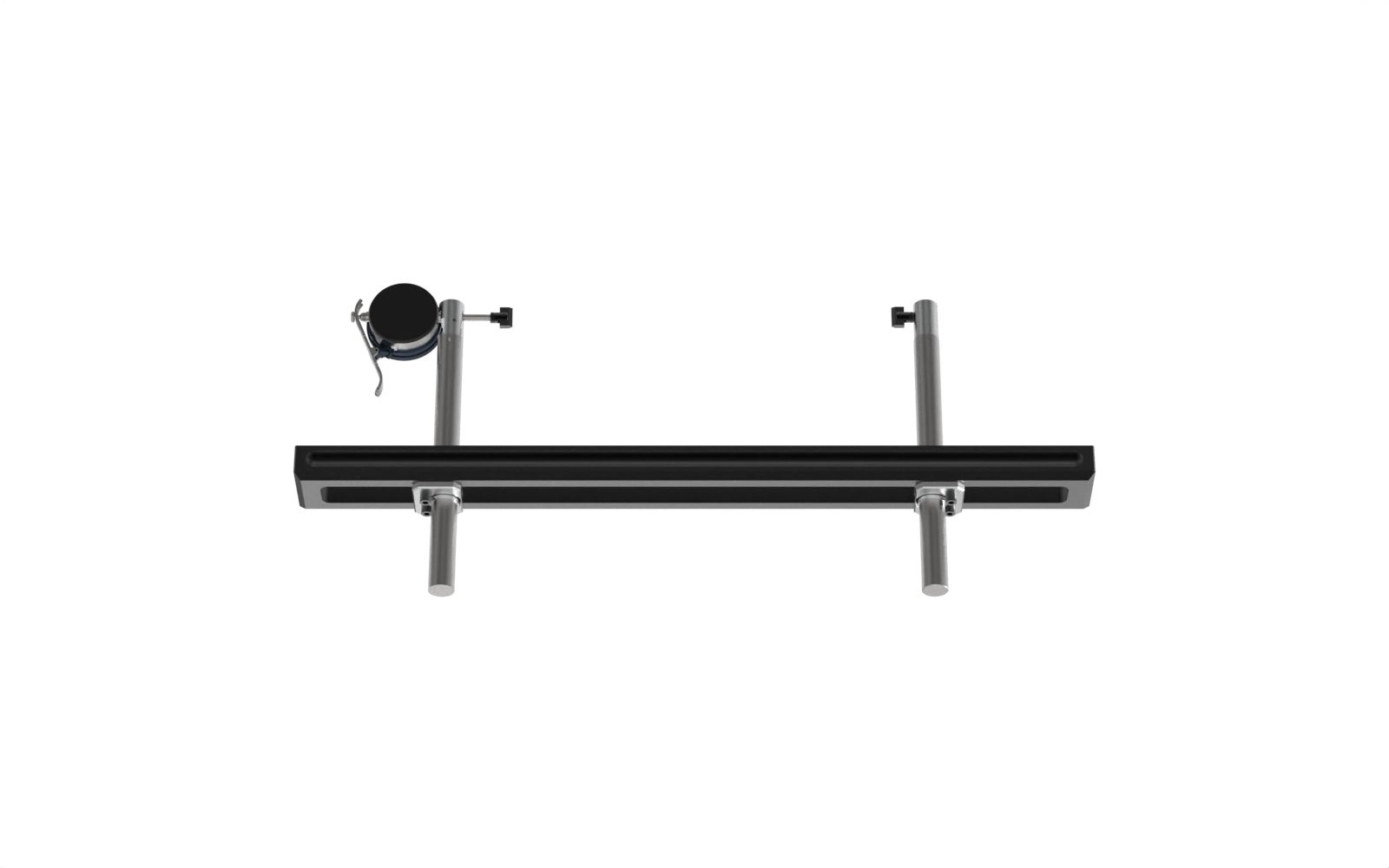

Visualization 360º 200MDC1358MD-7 PIN

Drag the cursor horizontally to view 360º

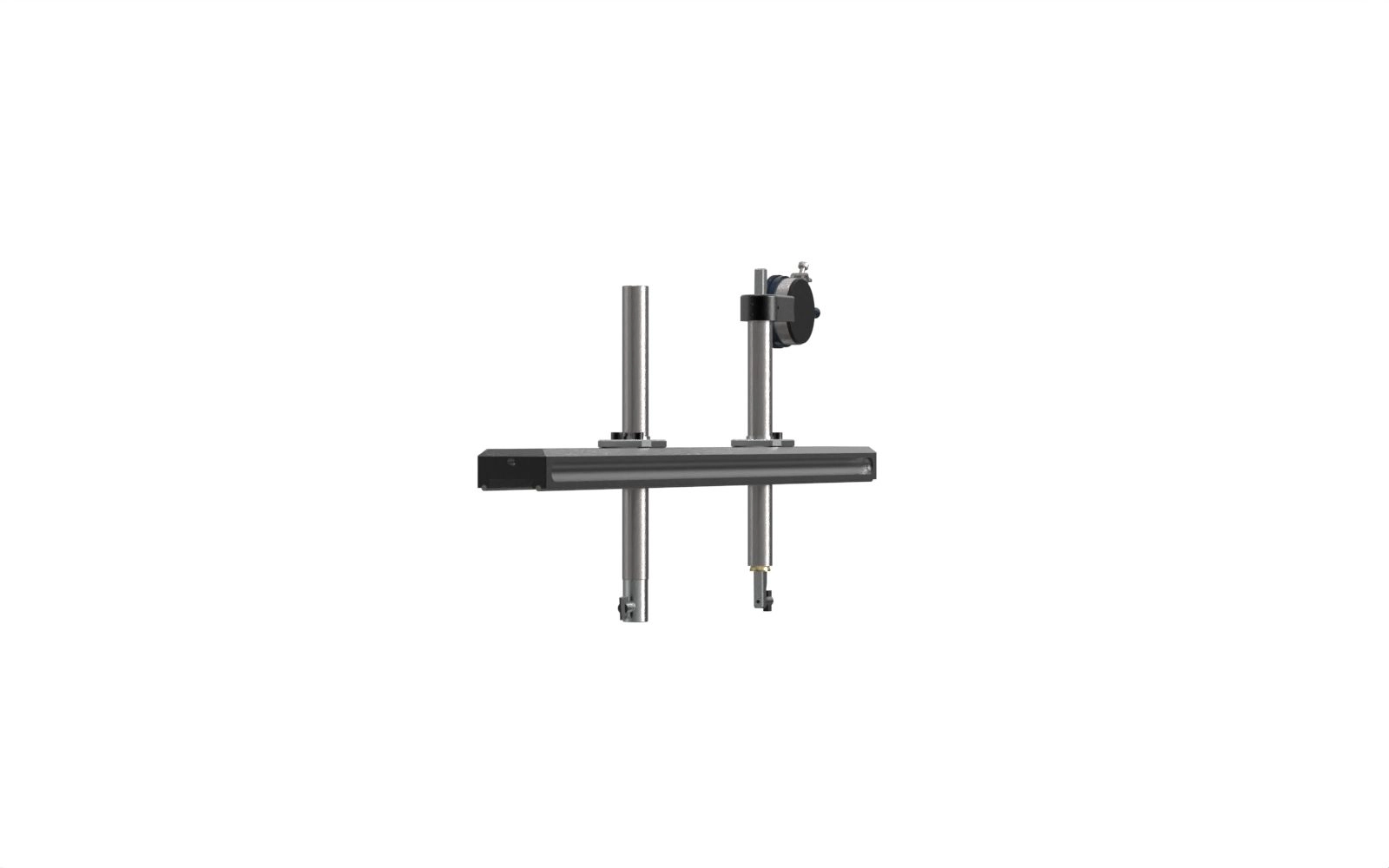

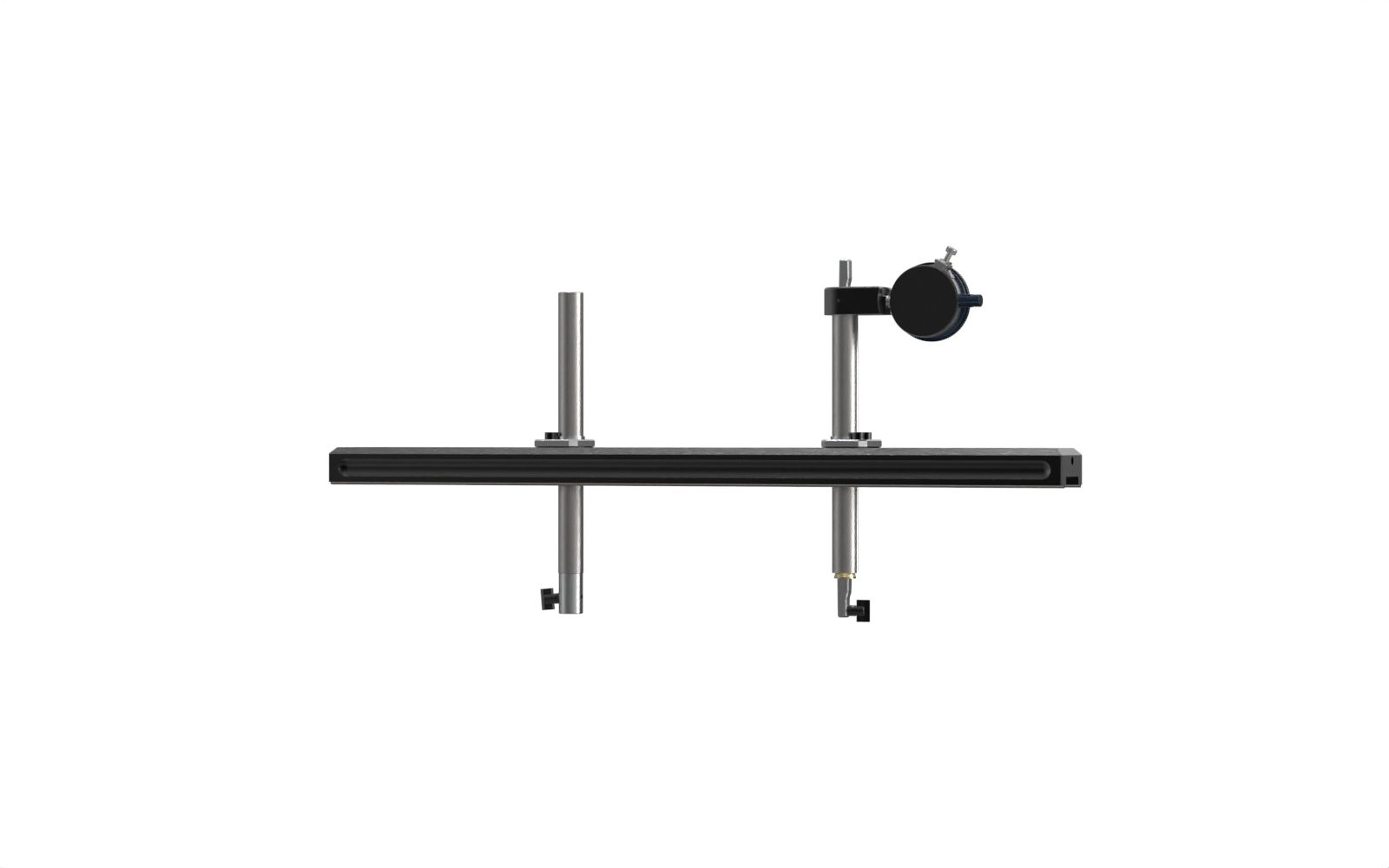

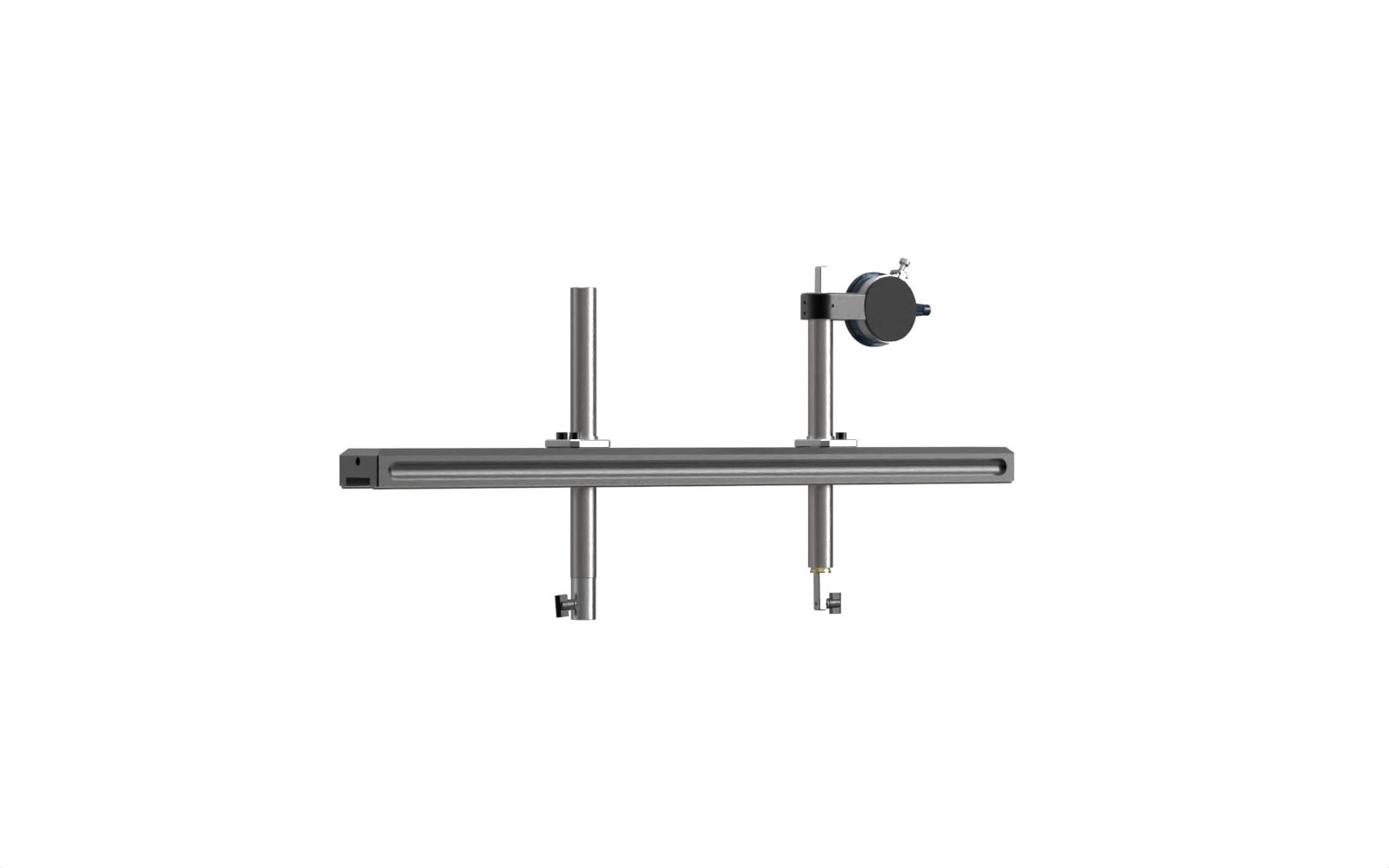

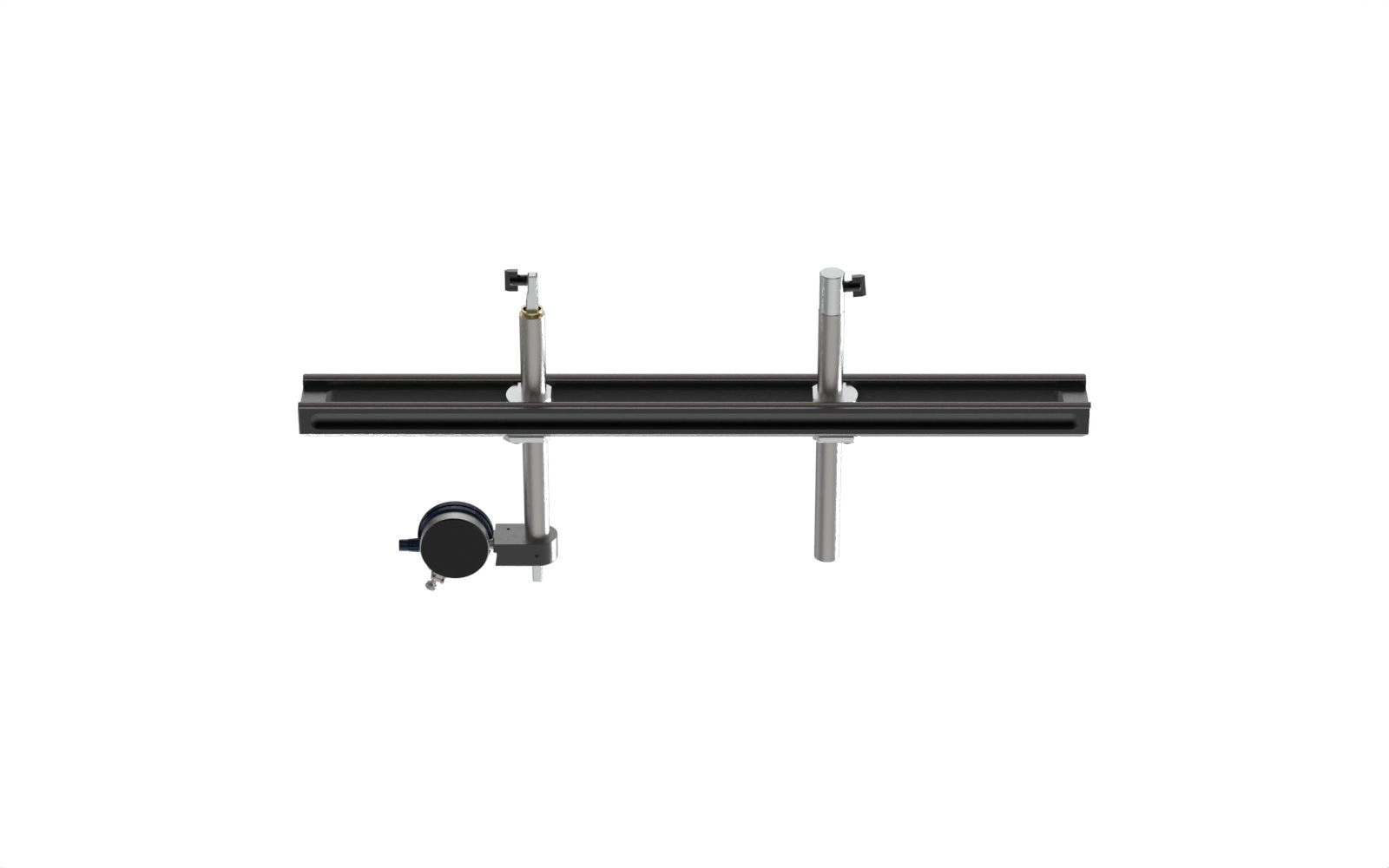

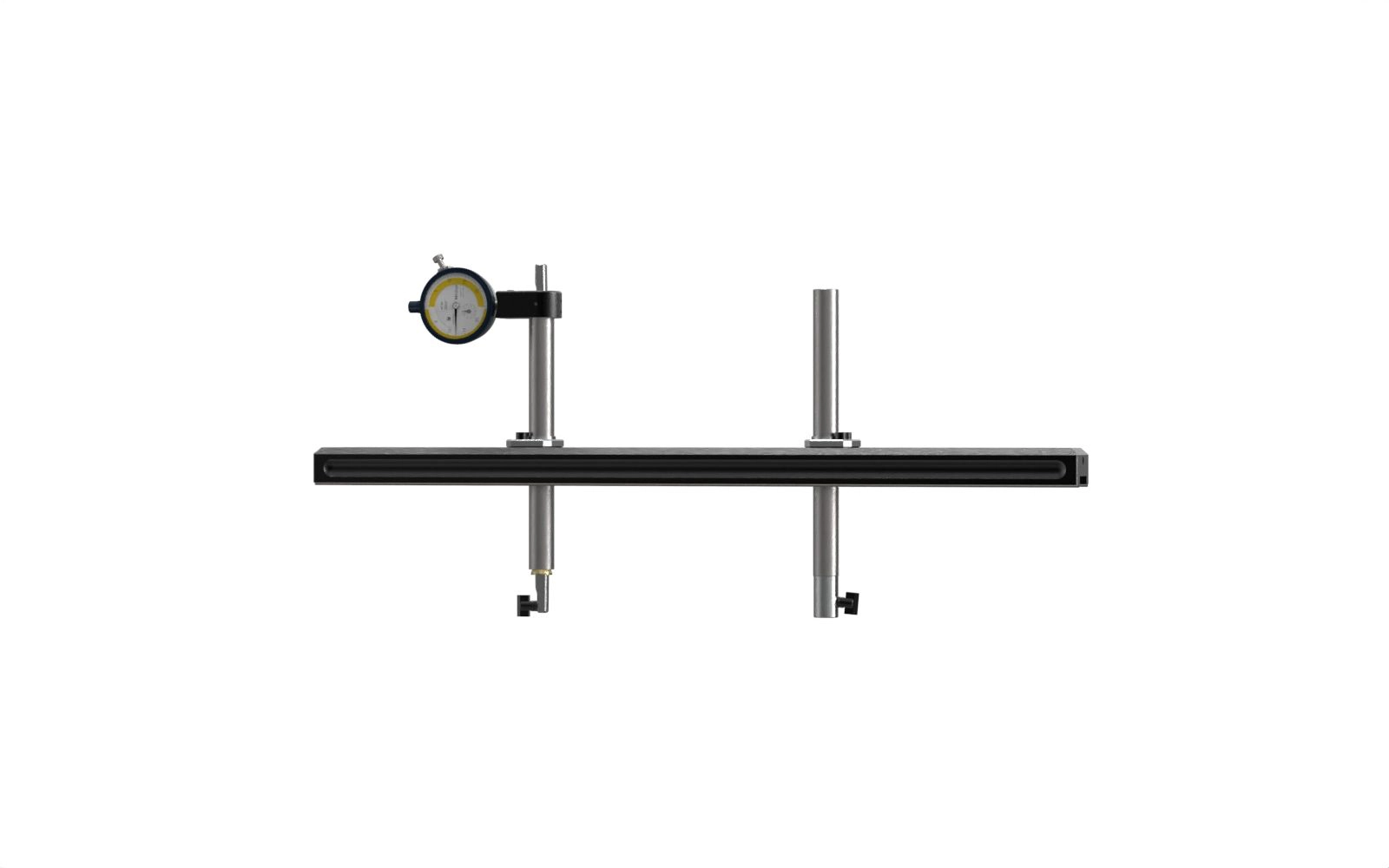

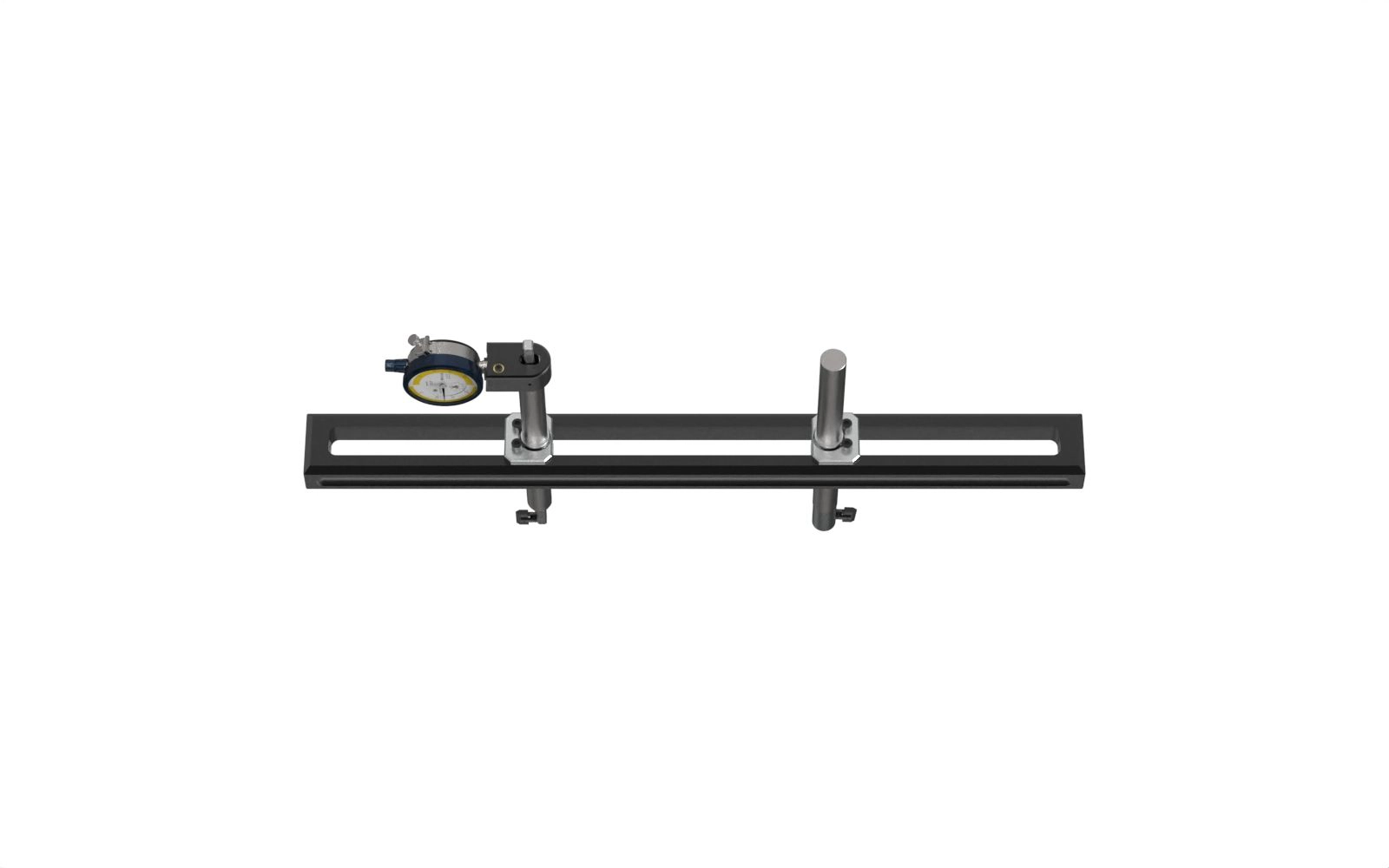

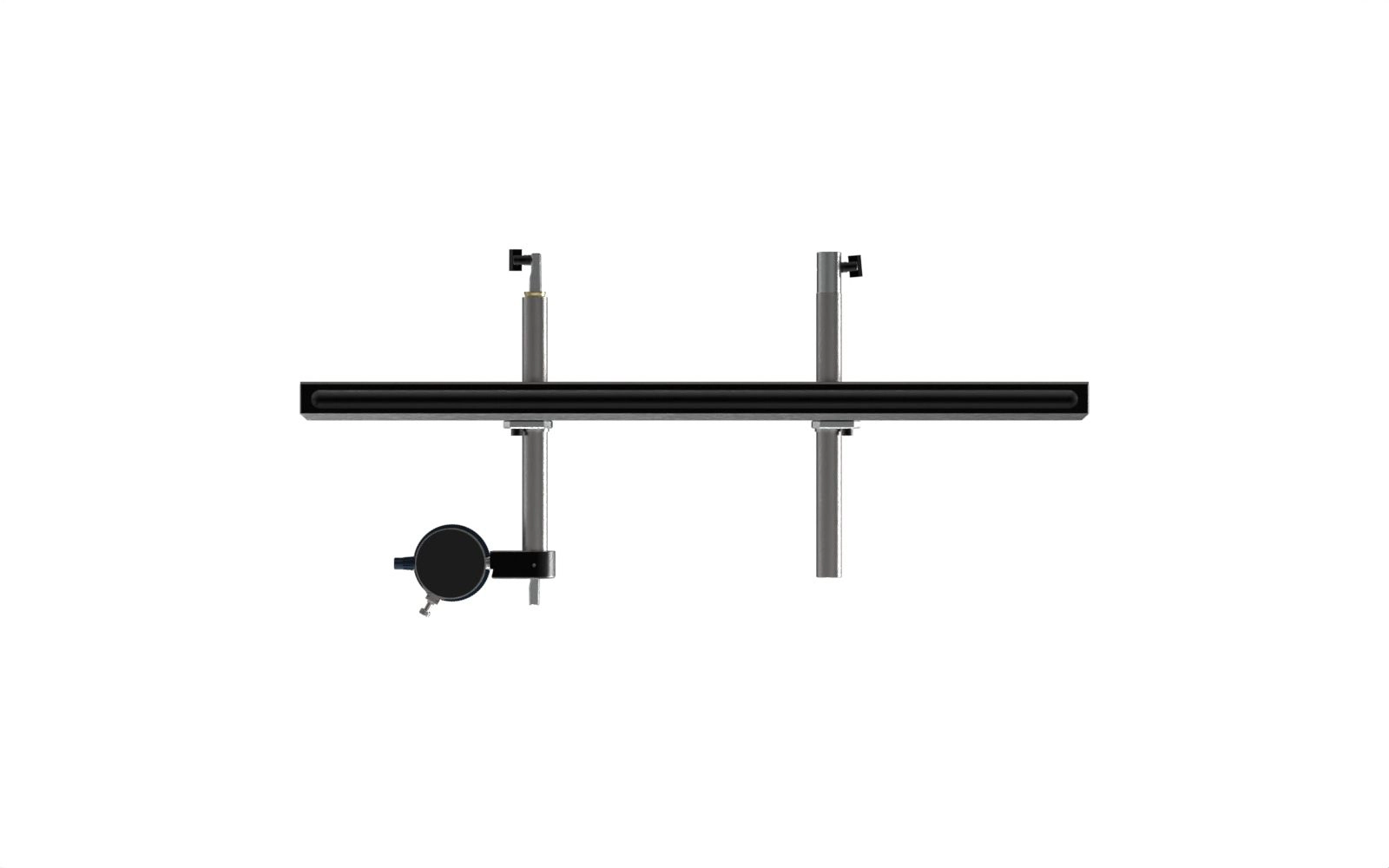

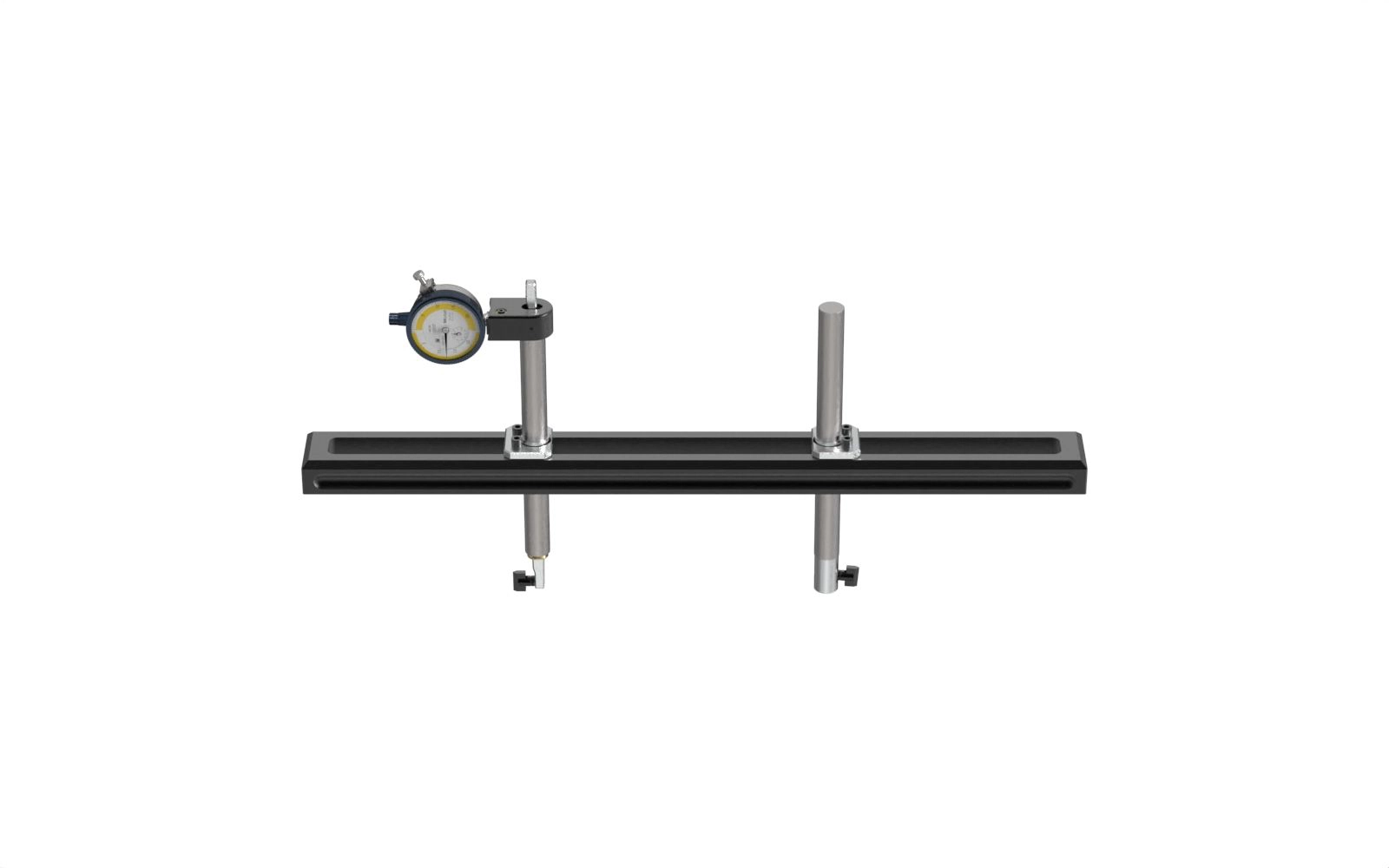

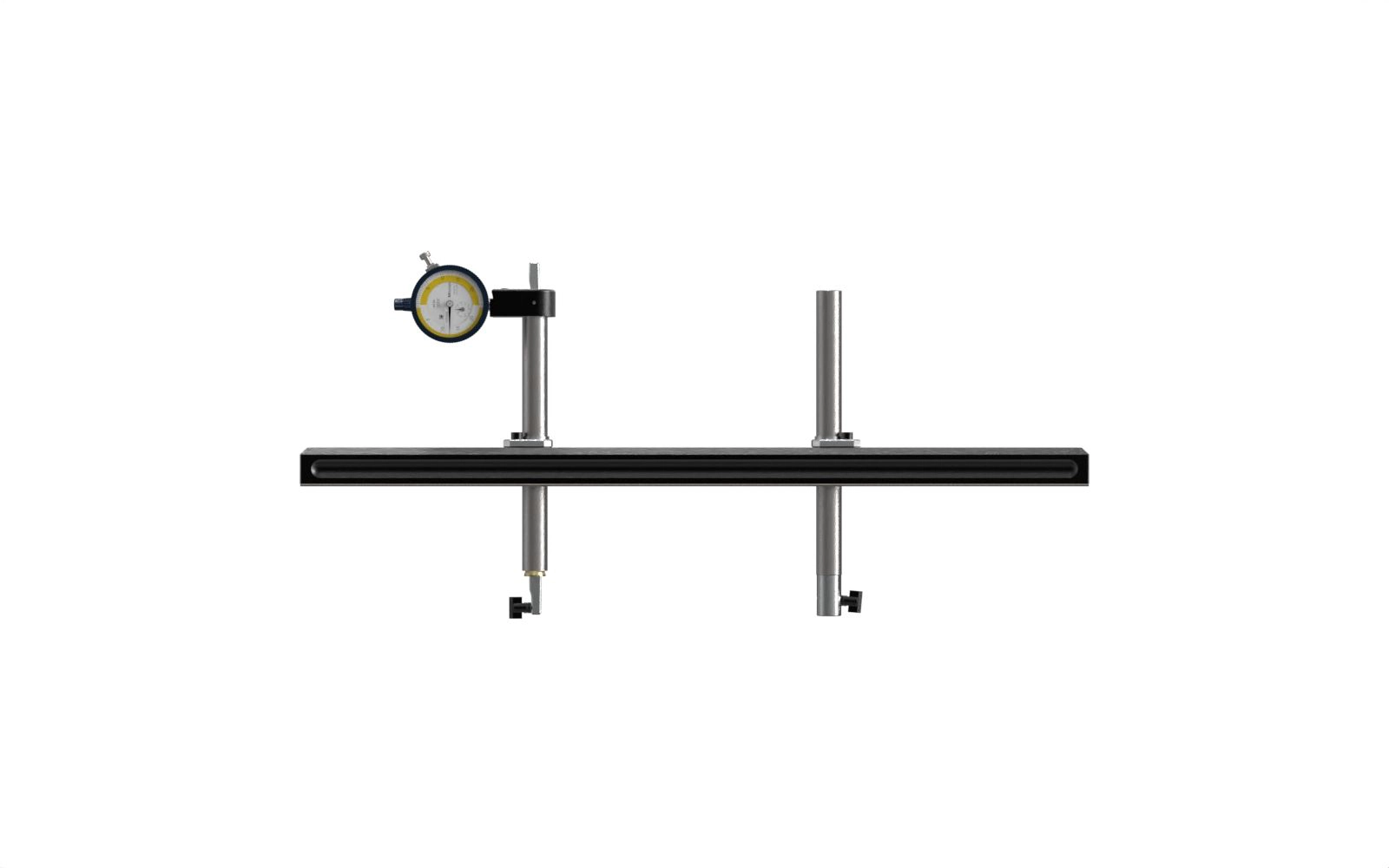

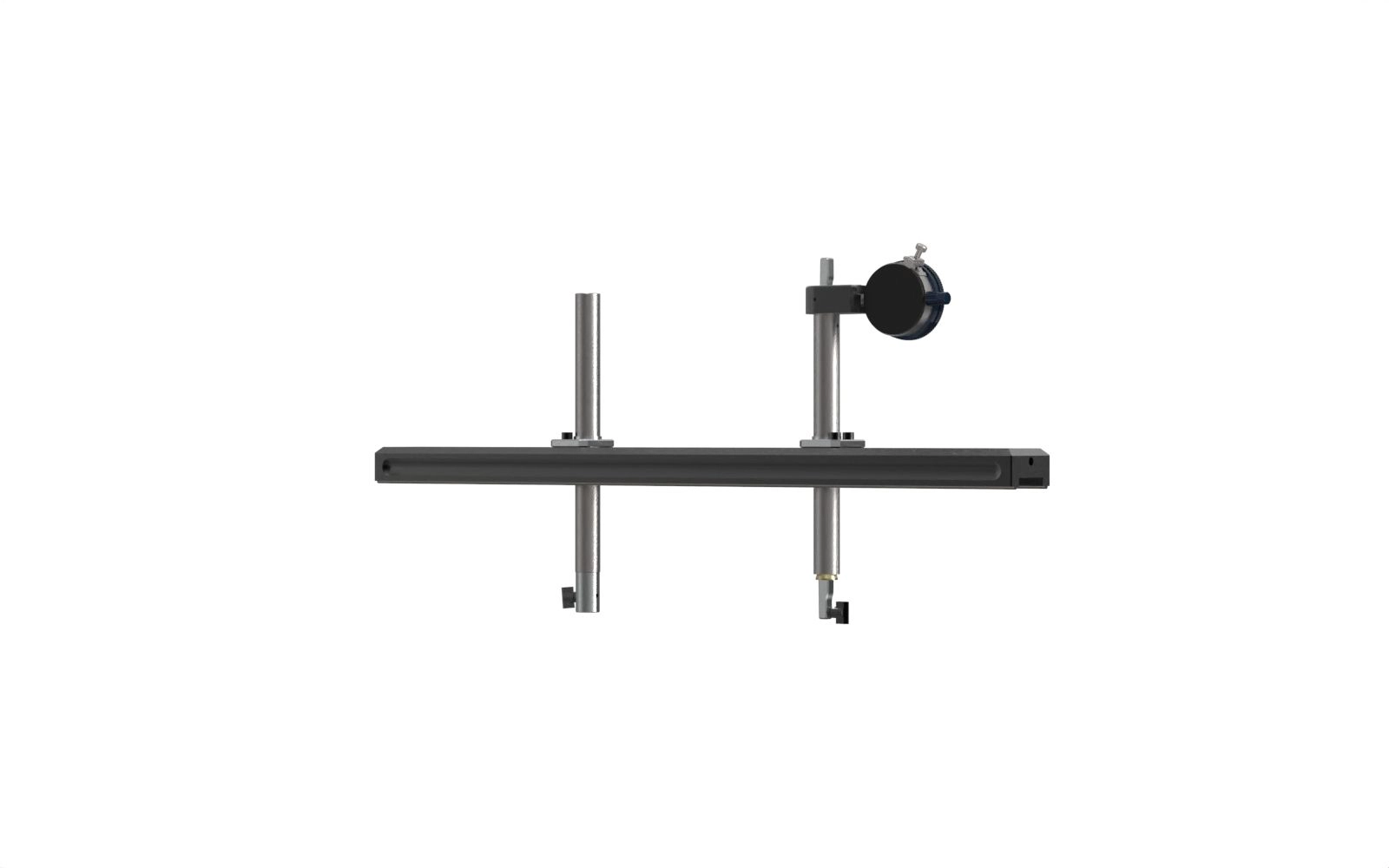

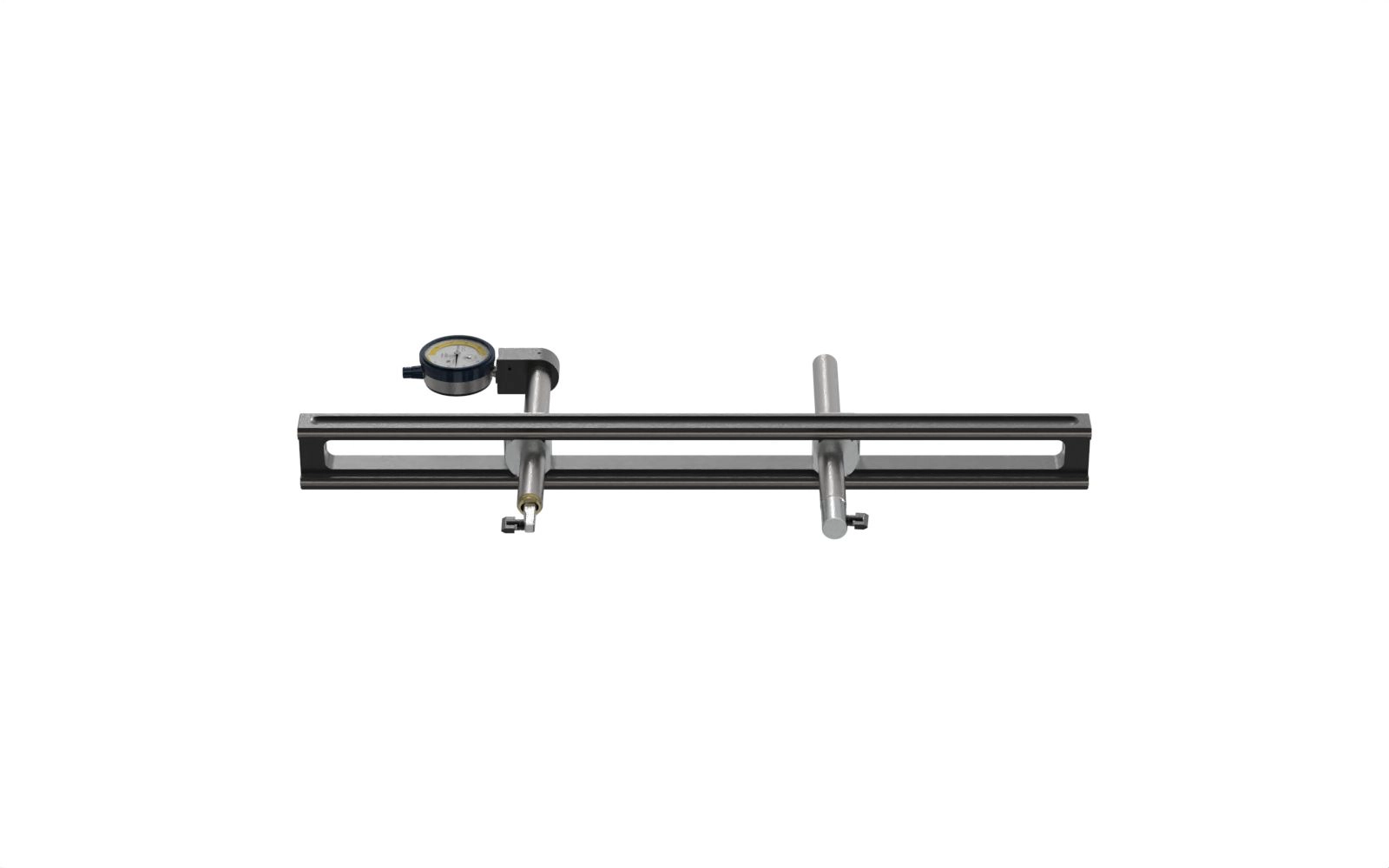

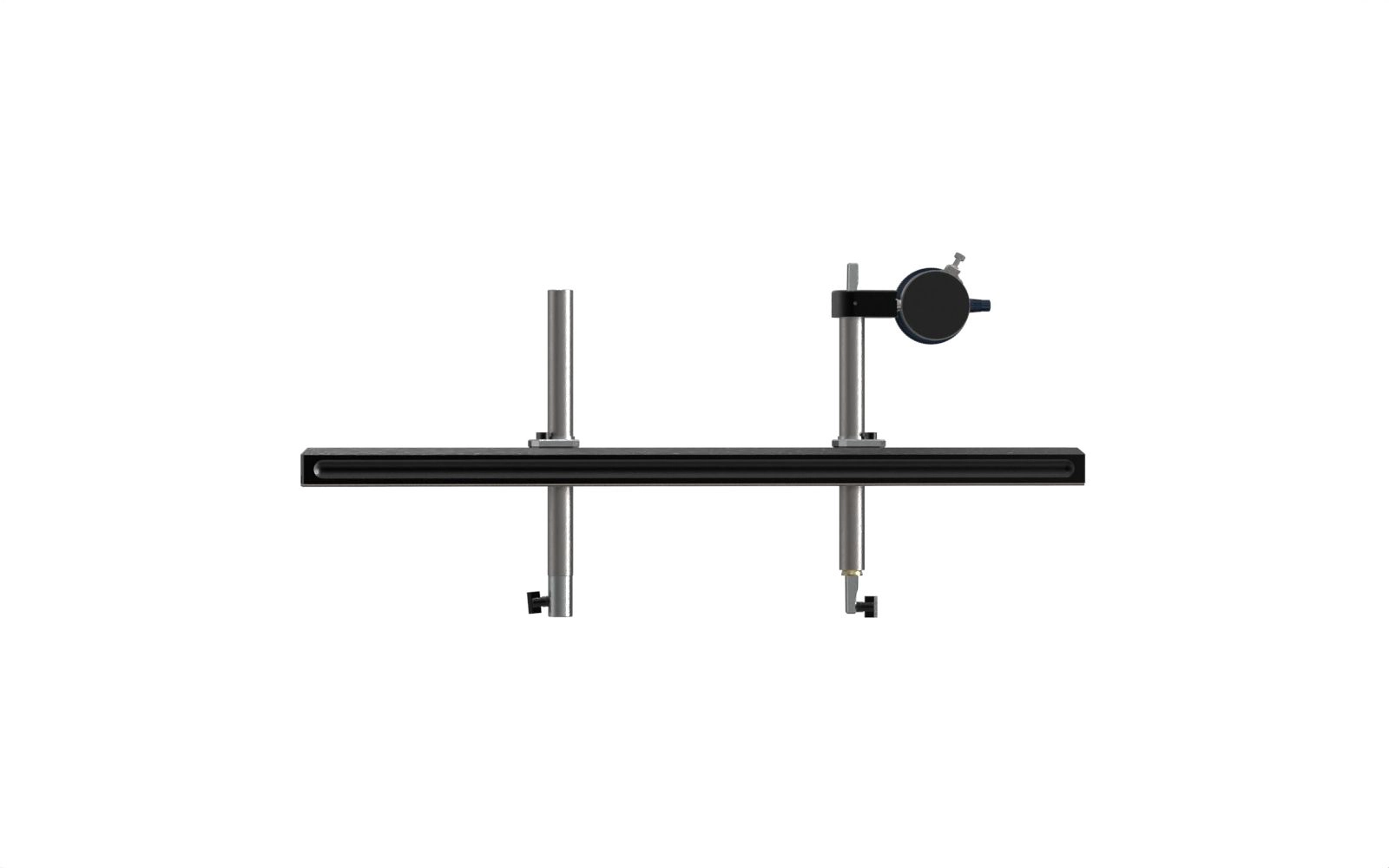

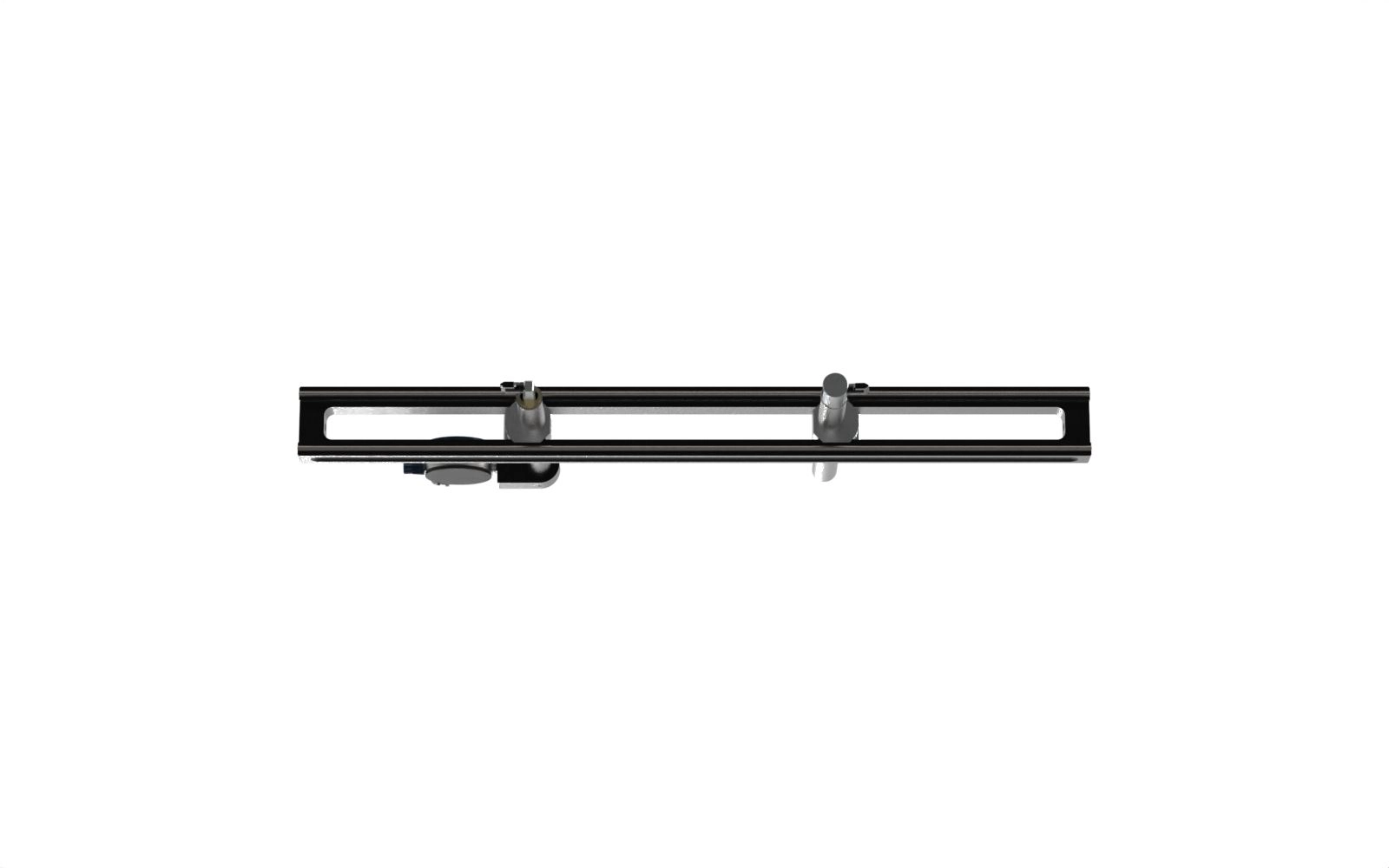

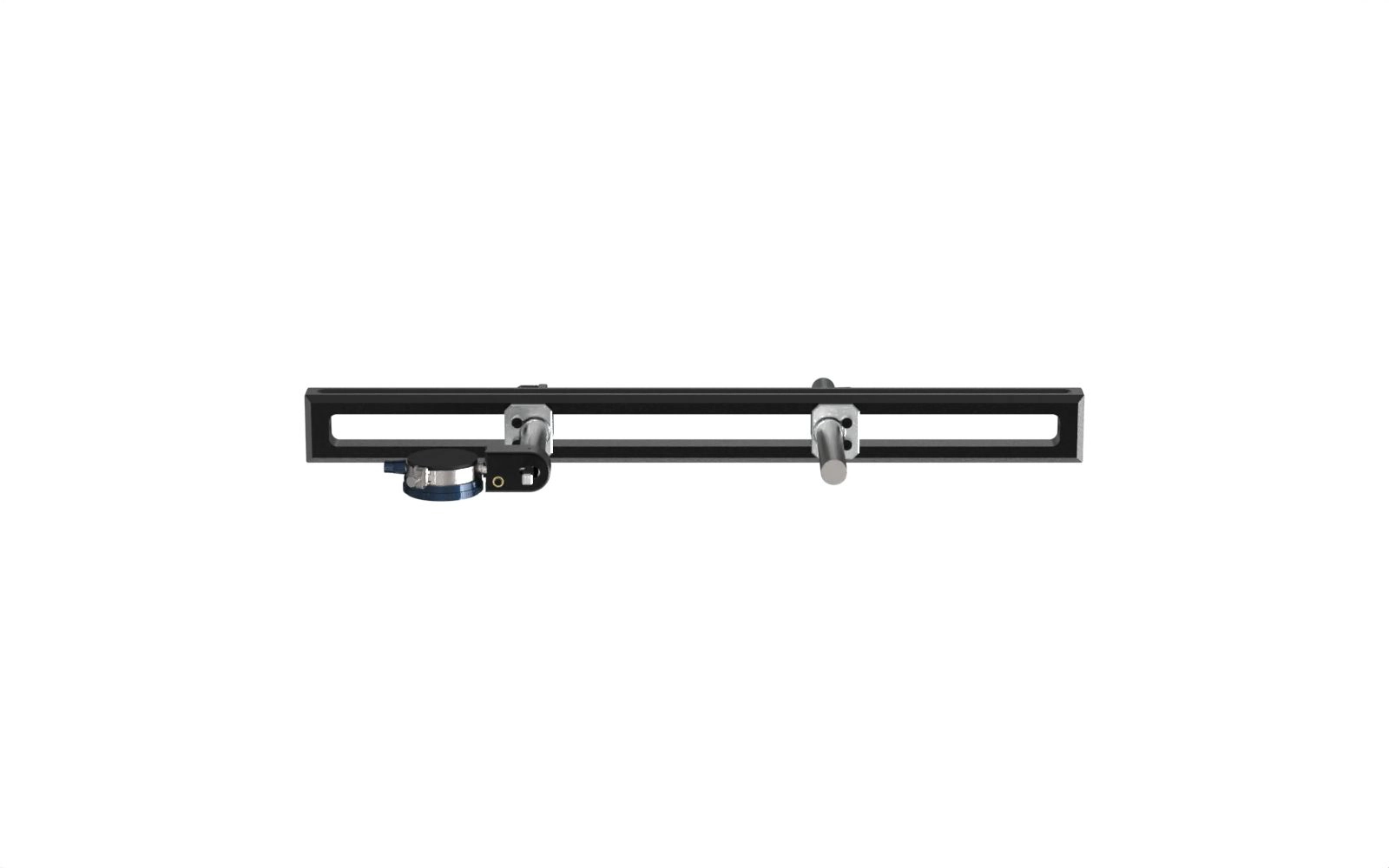

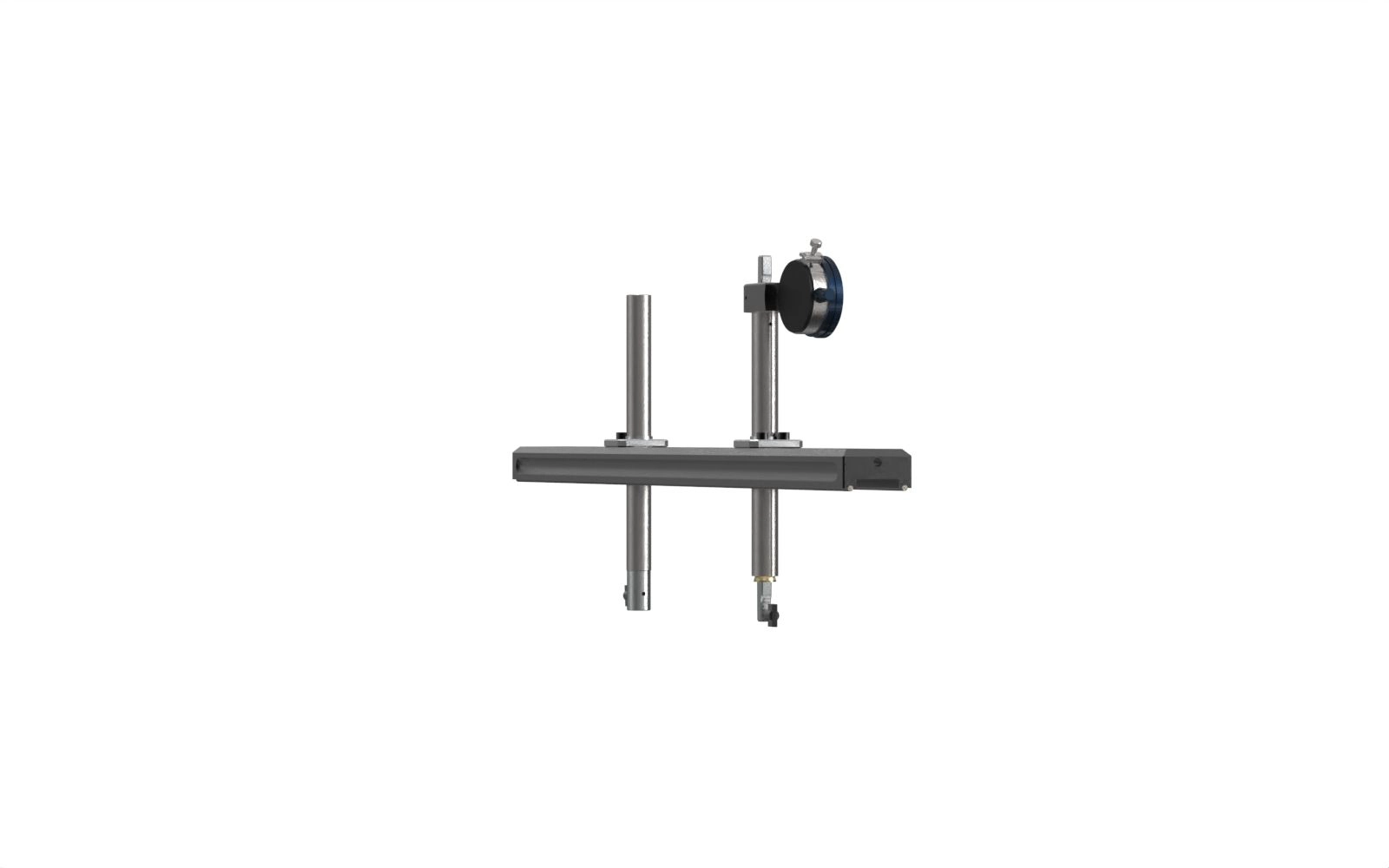

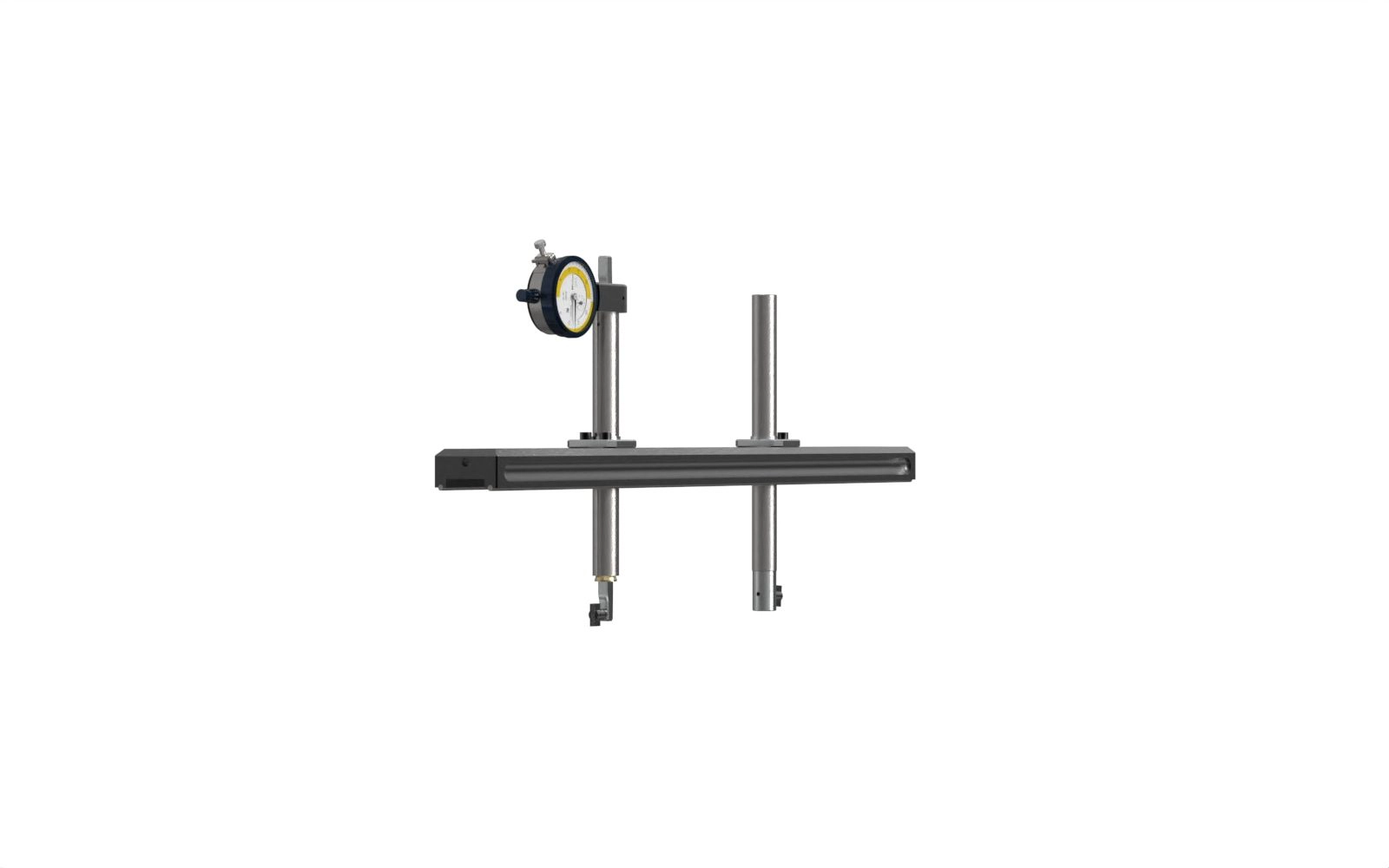

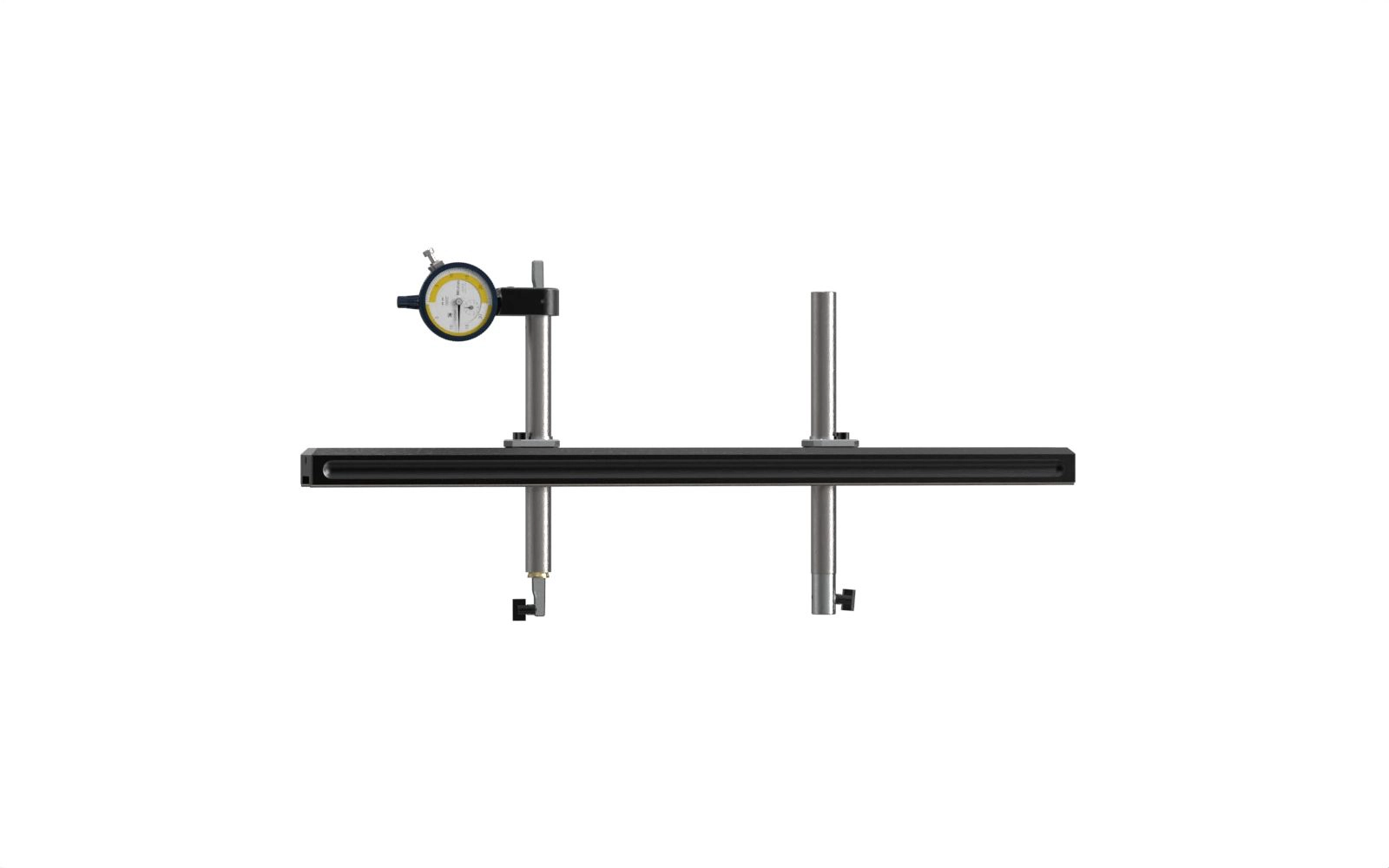

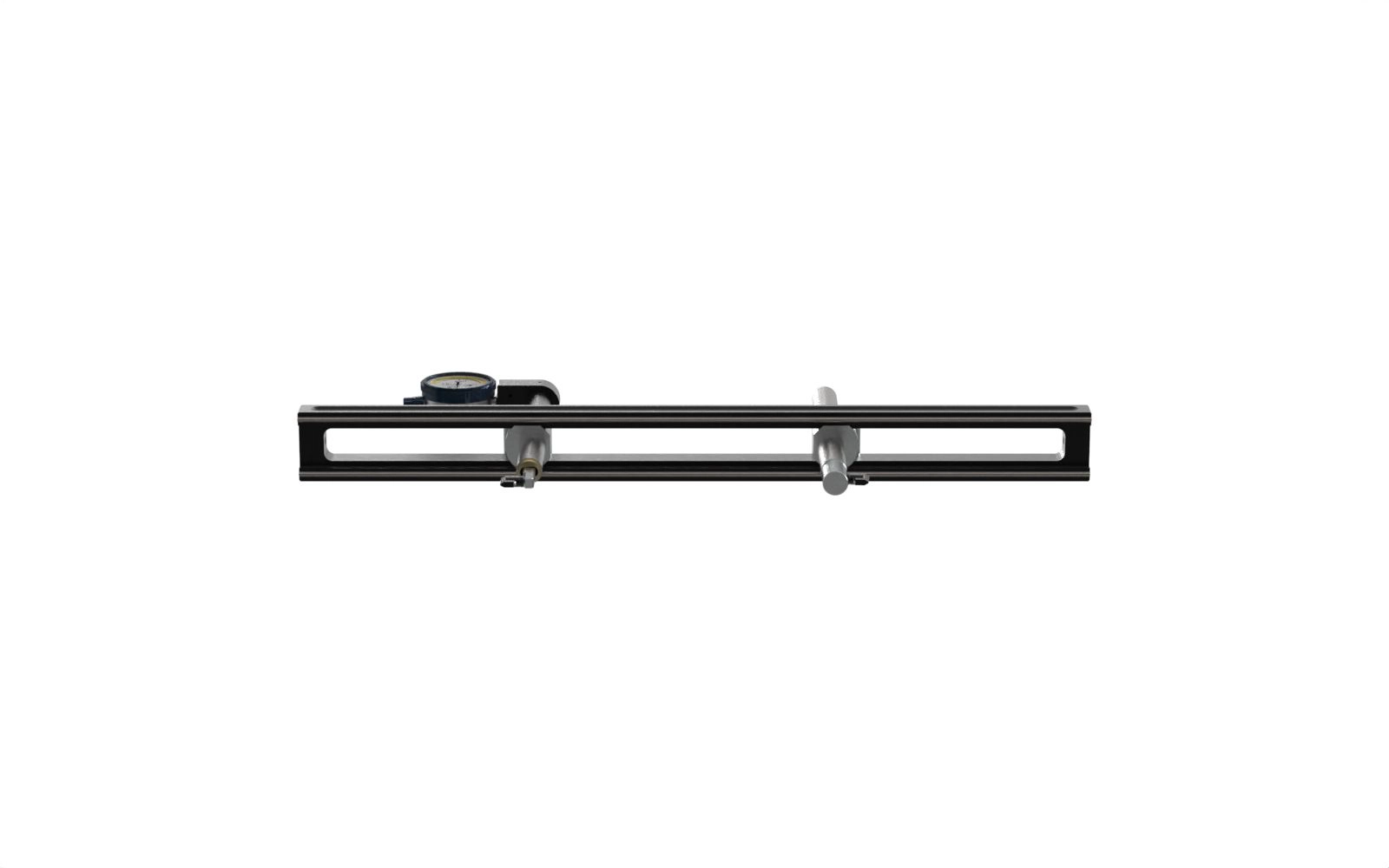

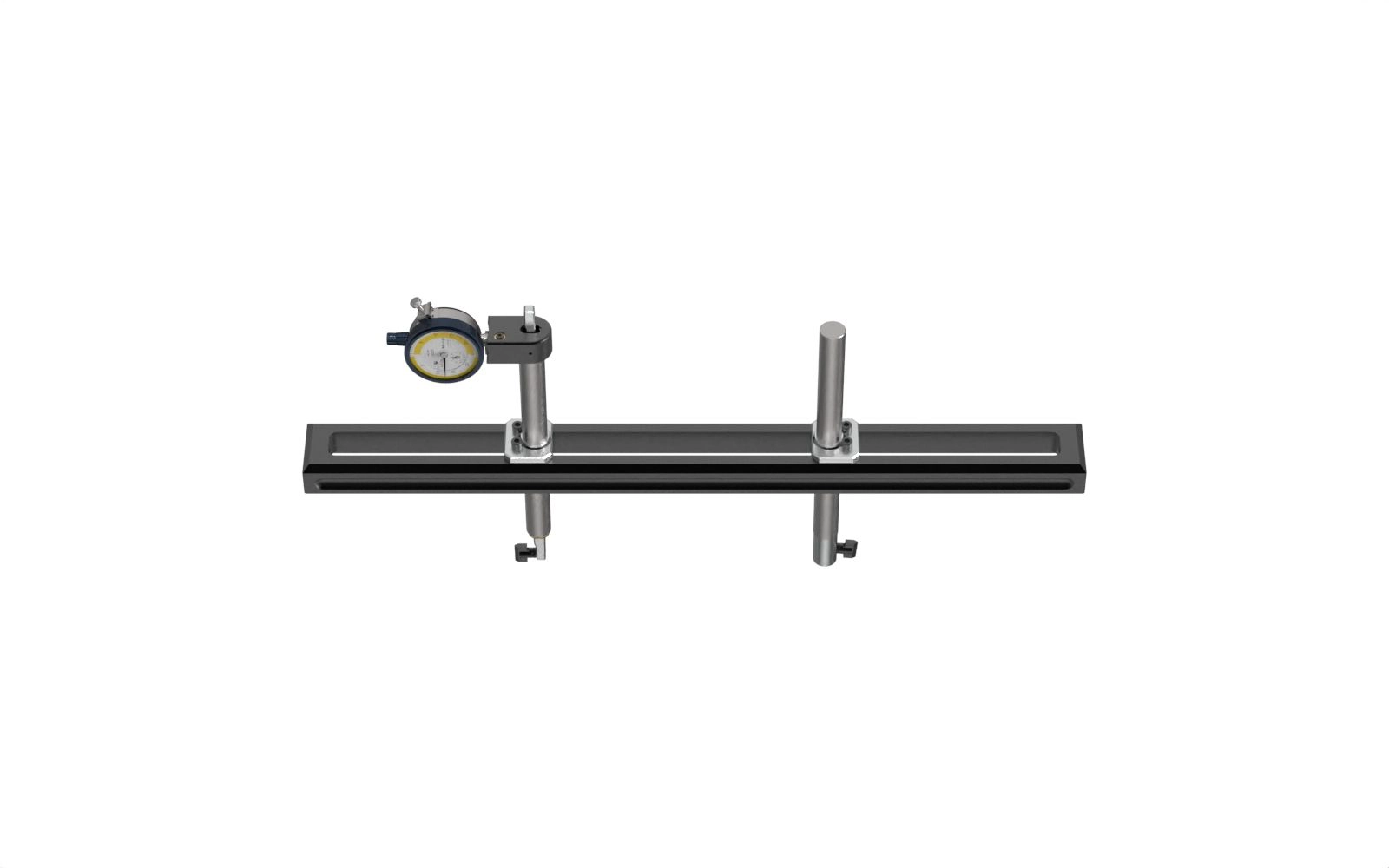

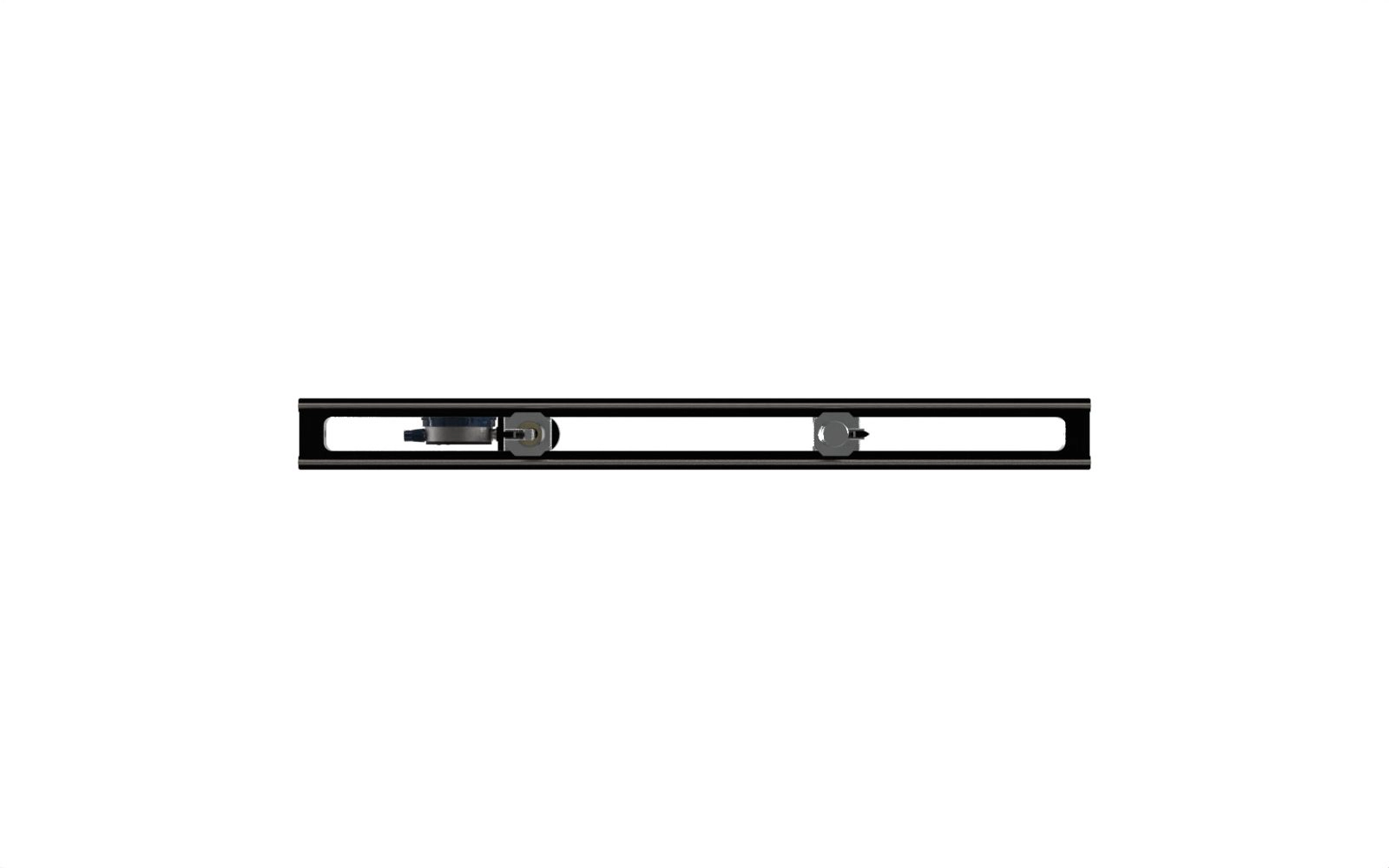

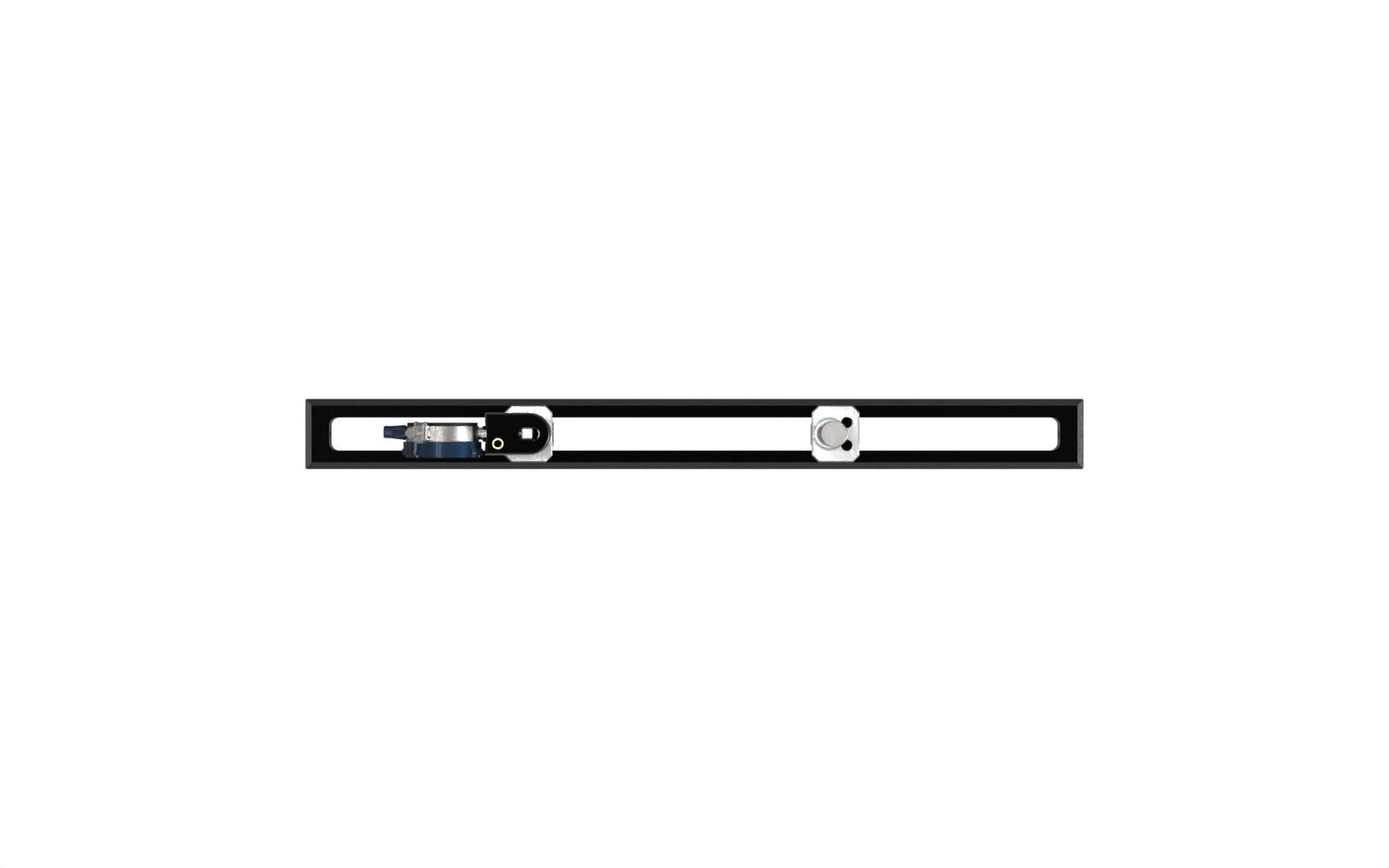

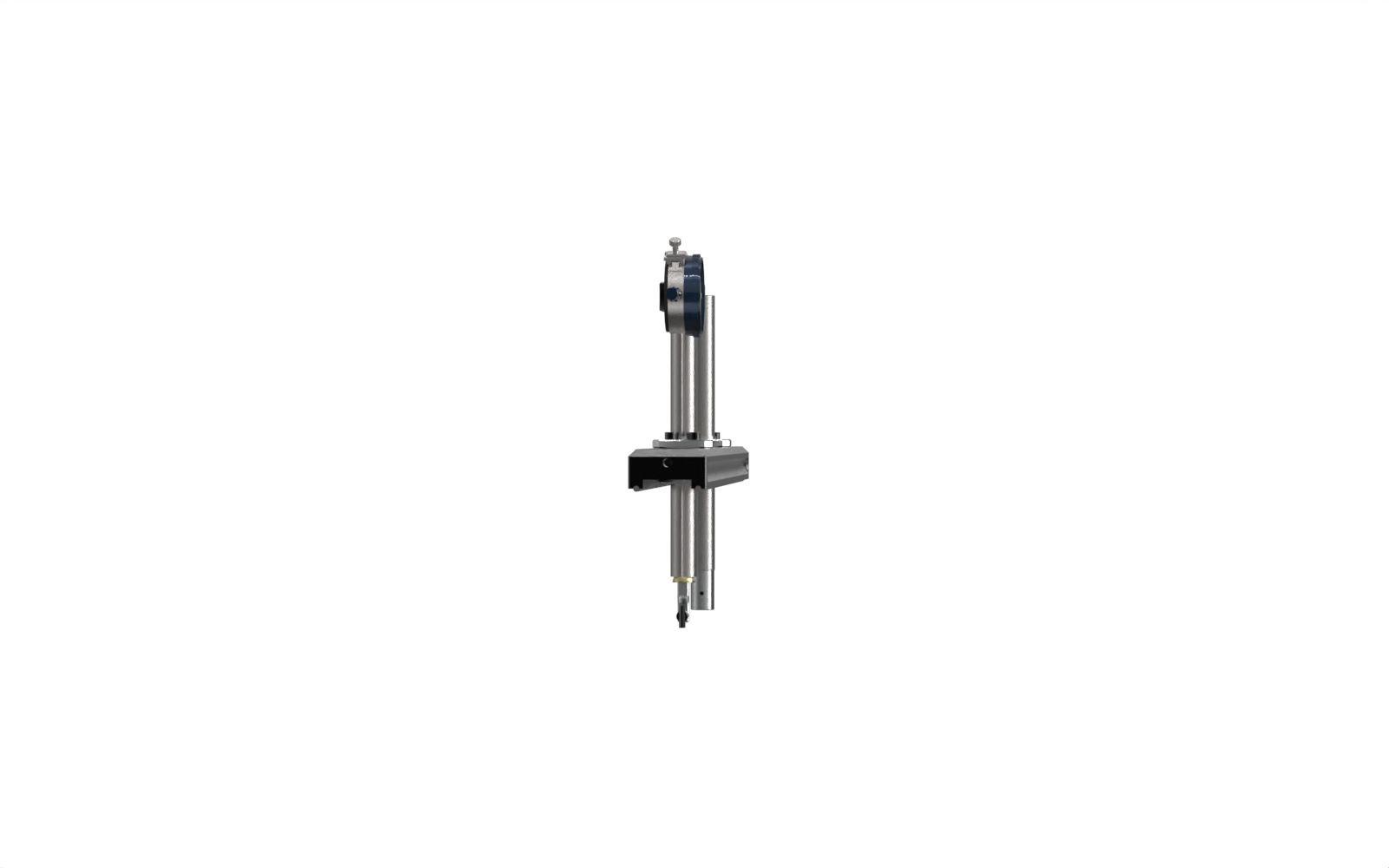

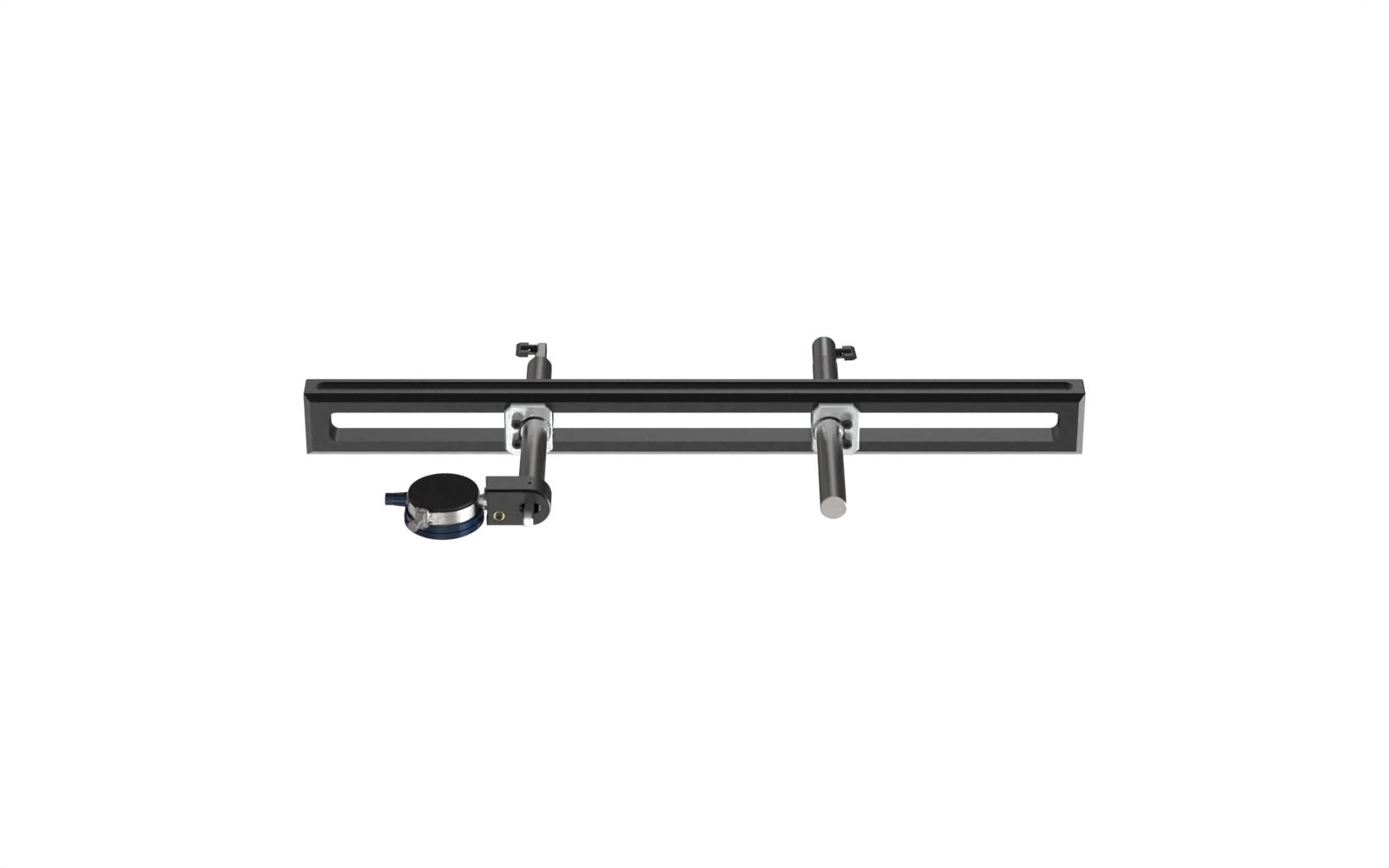

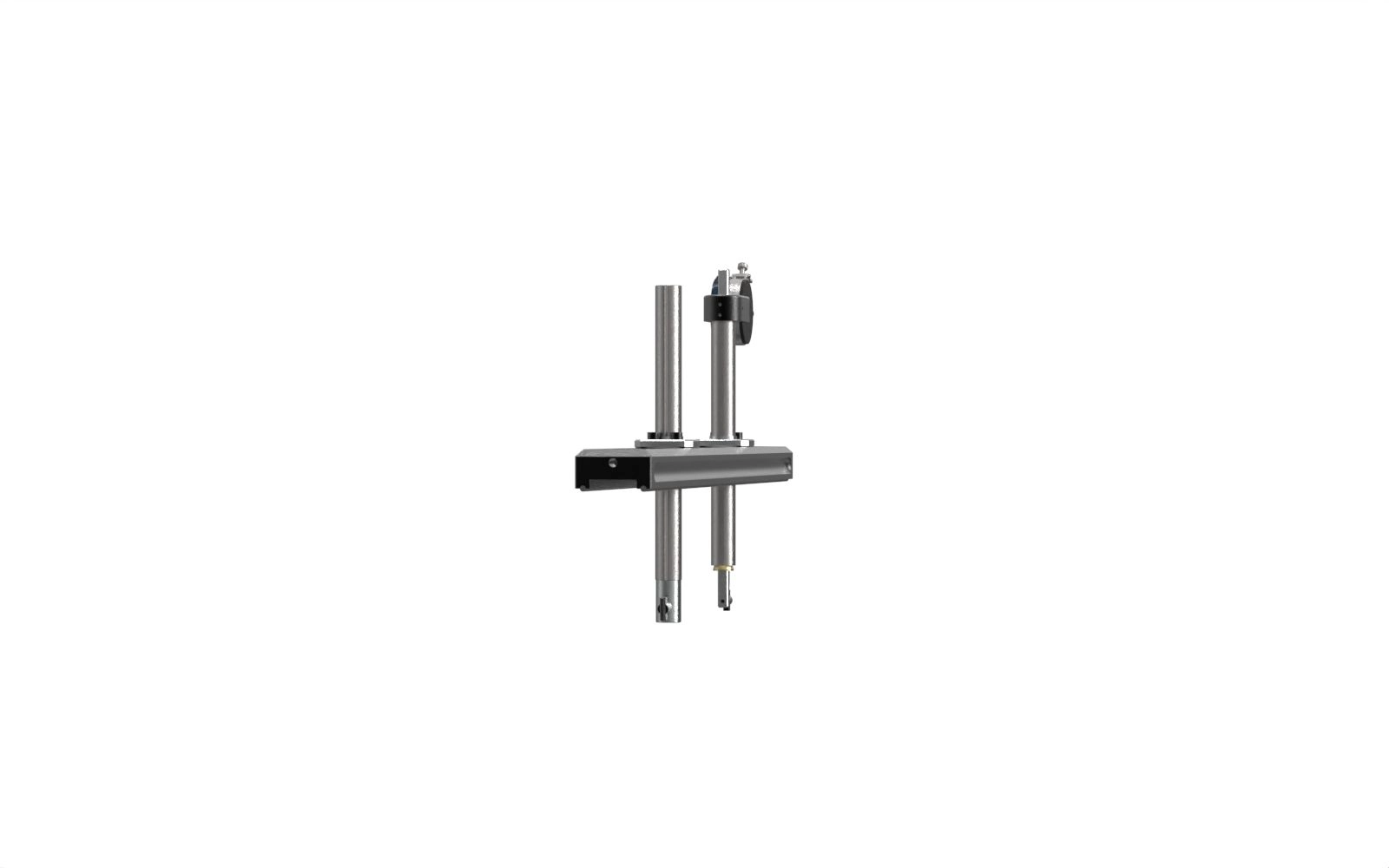

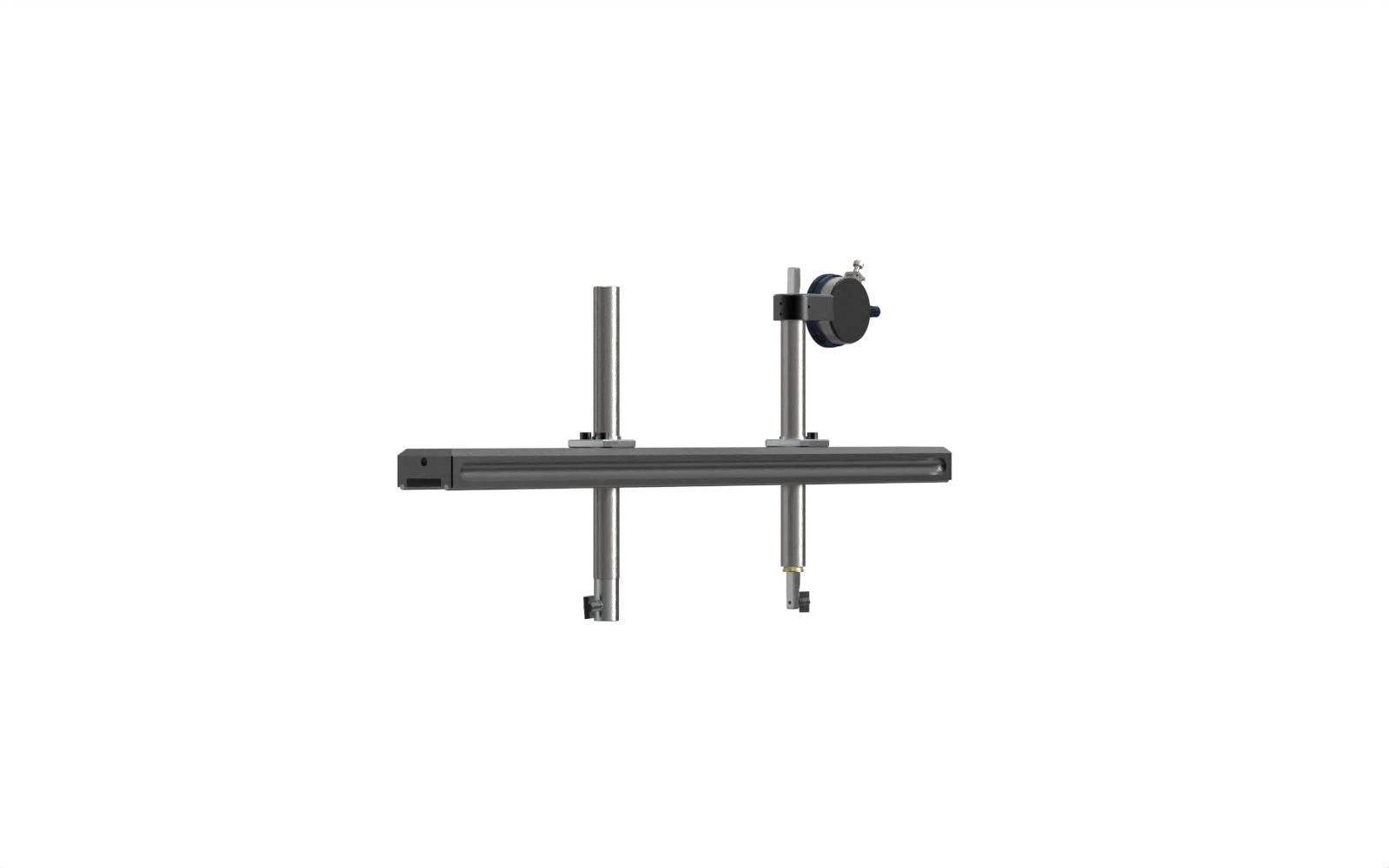

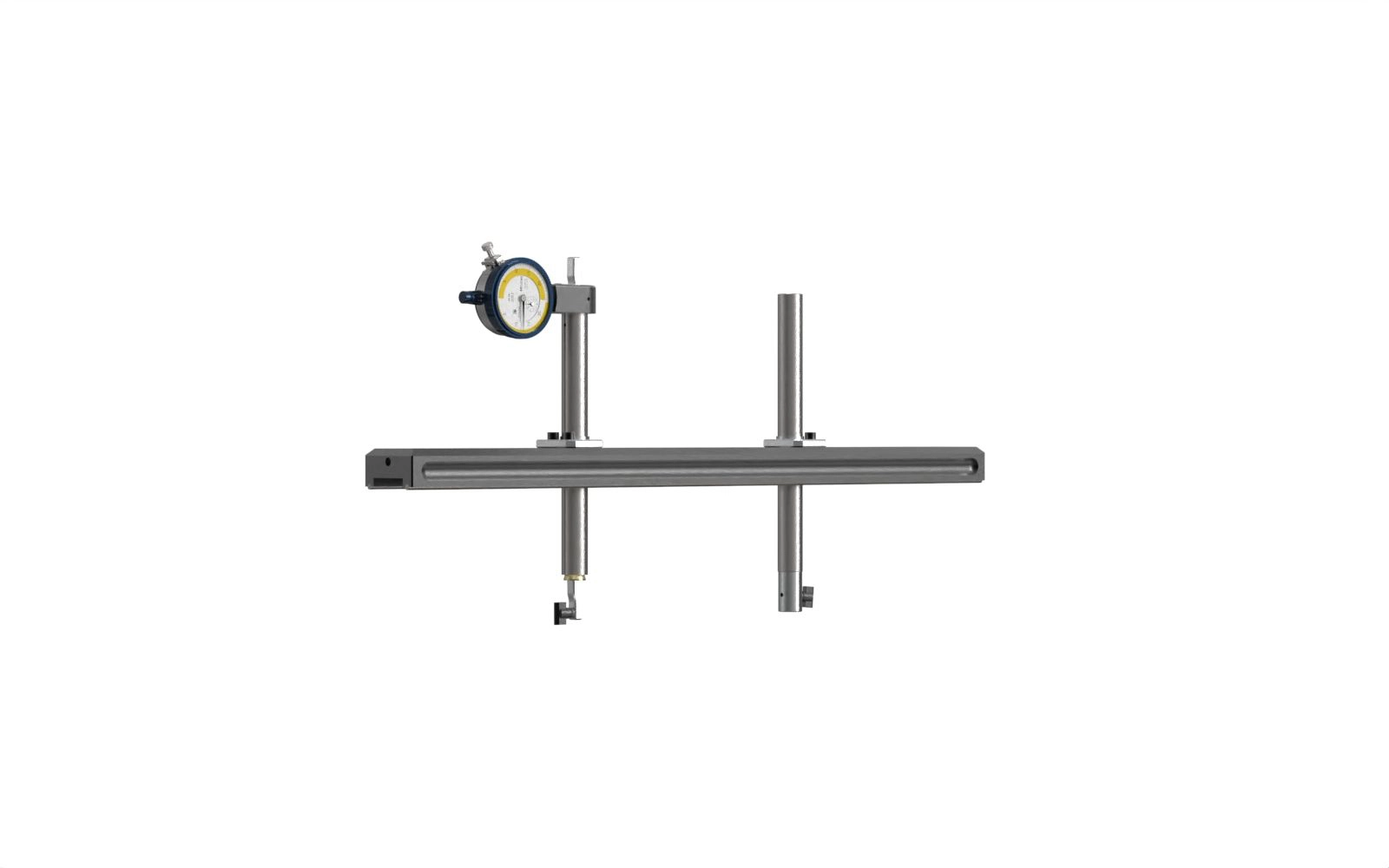

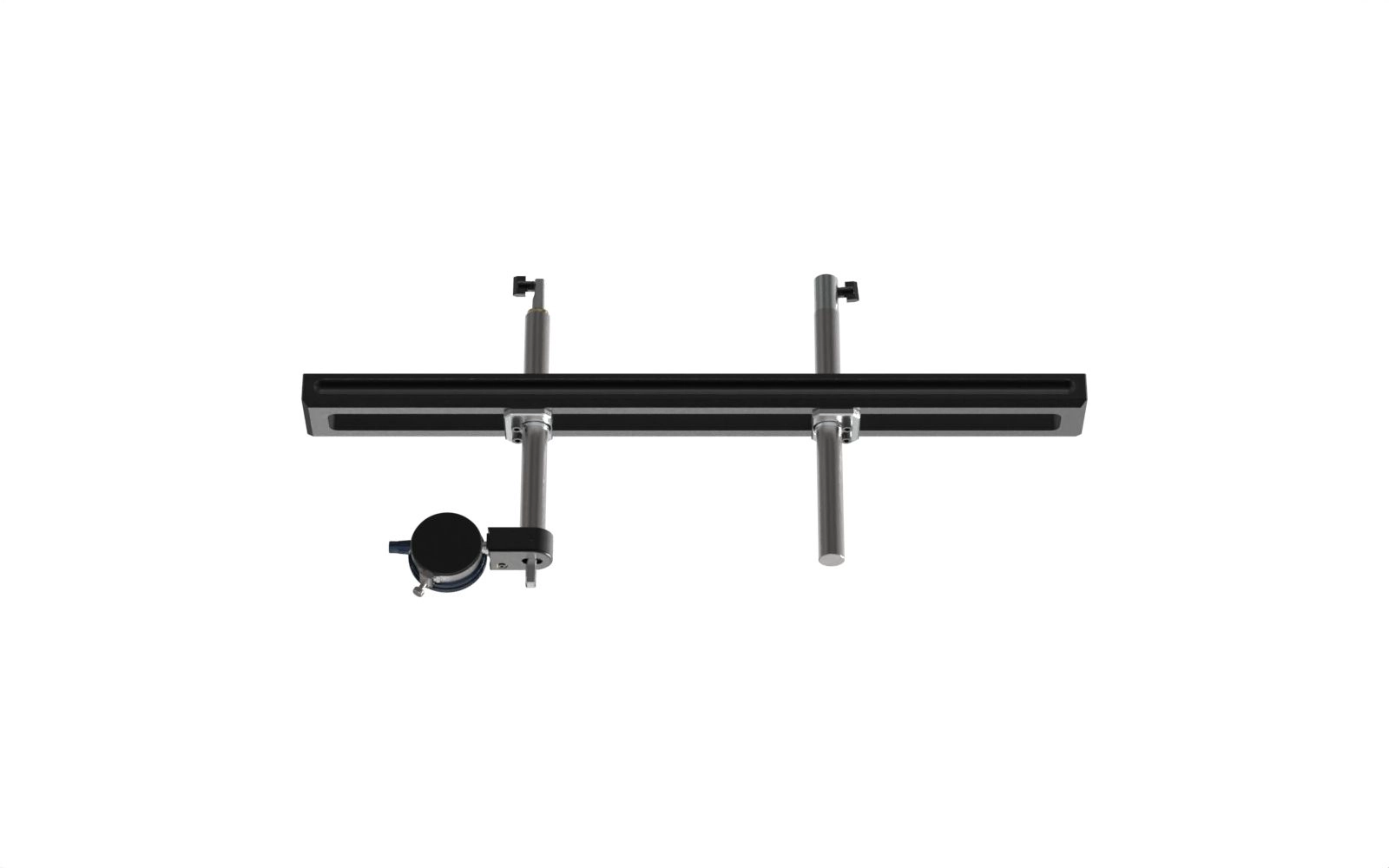

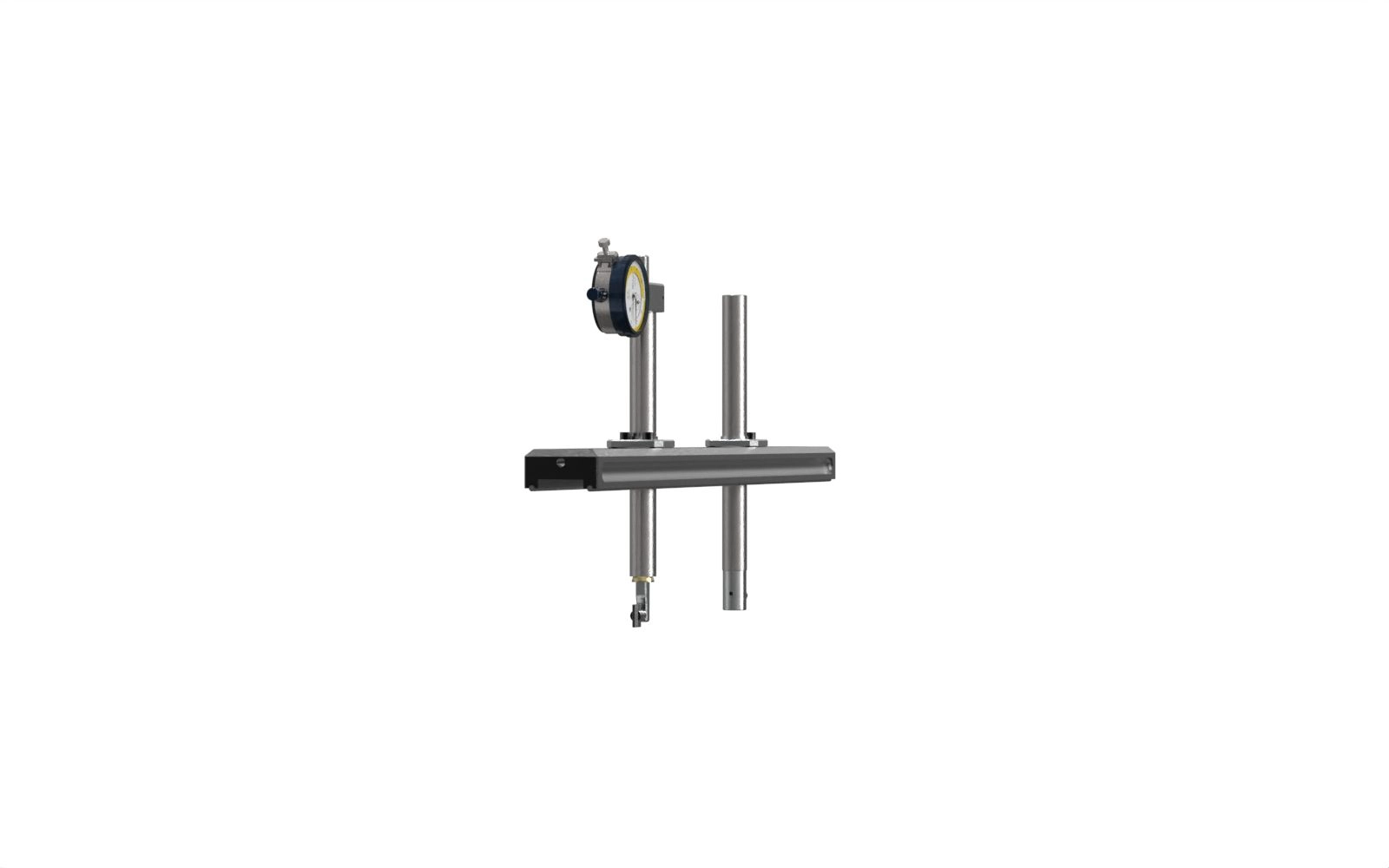

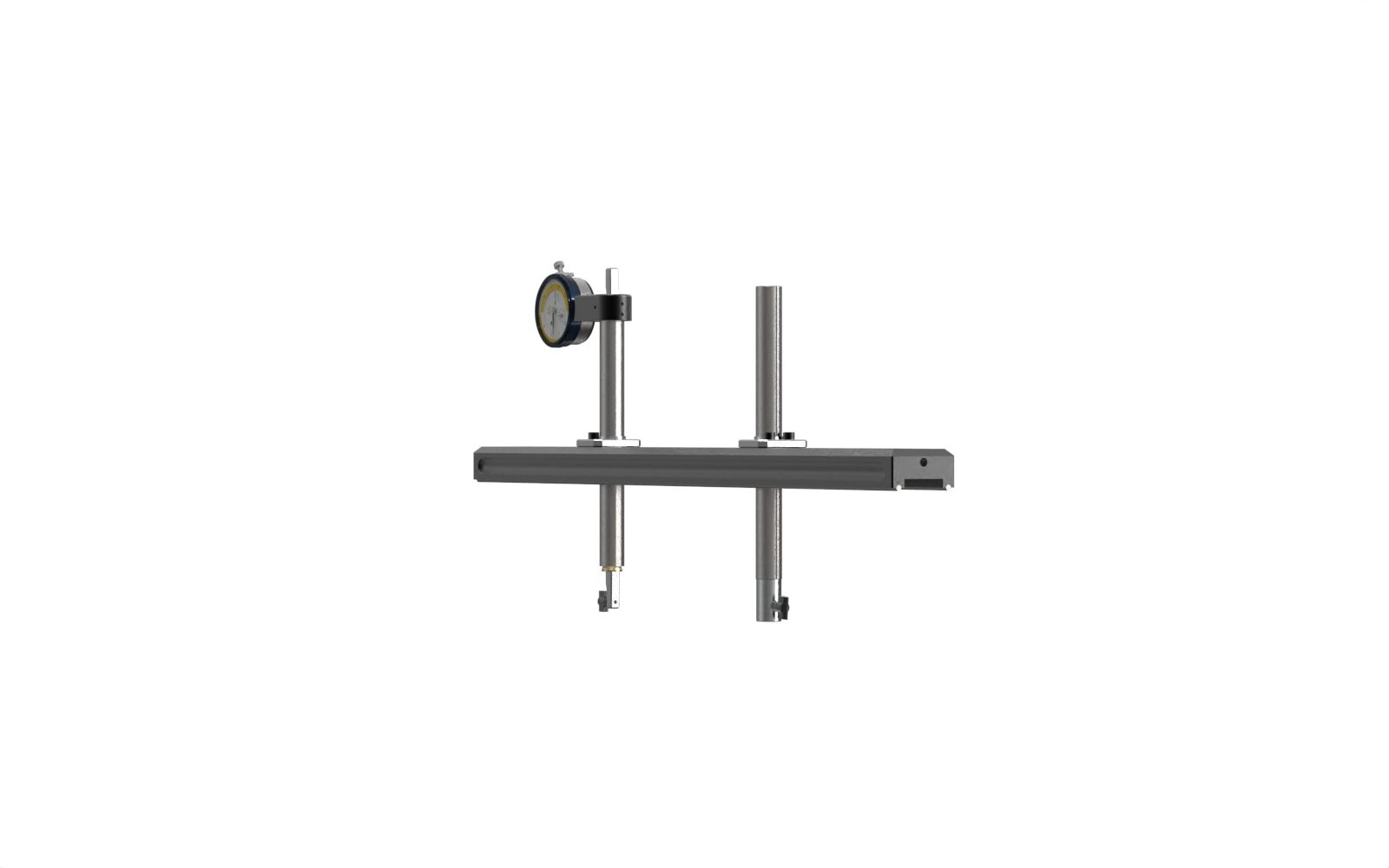

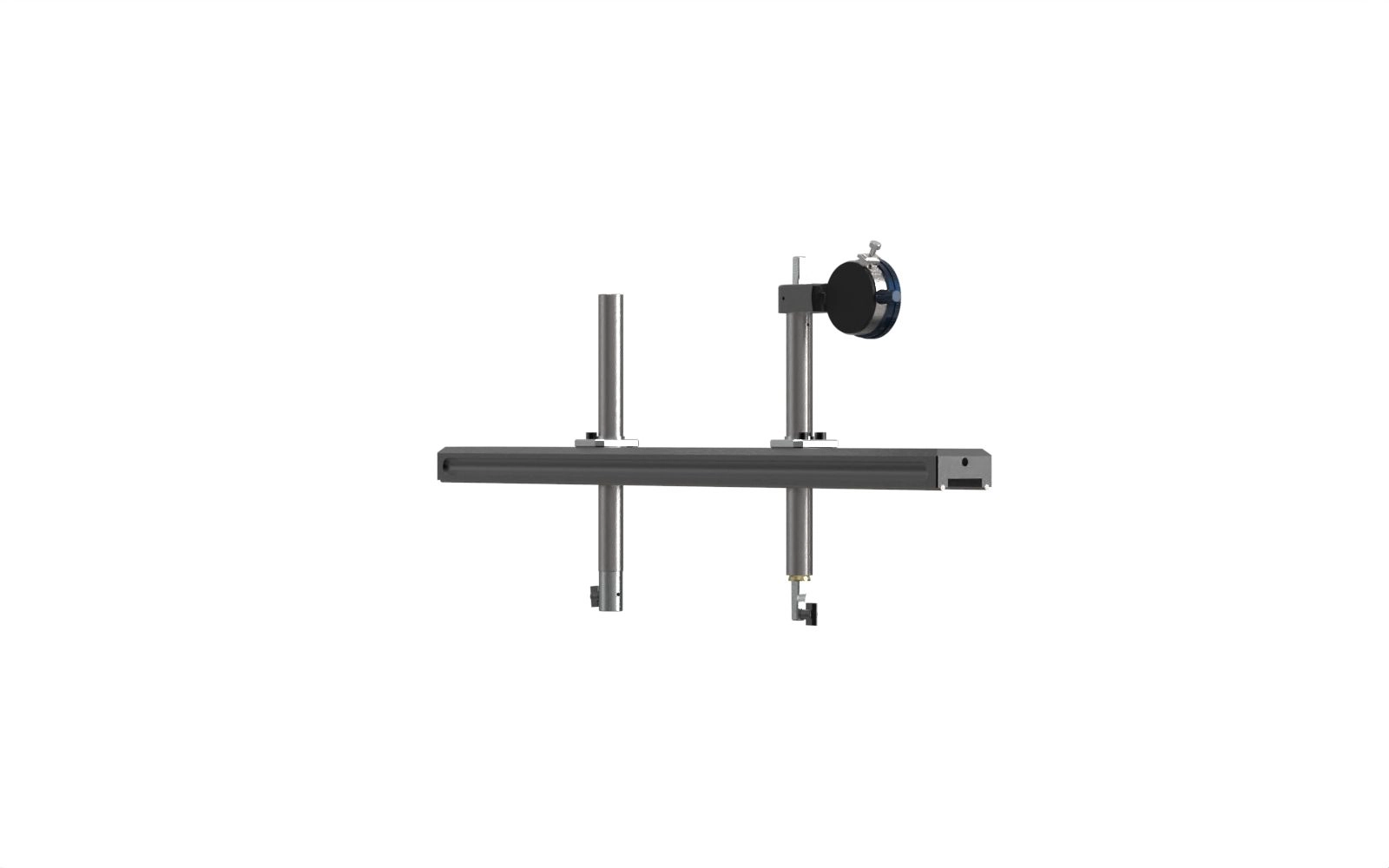

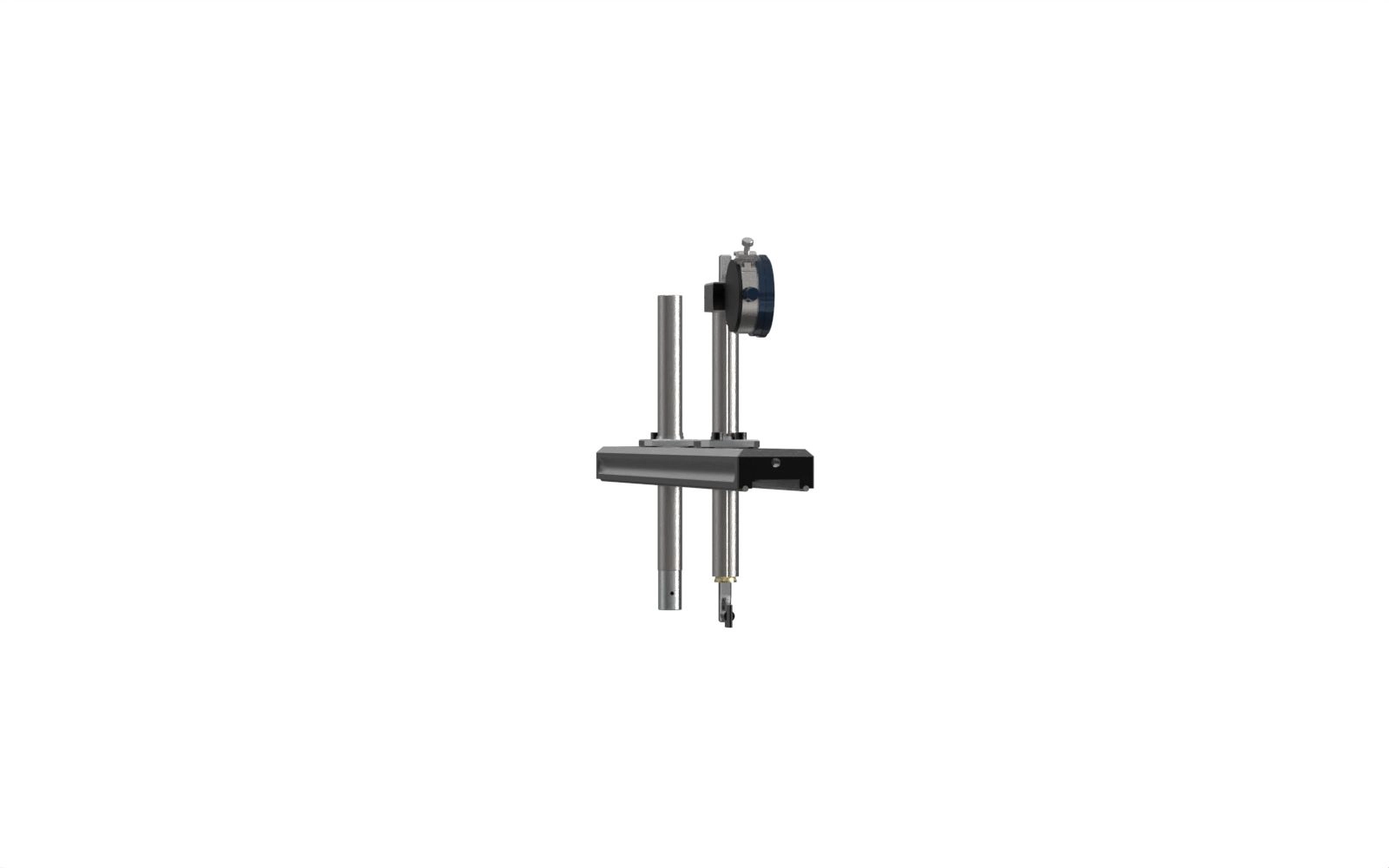

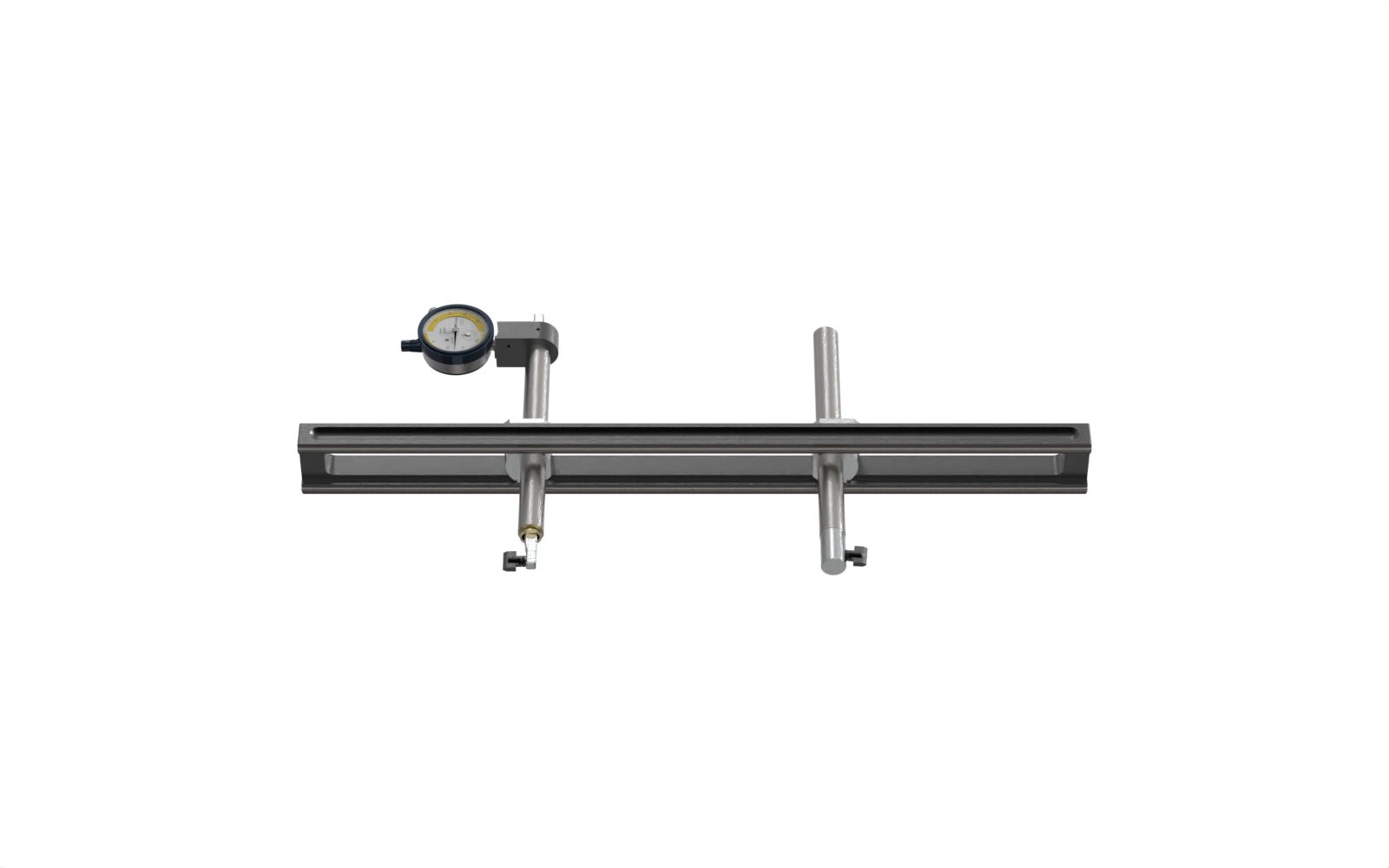

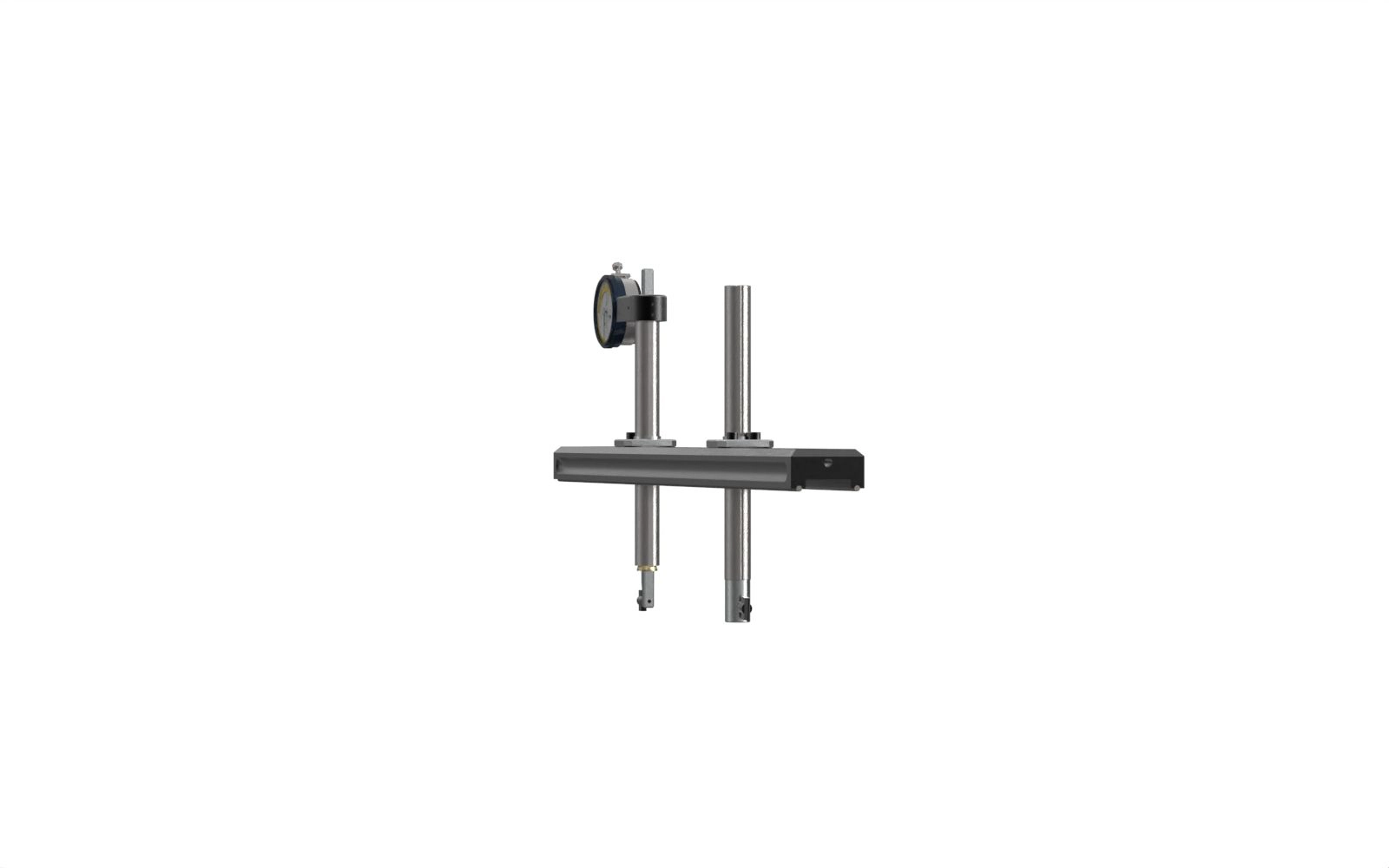

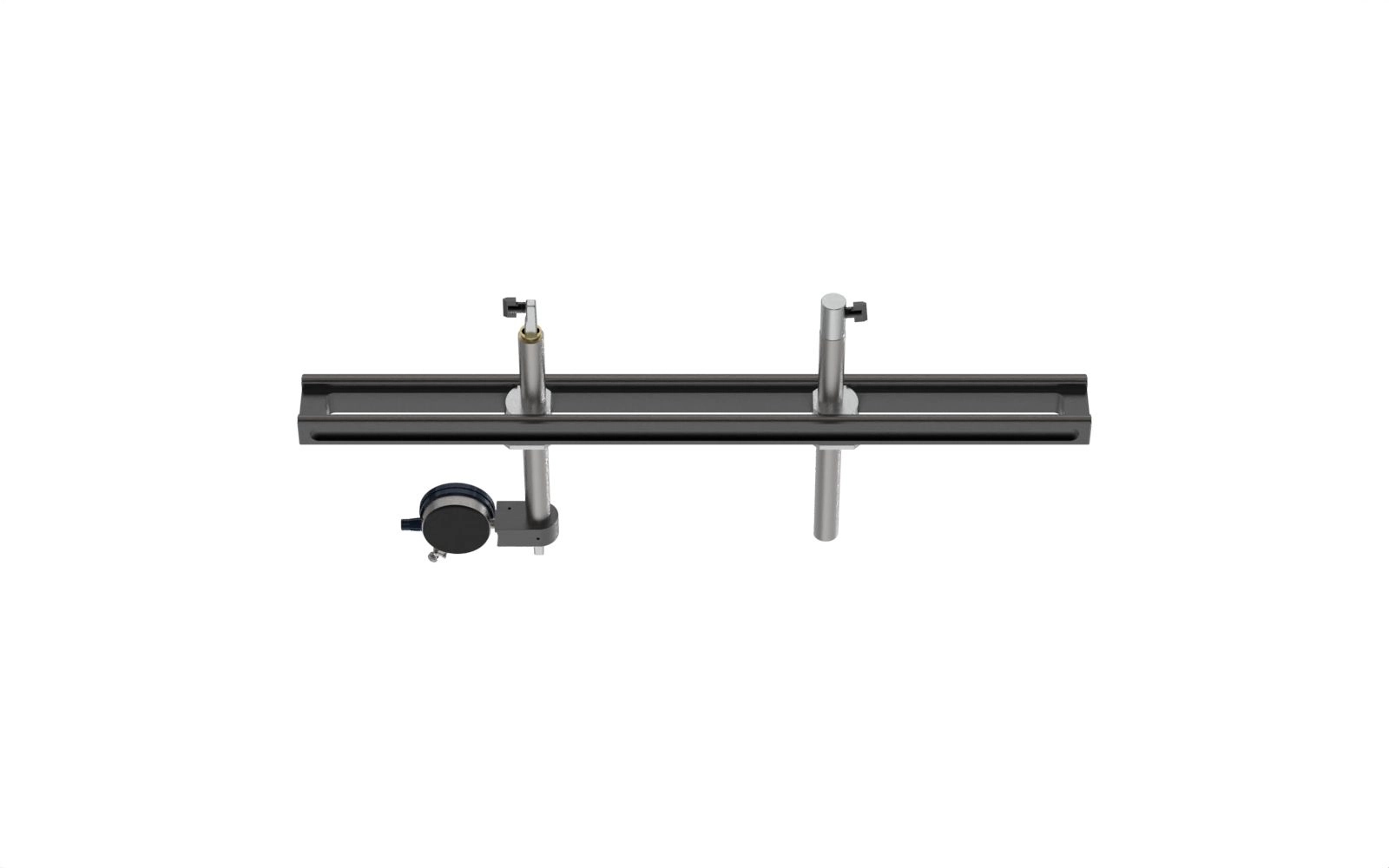

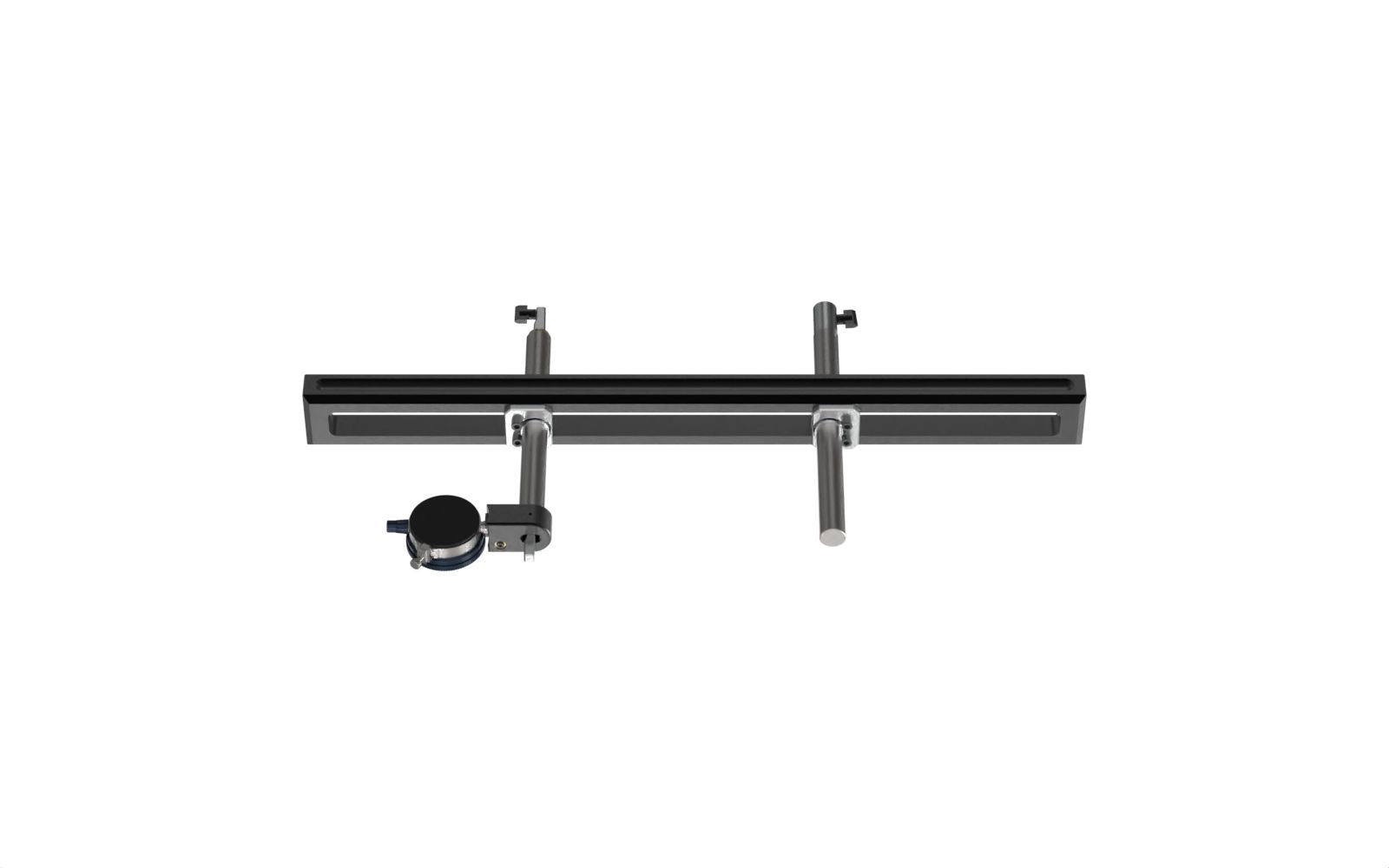

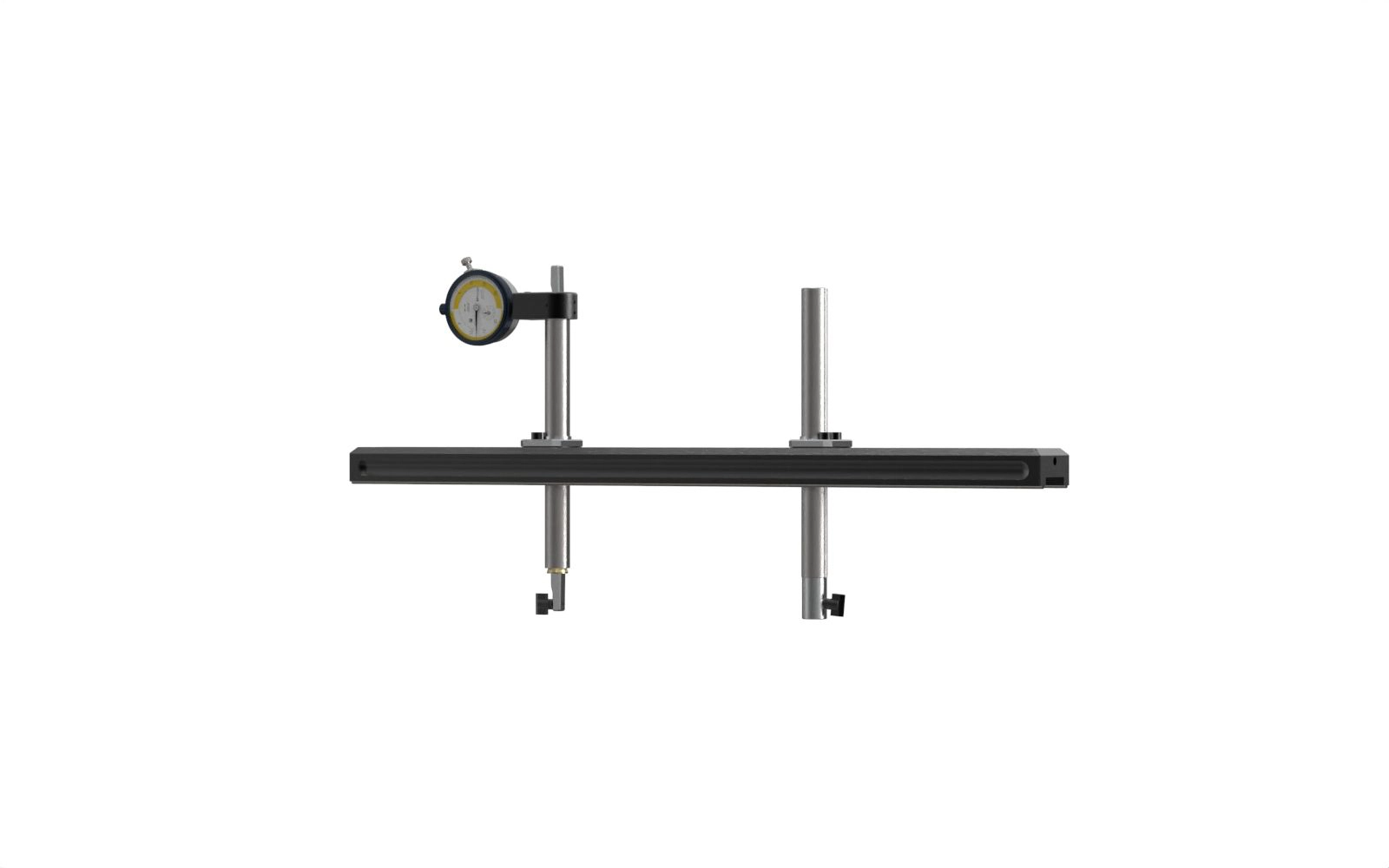

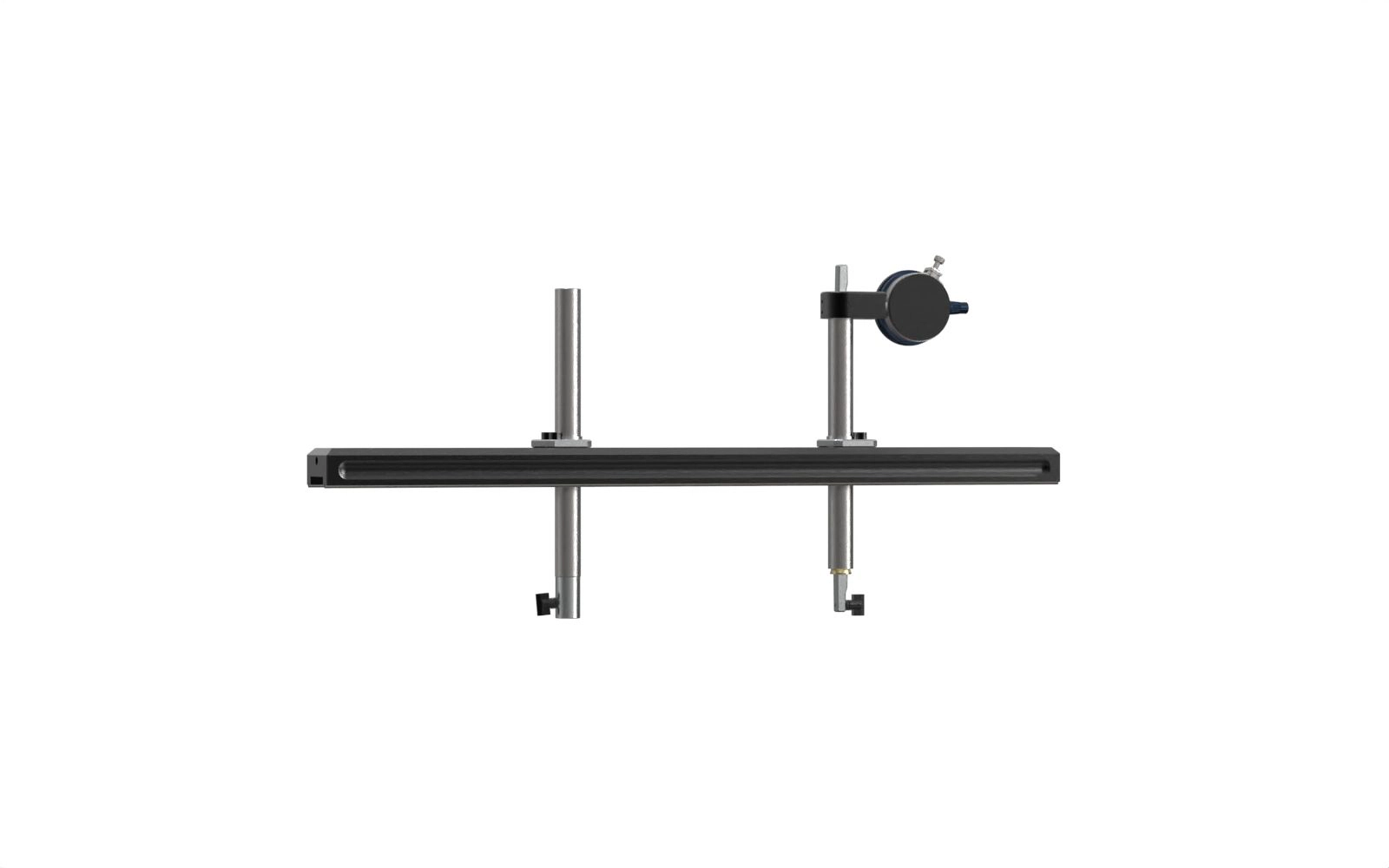

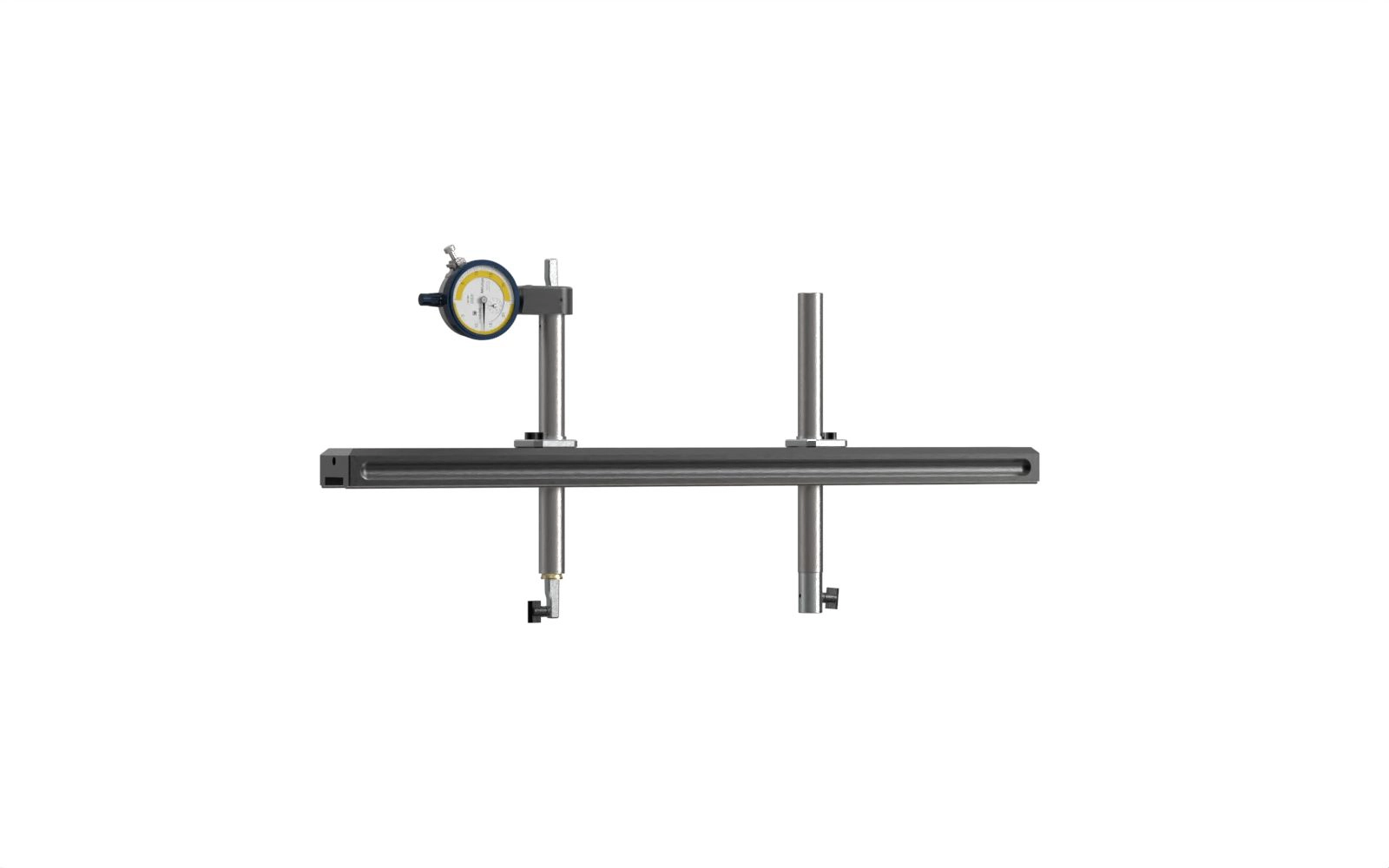

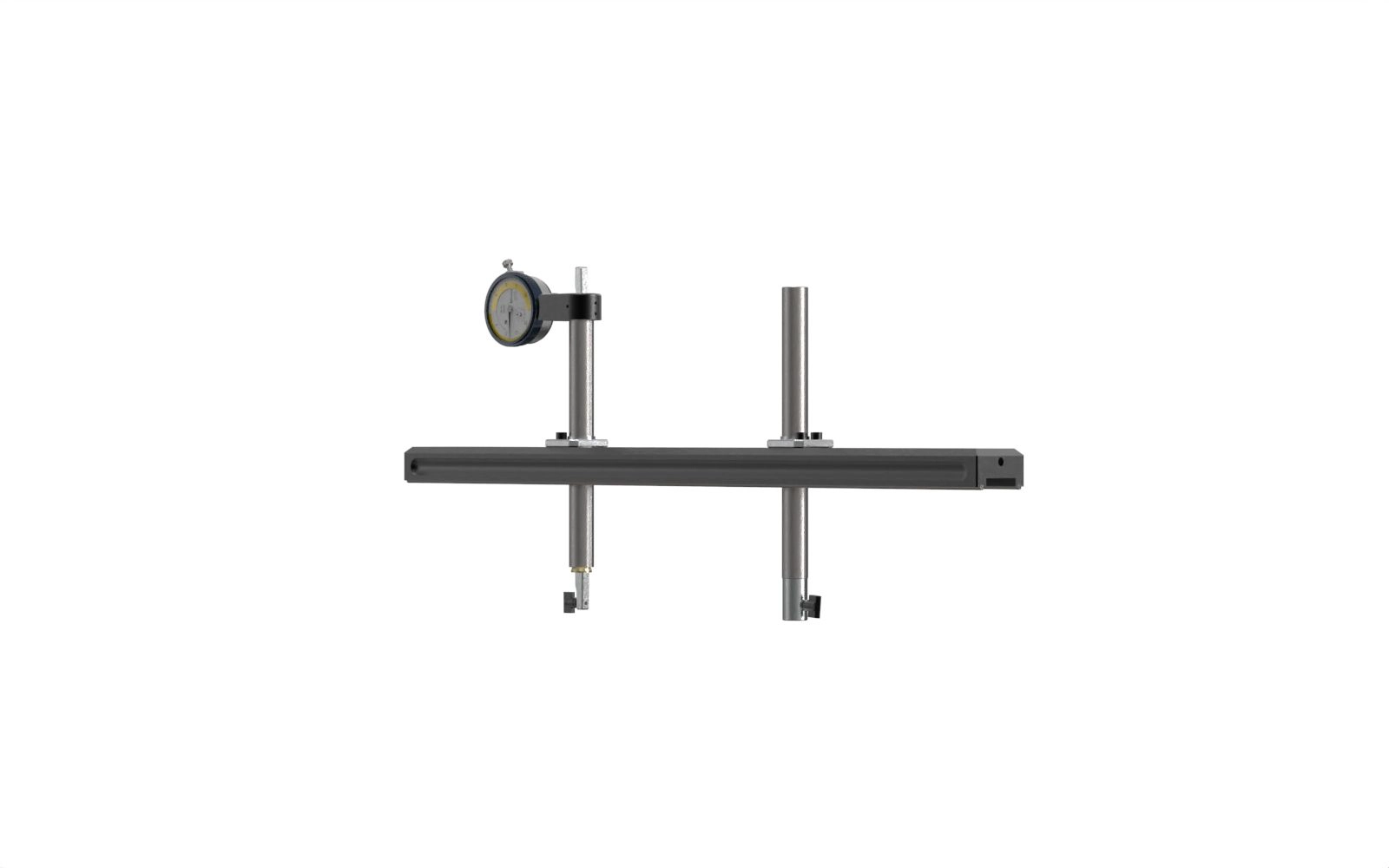

Visualization 360º 200MDC1358MD-7 BOX

Drag the cursor horizontally to view 360º
