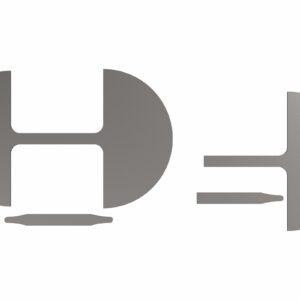

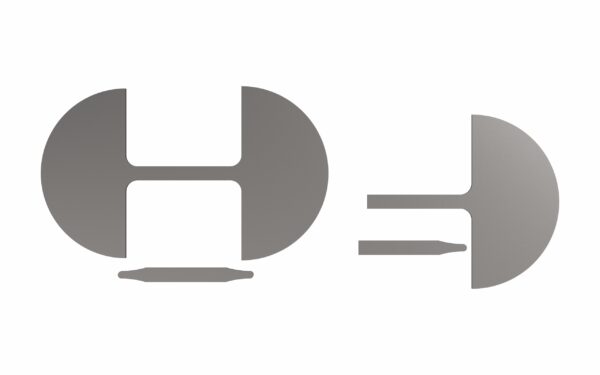

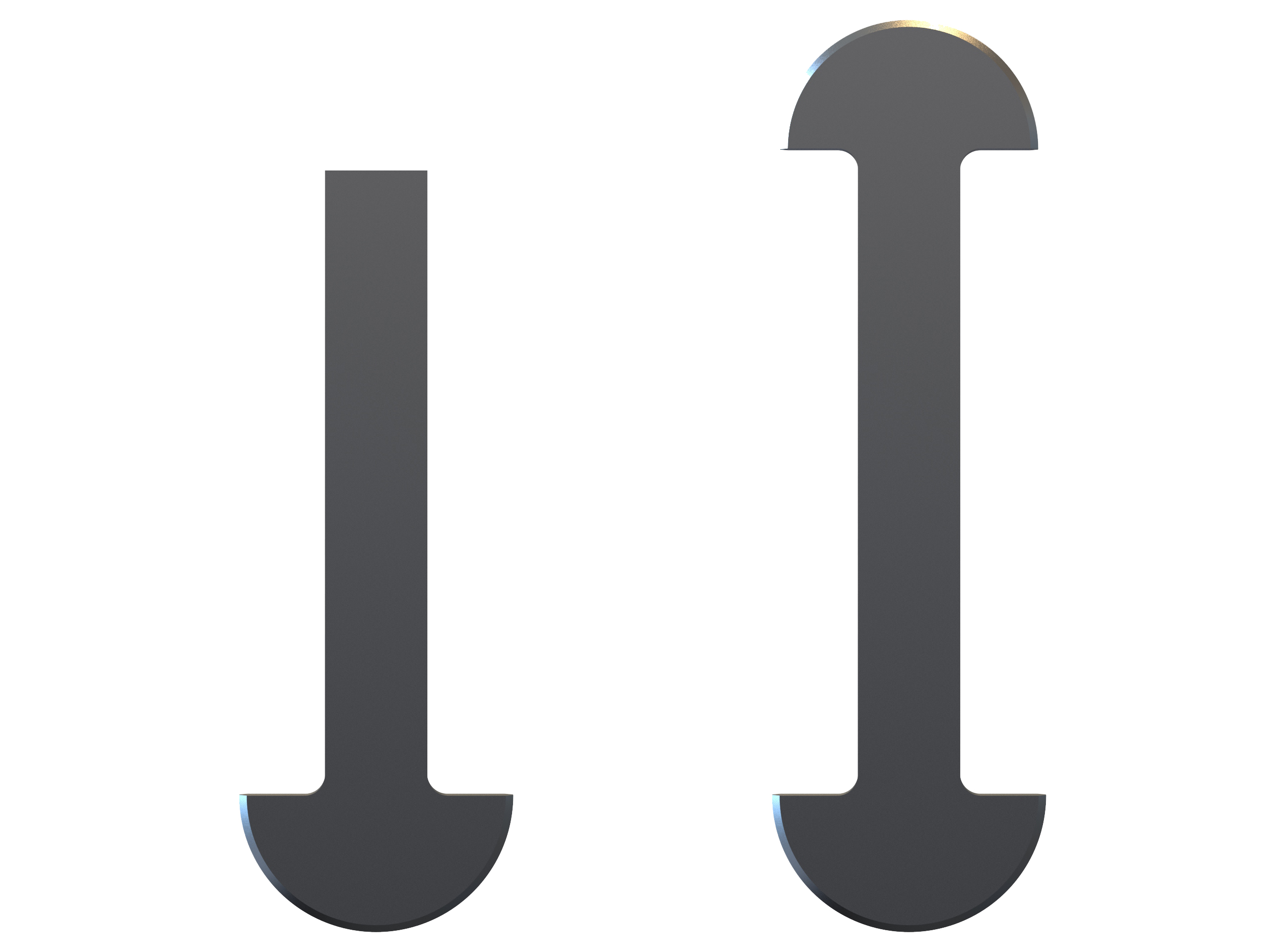

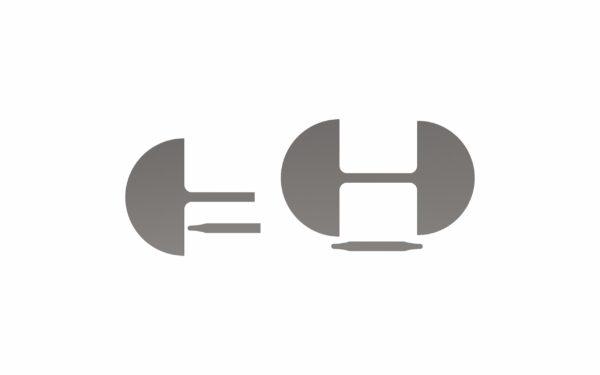

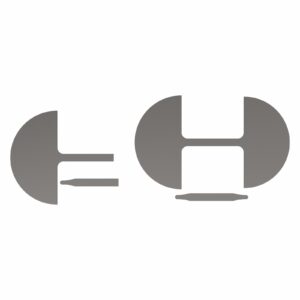

GO-NO GO SHEAVE GROOVE RADIUS

New, used under the manufacturing process with one end passes and another does not pass according to standard.
Worn, used to control the wear of pulleys in use.

Ø CABLEWORN CODENEW CODEØ CABLEWORN CODENEW CODE
 ¼”300PPD001300PPN0012 3/8”300PPD021300PPN021
5/16”300PPD002300PPN0022 ½”300PPD022300PPN022
3/8”300PPD003300PPN0032 5/8”300PPD023300PPN023
7/16”300PPD004300PPN0042 ¾”300PPD024300PPN024
 ½”300PPD005300PPN0052 7/8”300PPD025300PPN025
9/16”300PPD006300PPN0063”300PPD026300PPN026
5/8”300PPD007300PPN0073 1/8”300PPD027300PPN027
¾”300PPD008300PPN0083 ¼”300PPD028300PPN028
7/8”300PPD009300PPN0093 3/8”300PPD029300PPN029
1”300PPD010300PPN0103 ½”300PPD030300PPN030
1 1/8”300PPD011300PPN0113 ¾”300PPD031300PPN031
1 ¼”300PPD012300PPN0124”300PPD032300PPN032
1 3/8”300PPD013300PPN0134 ¼”300PPD033300PPN033
1 ½”300PPD014300PPN0144 ½”300PPD034300PPN034
1 5/8”300PPD015300PPN0154 ¾”300PPD035300PPN035
1 ¾”300PPD016300PPN0165”300PPD036300PPN036
1 7/8”300PPD017300PPN0175 ¼”300PPD037300PPN037
2”300PPD018300PPN0185 ½”300PPD038300PPN038
2 1/8”300PPD019300PPN0195 ¾”300PPD039300PPN039
2 ¼”300PPD020300PPN0206”300PPD040300PPN040

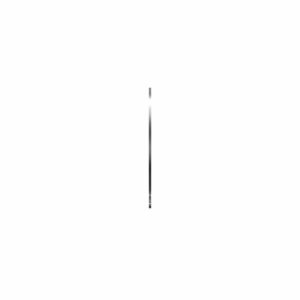

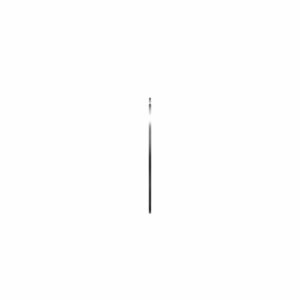

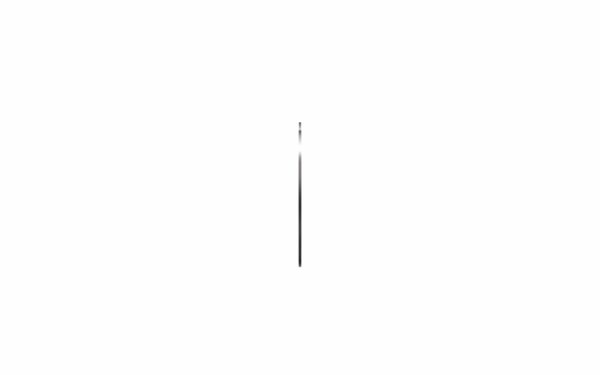

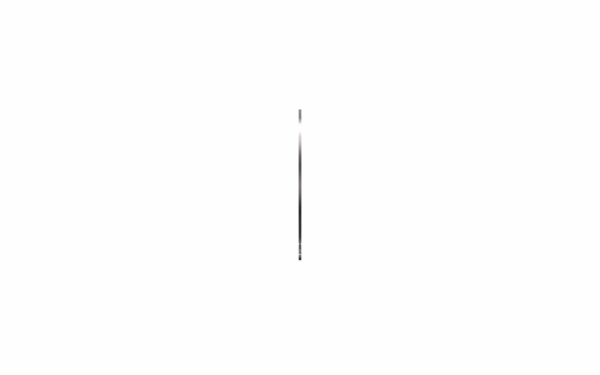

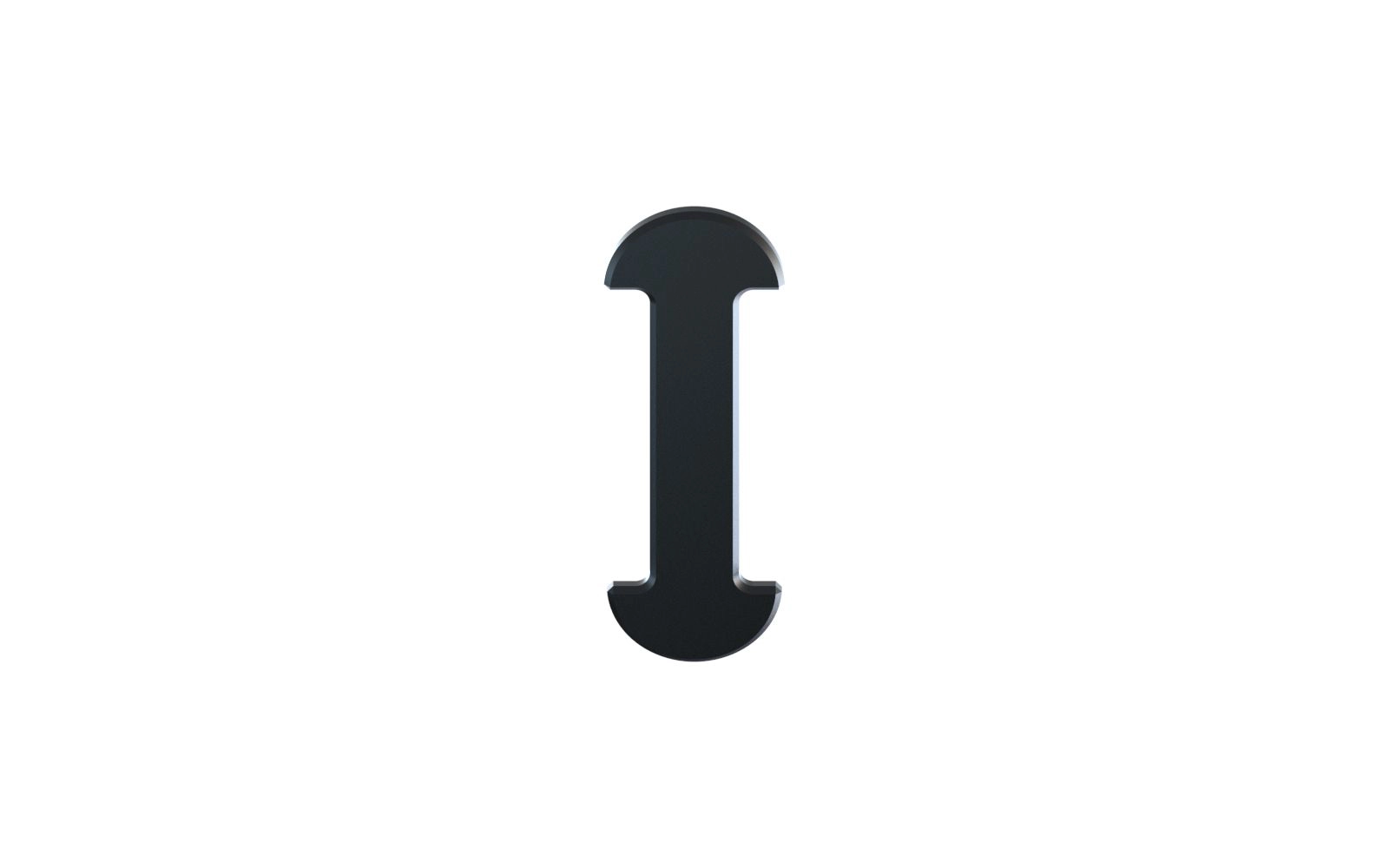

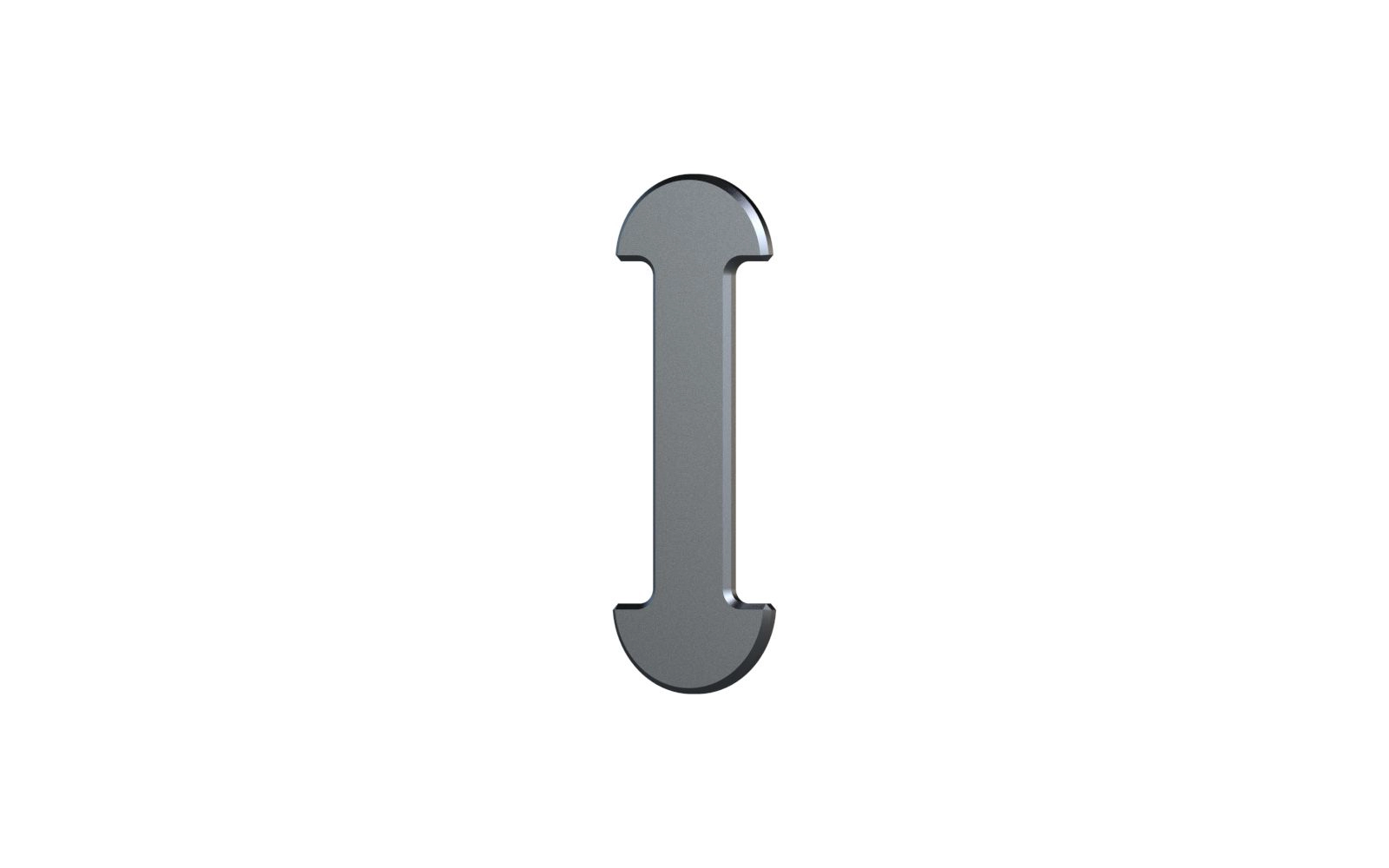

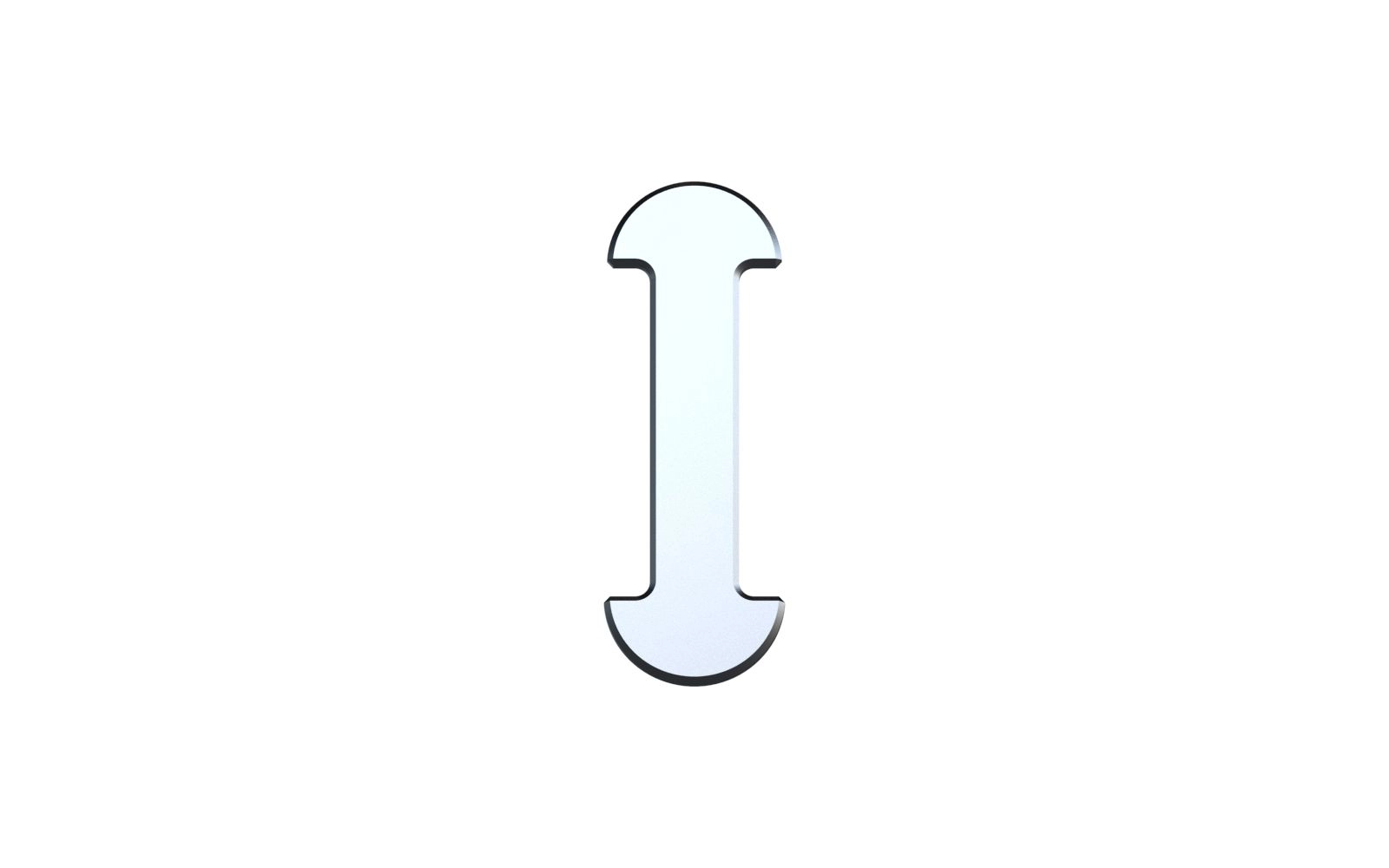

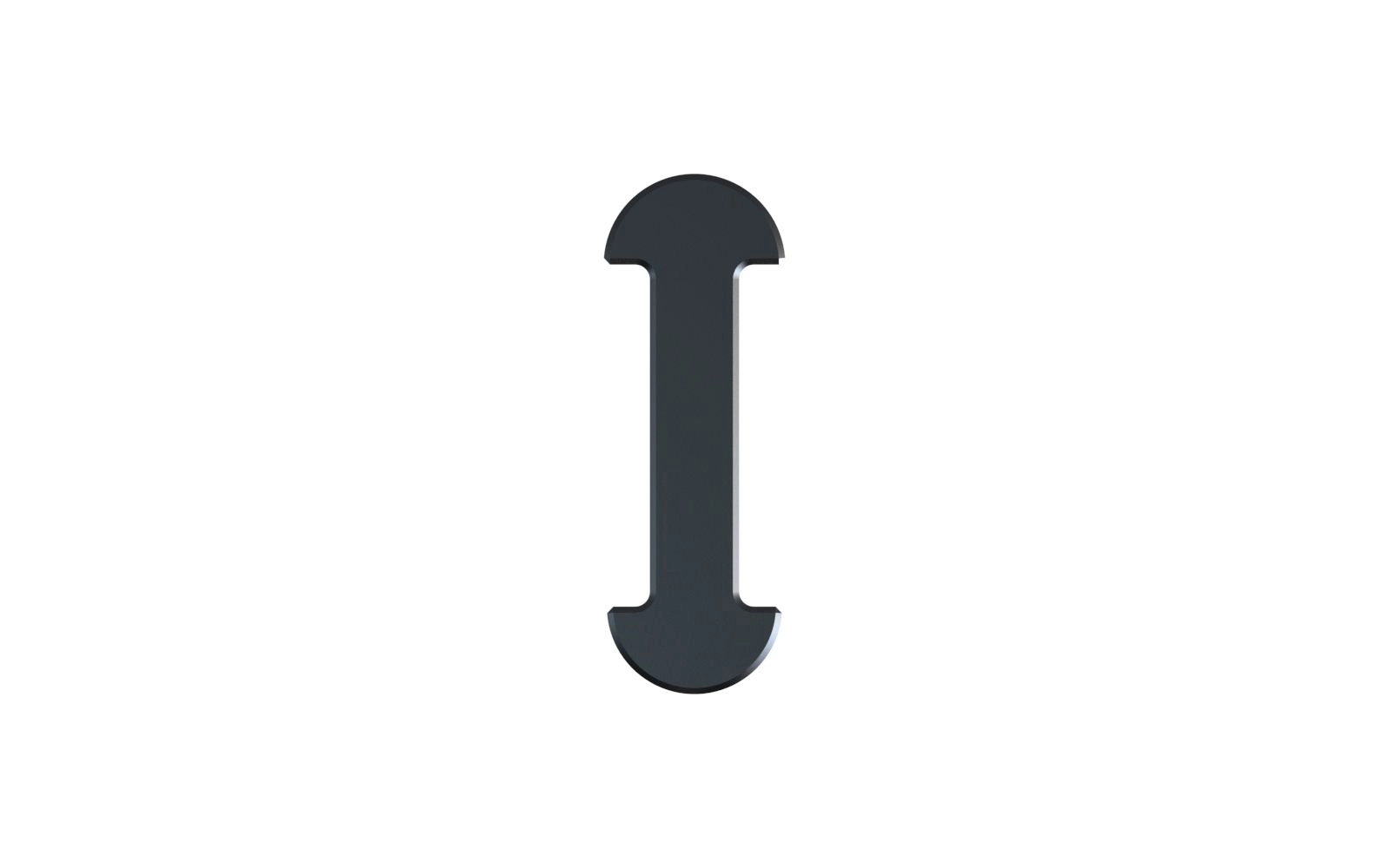

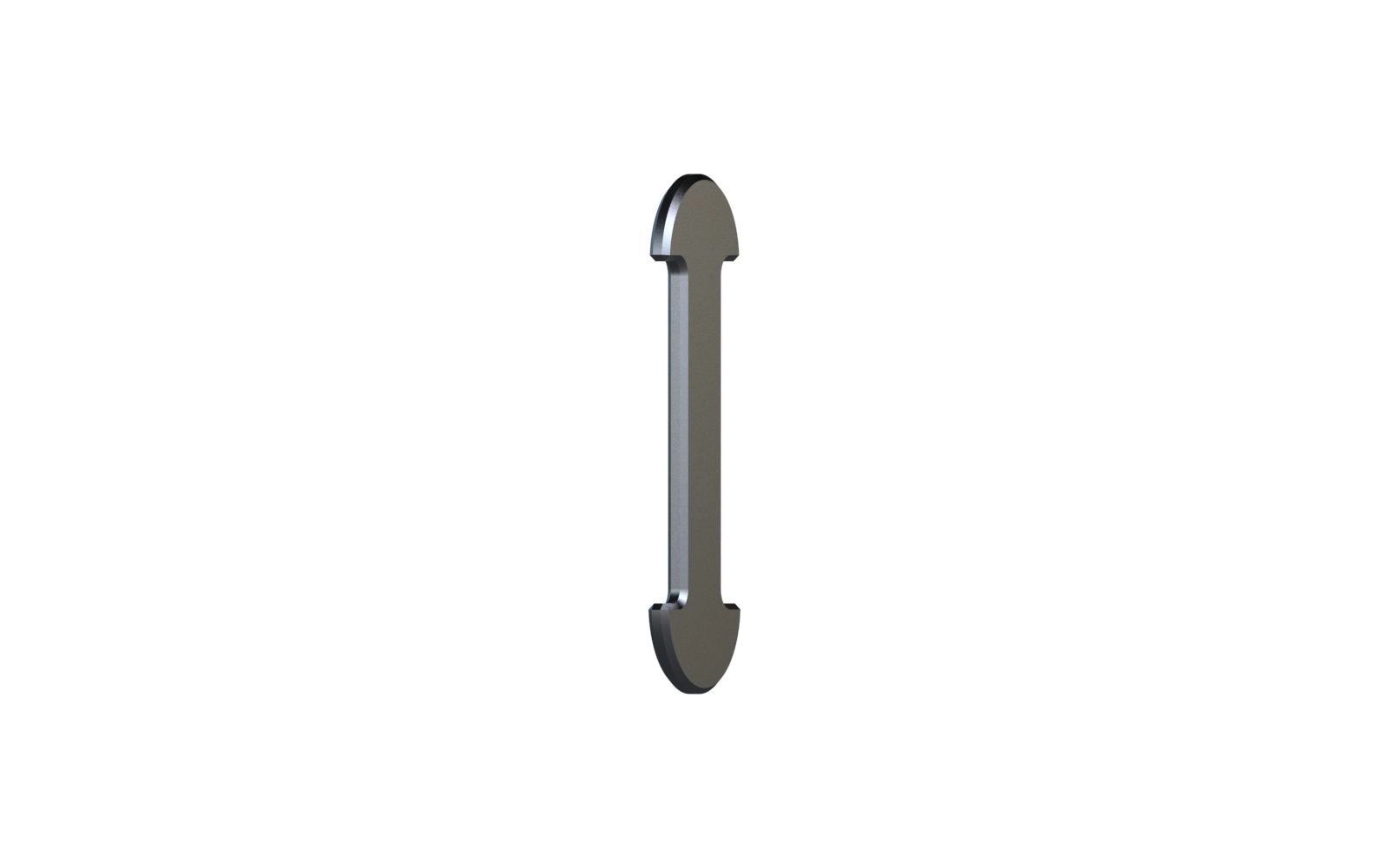

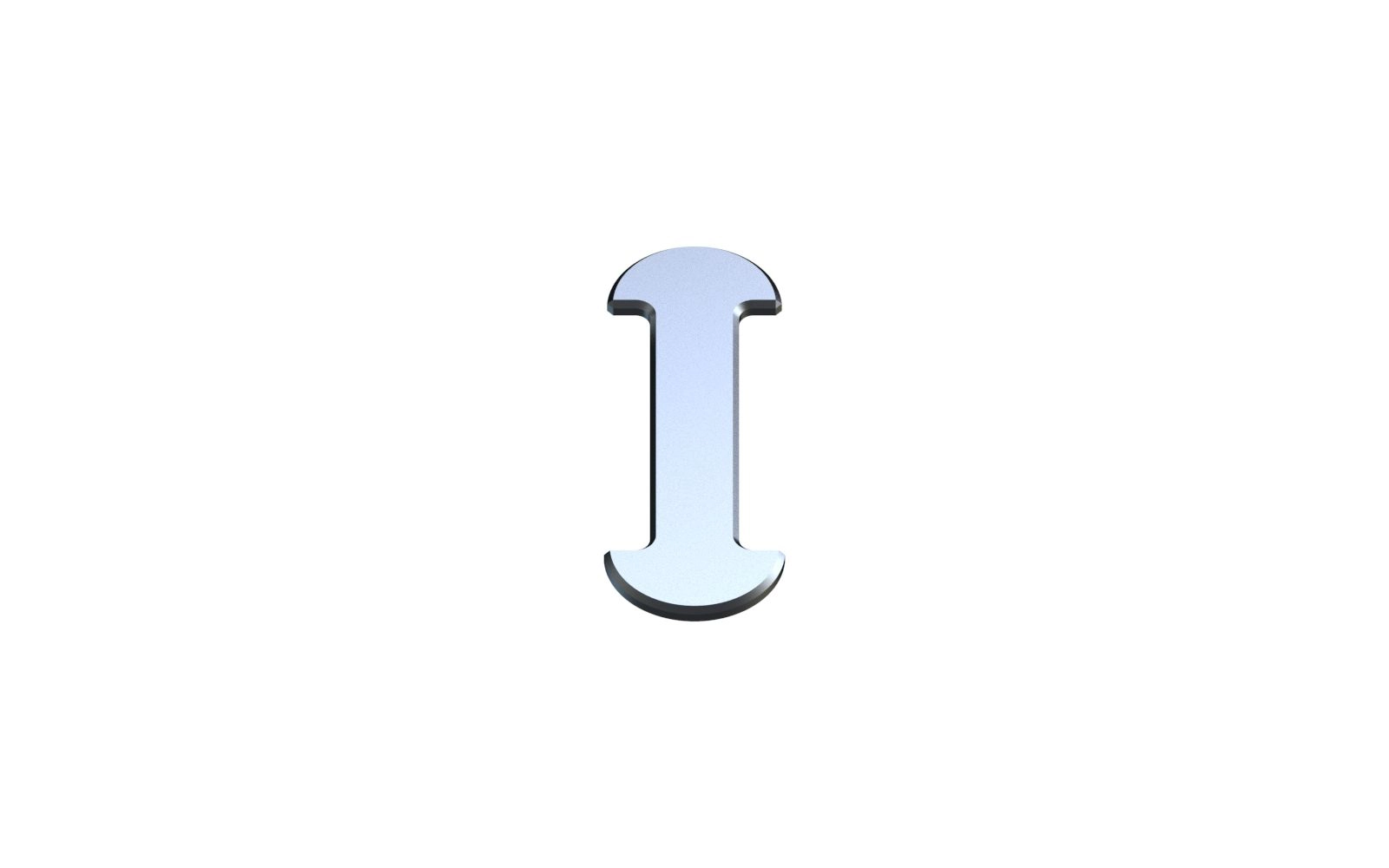

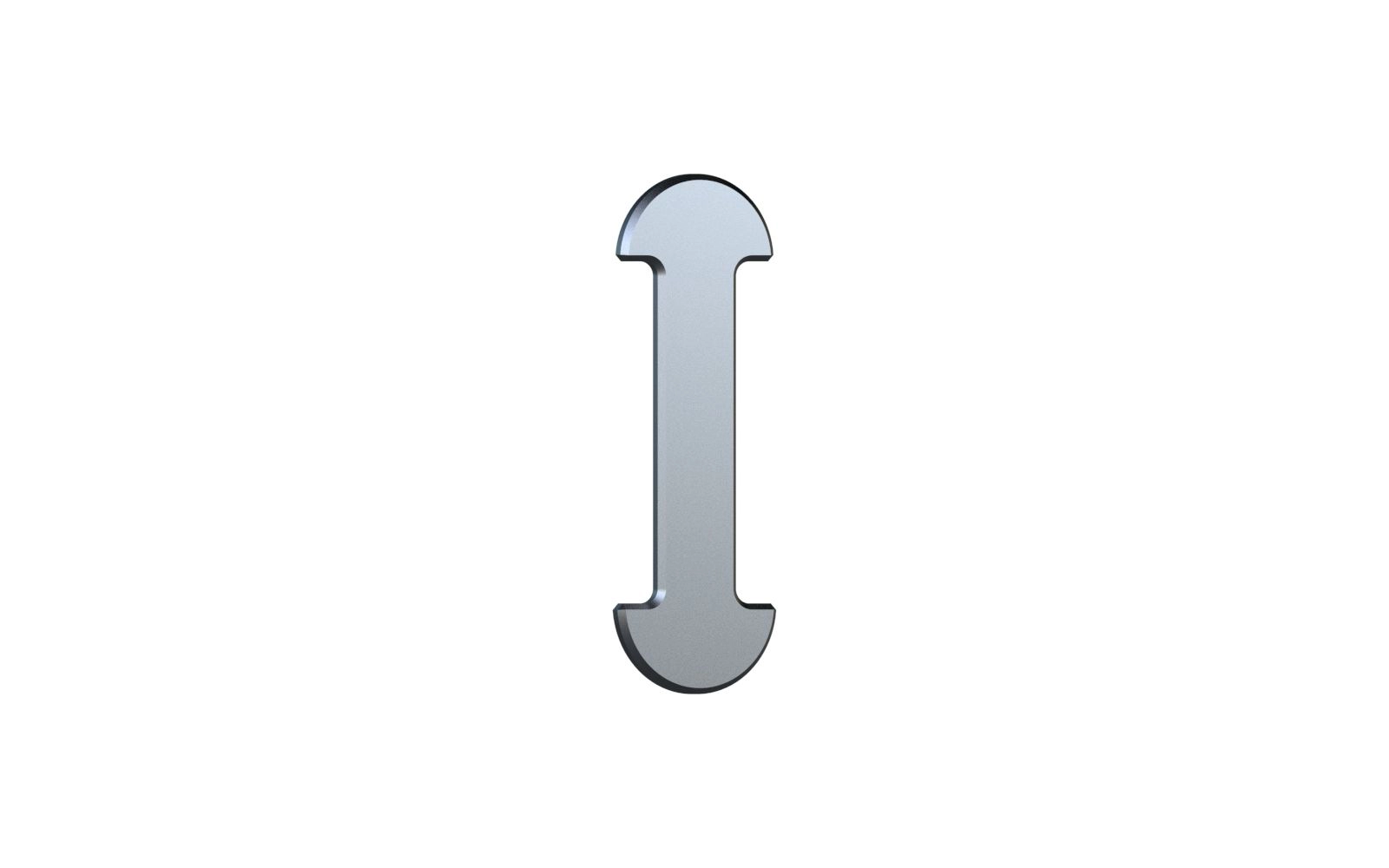

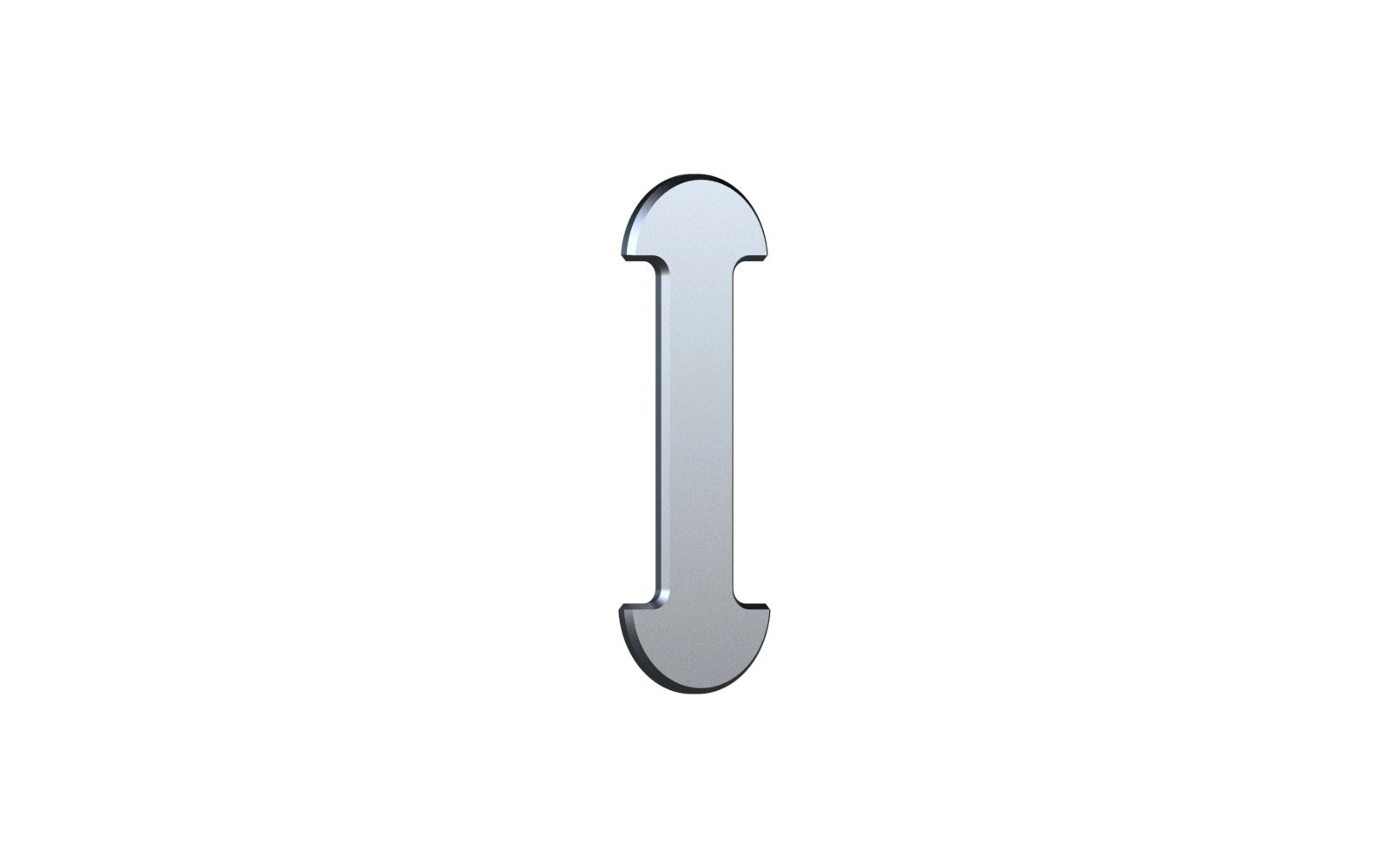

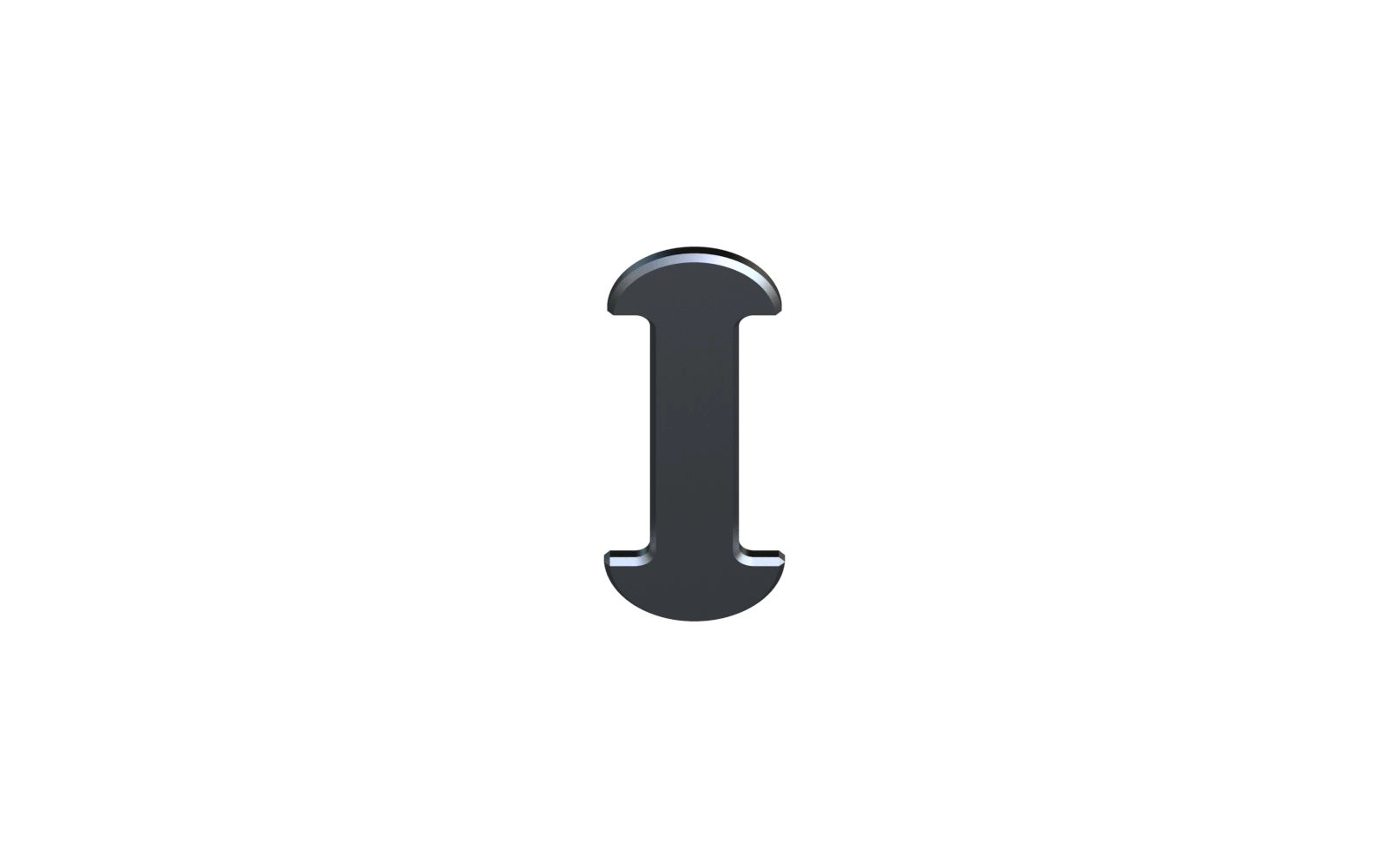

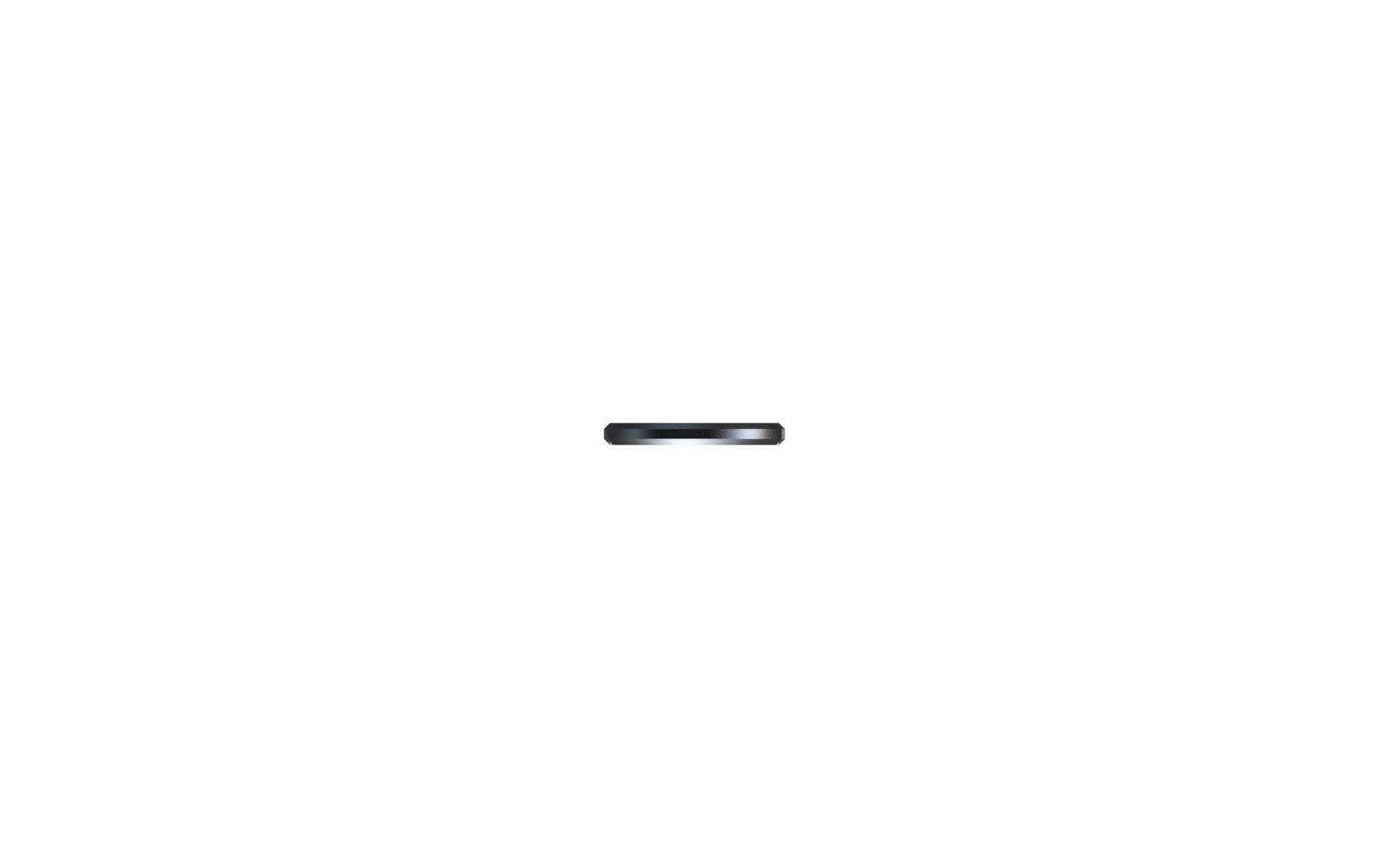

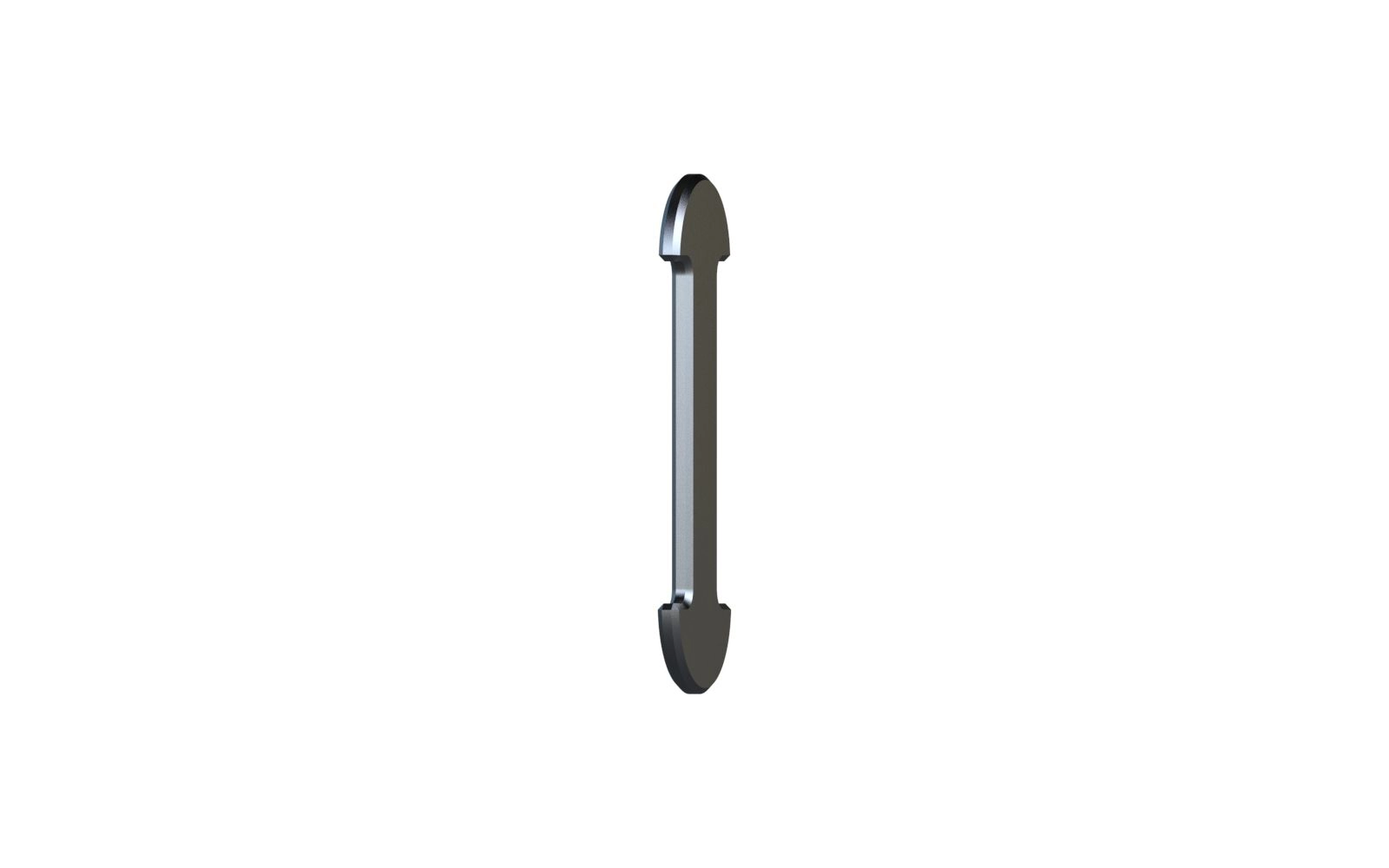

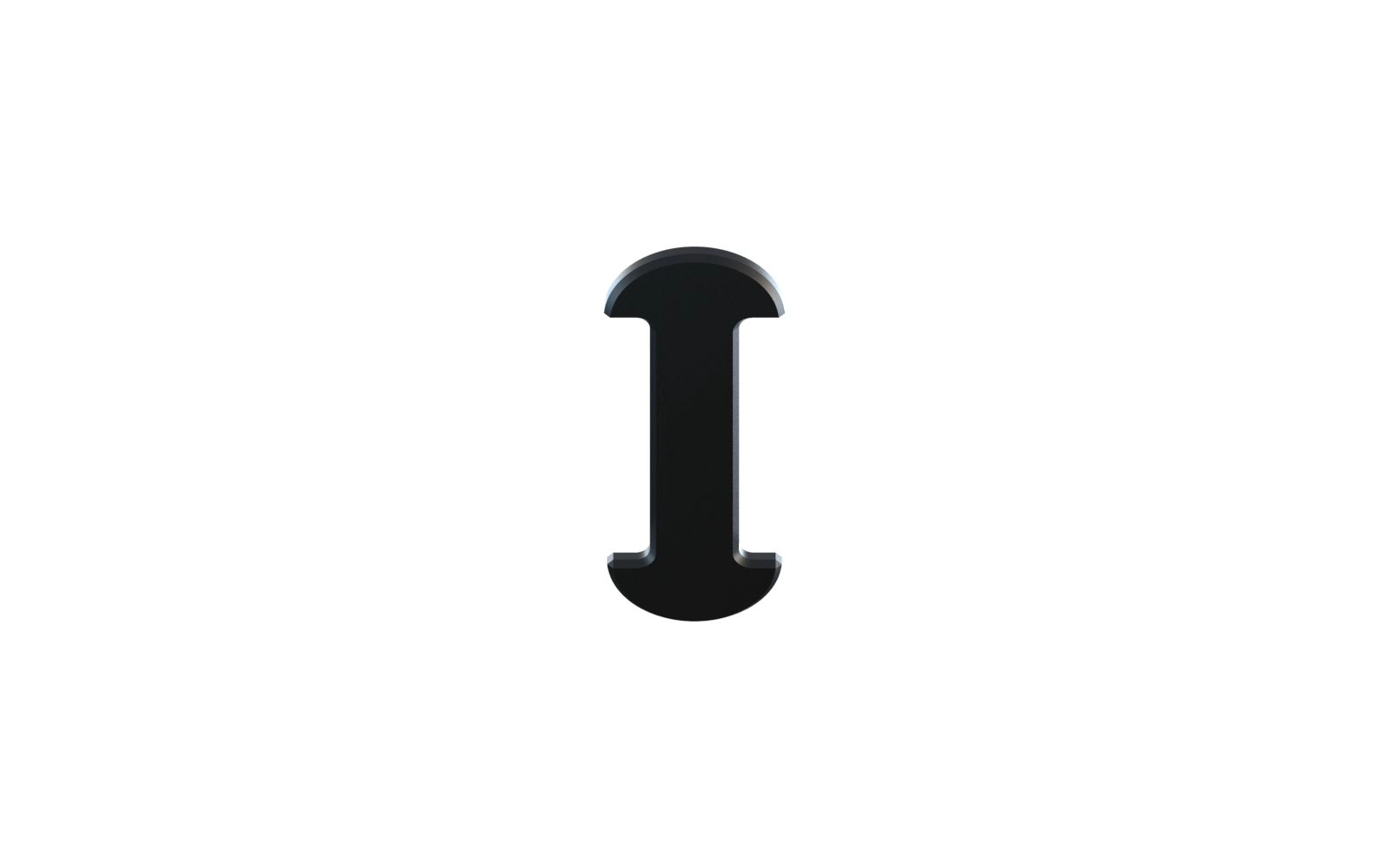

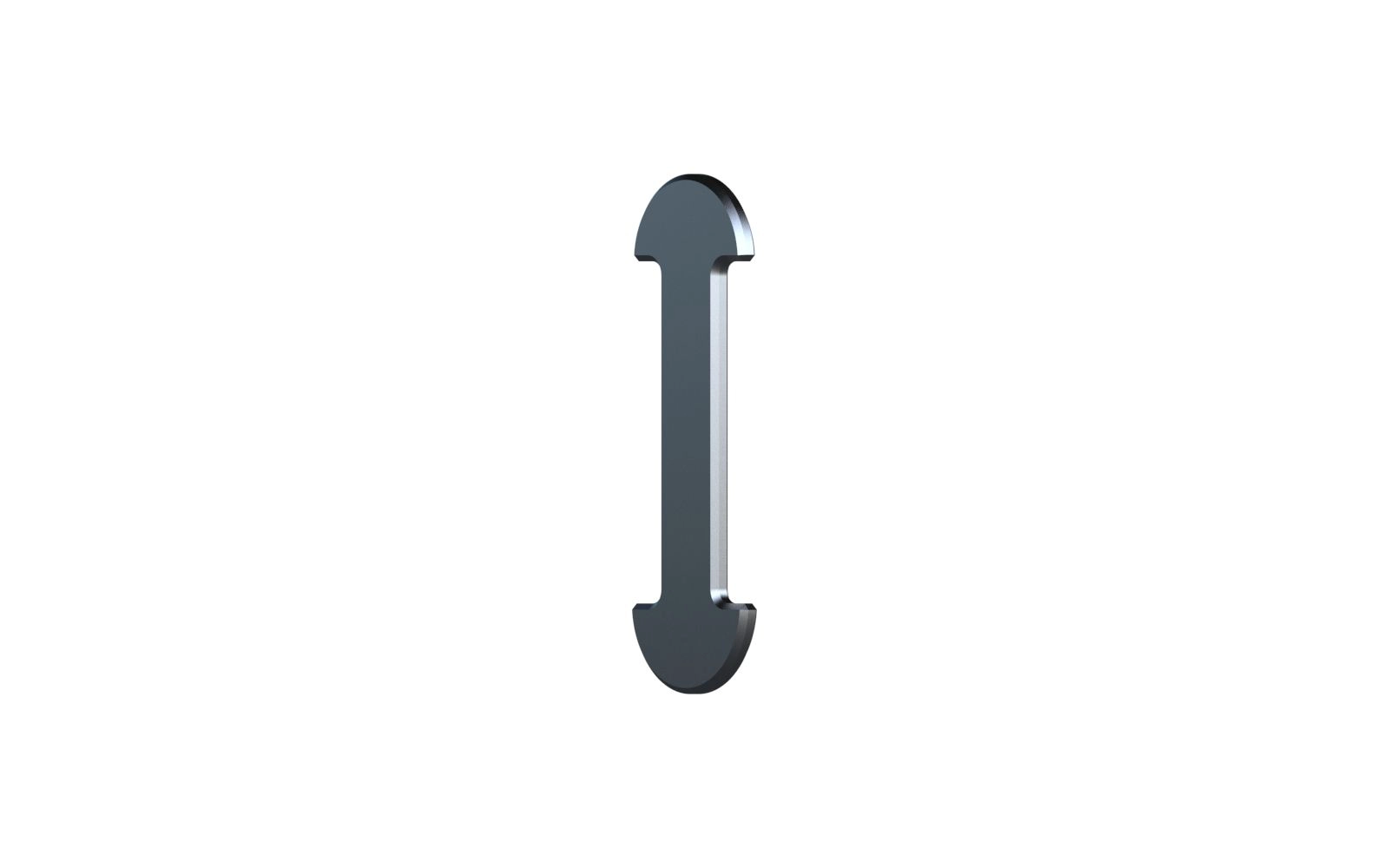

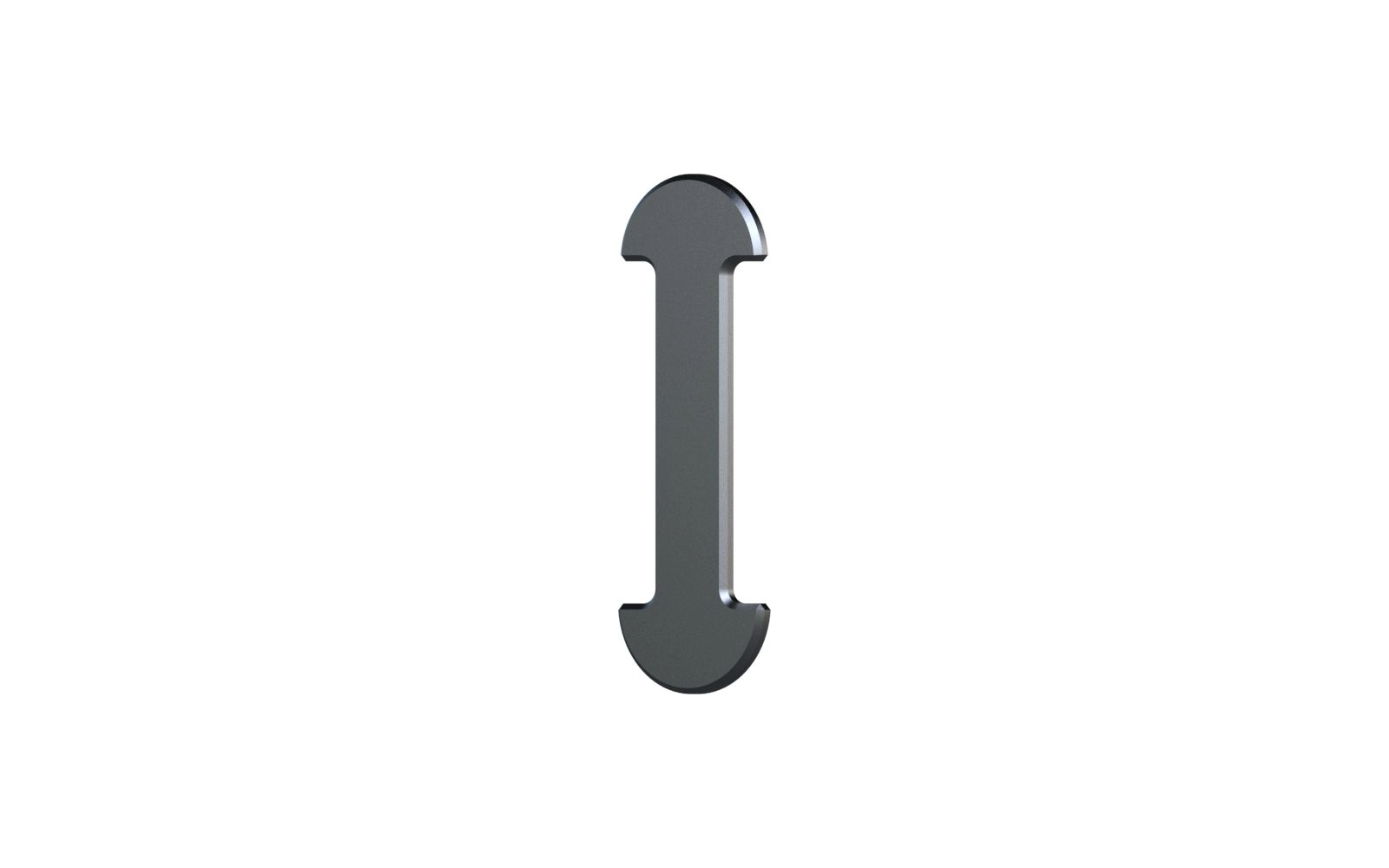

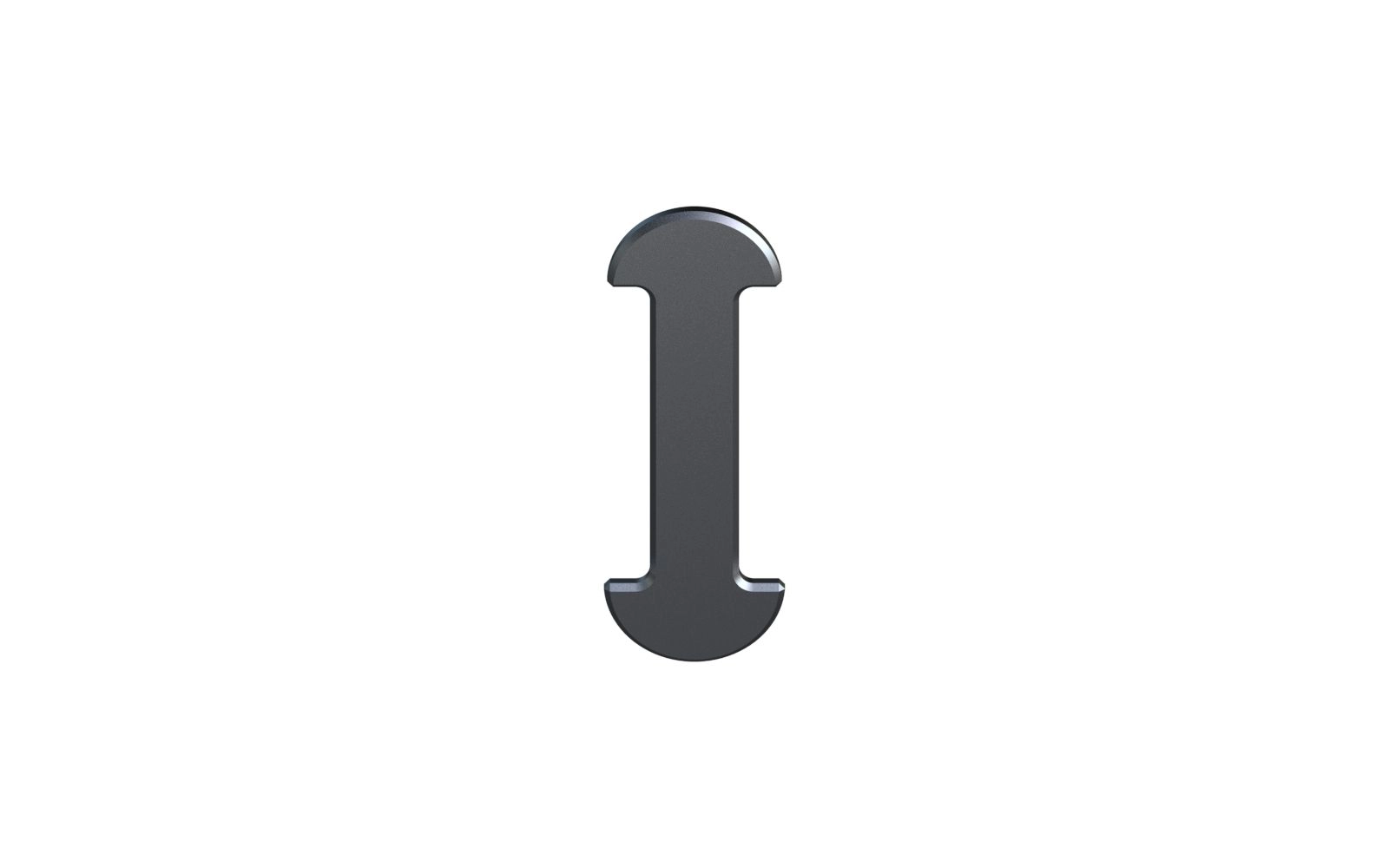

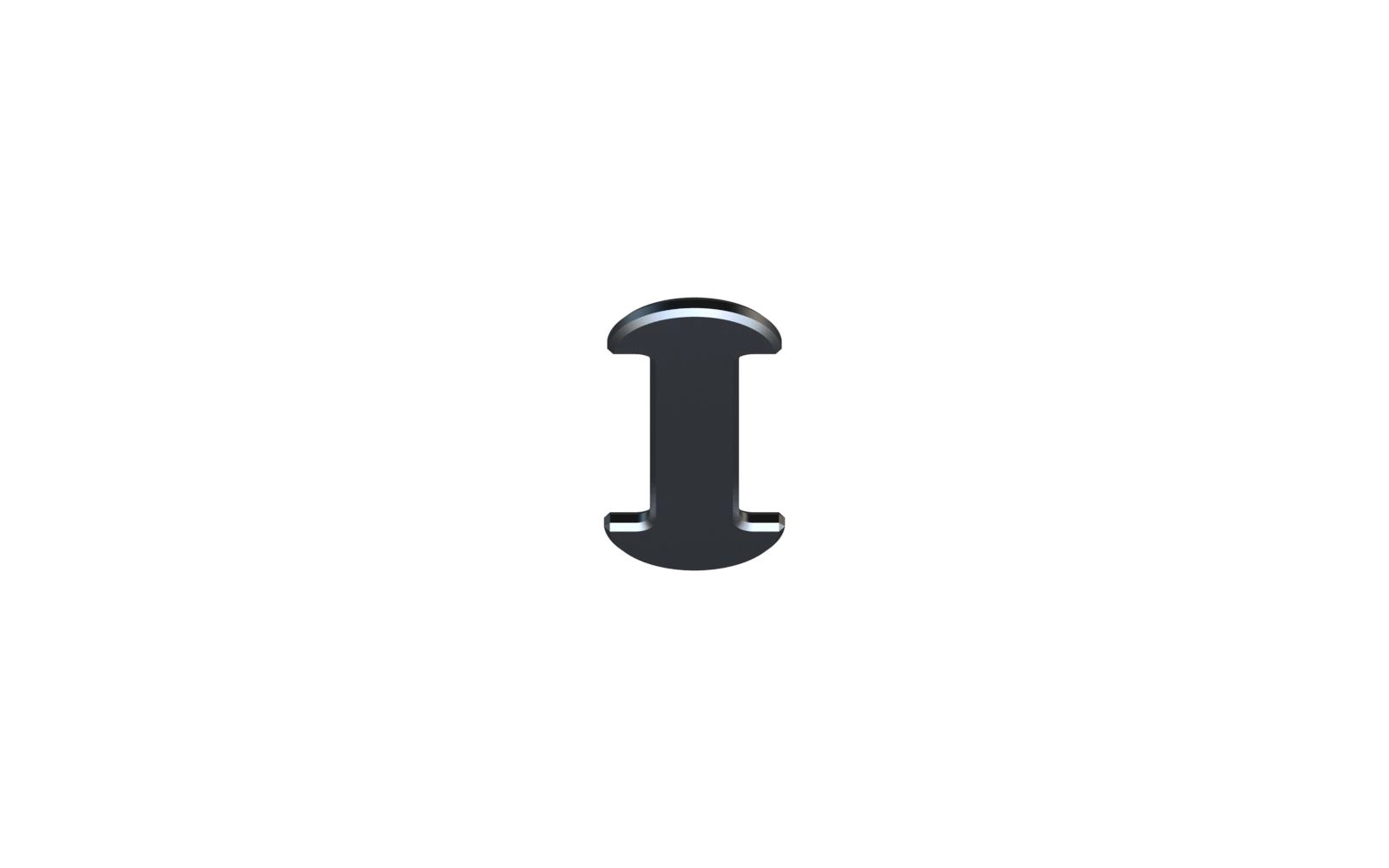

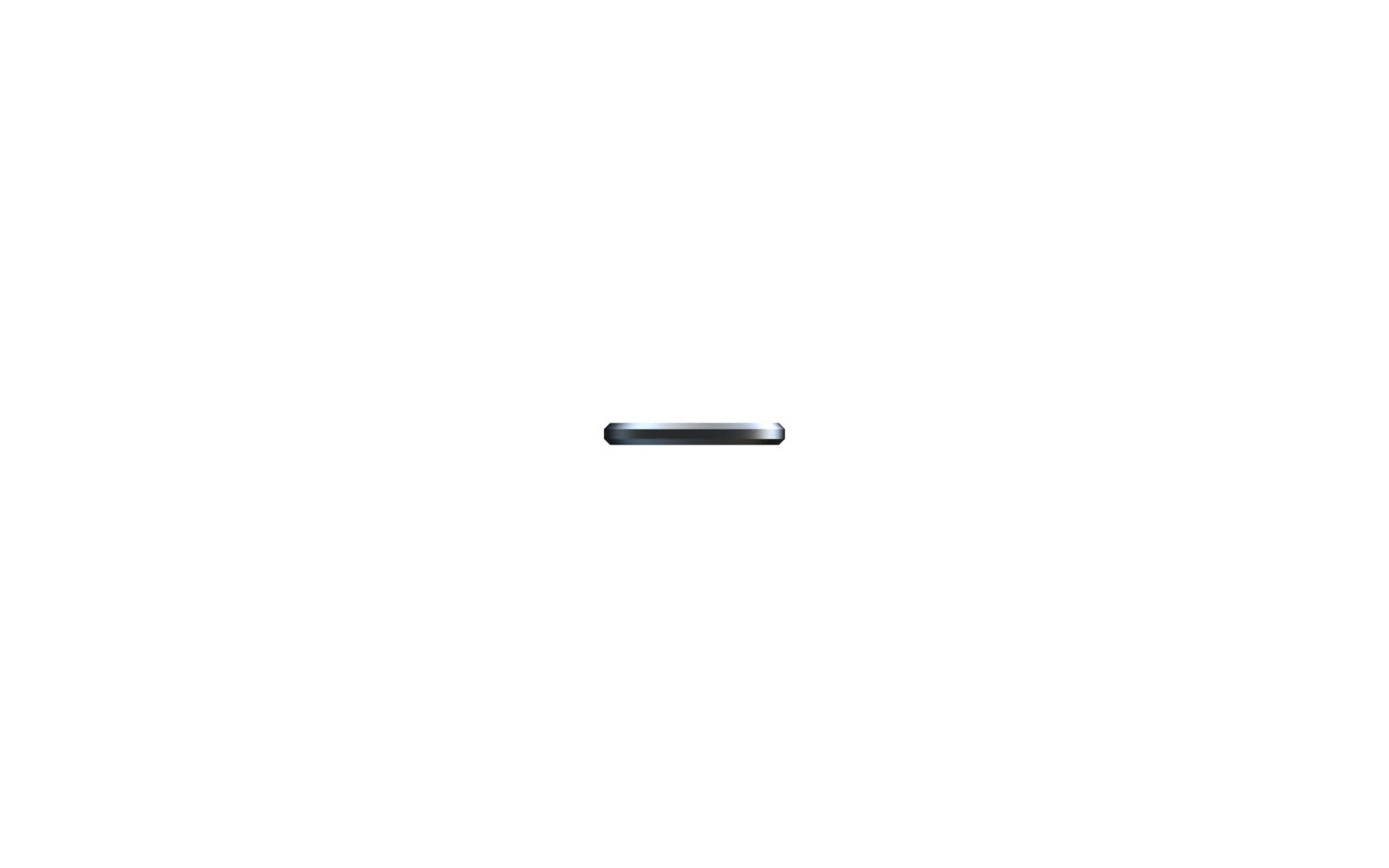

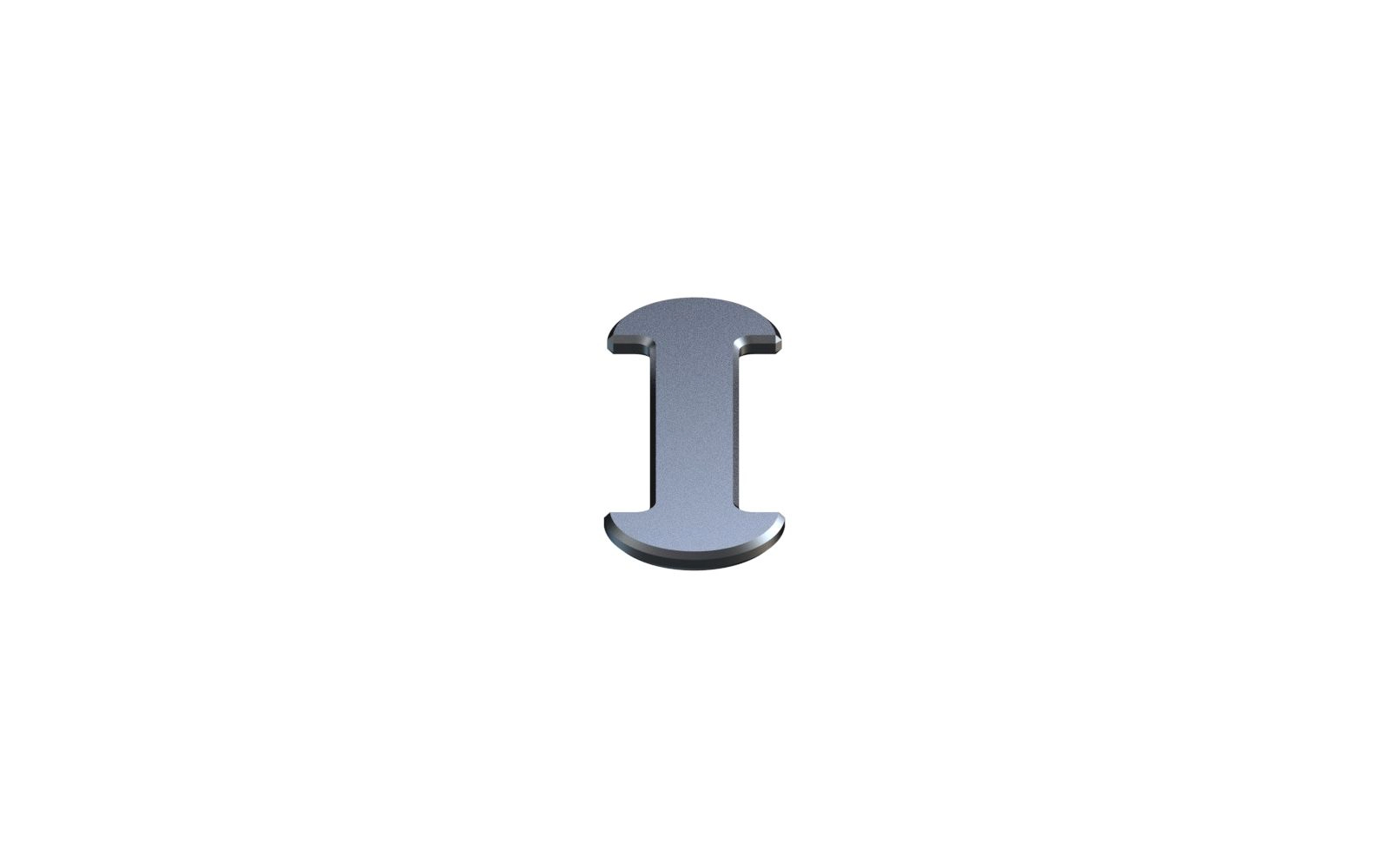

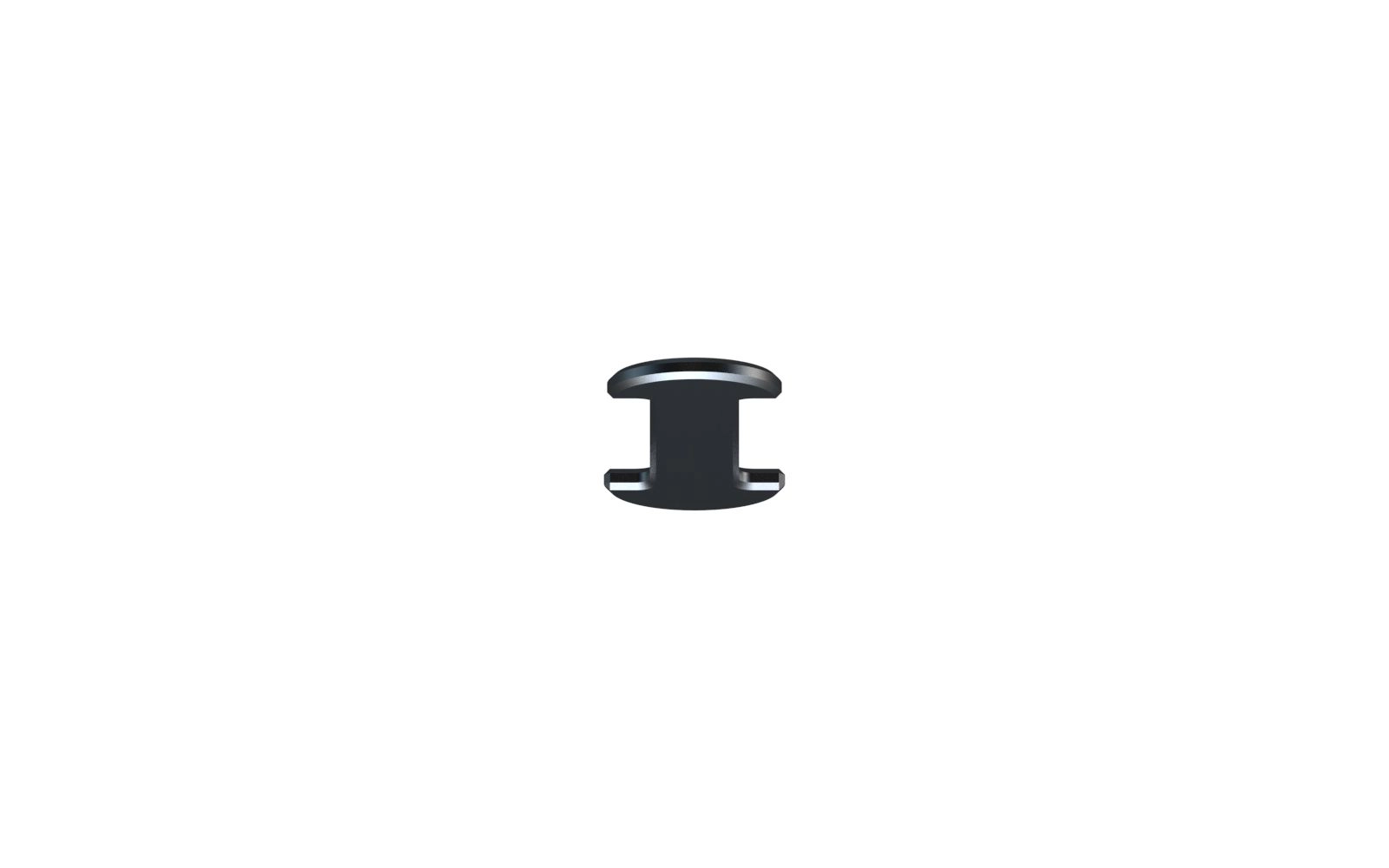

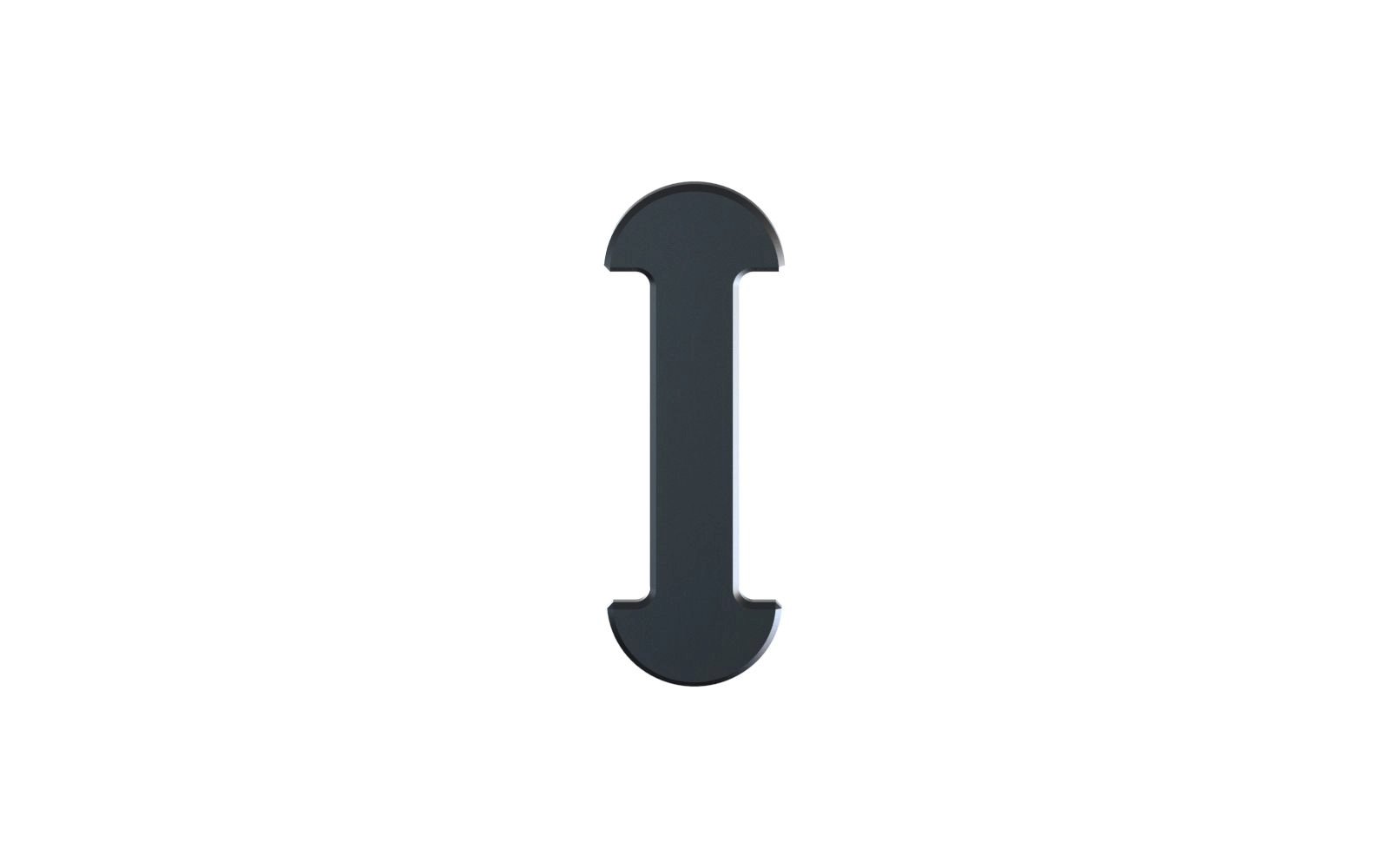

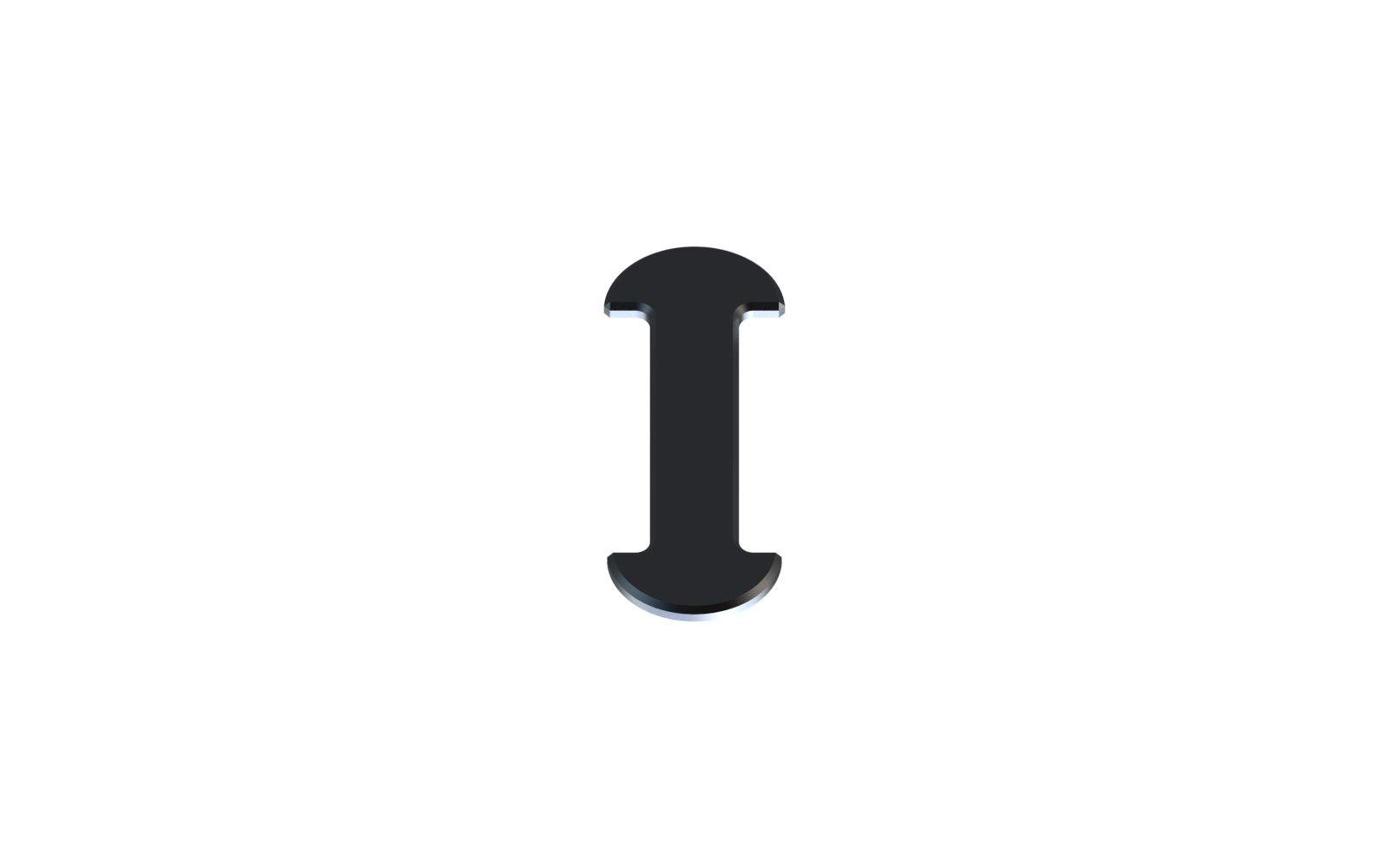

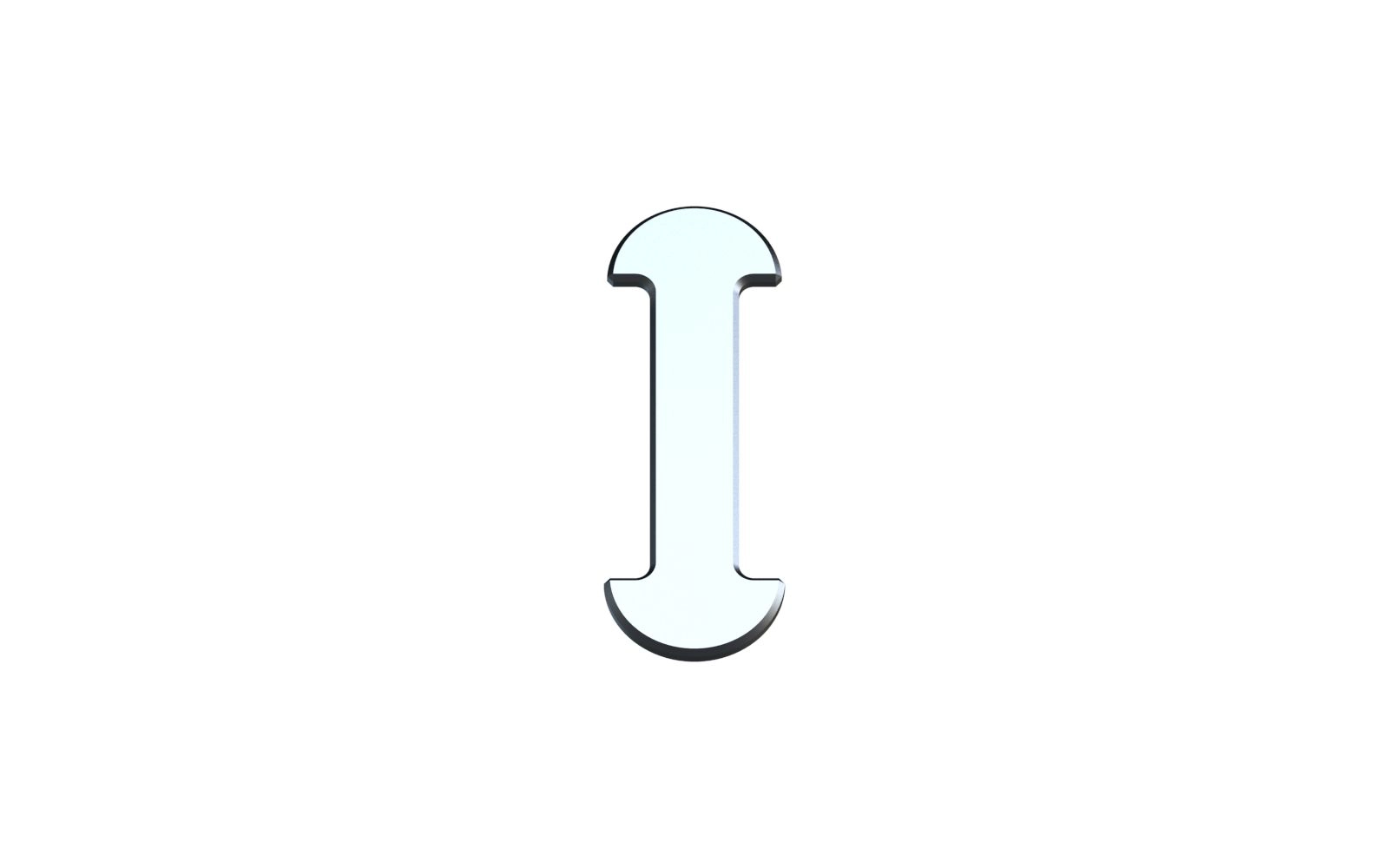

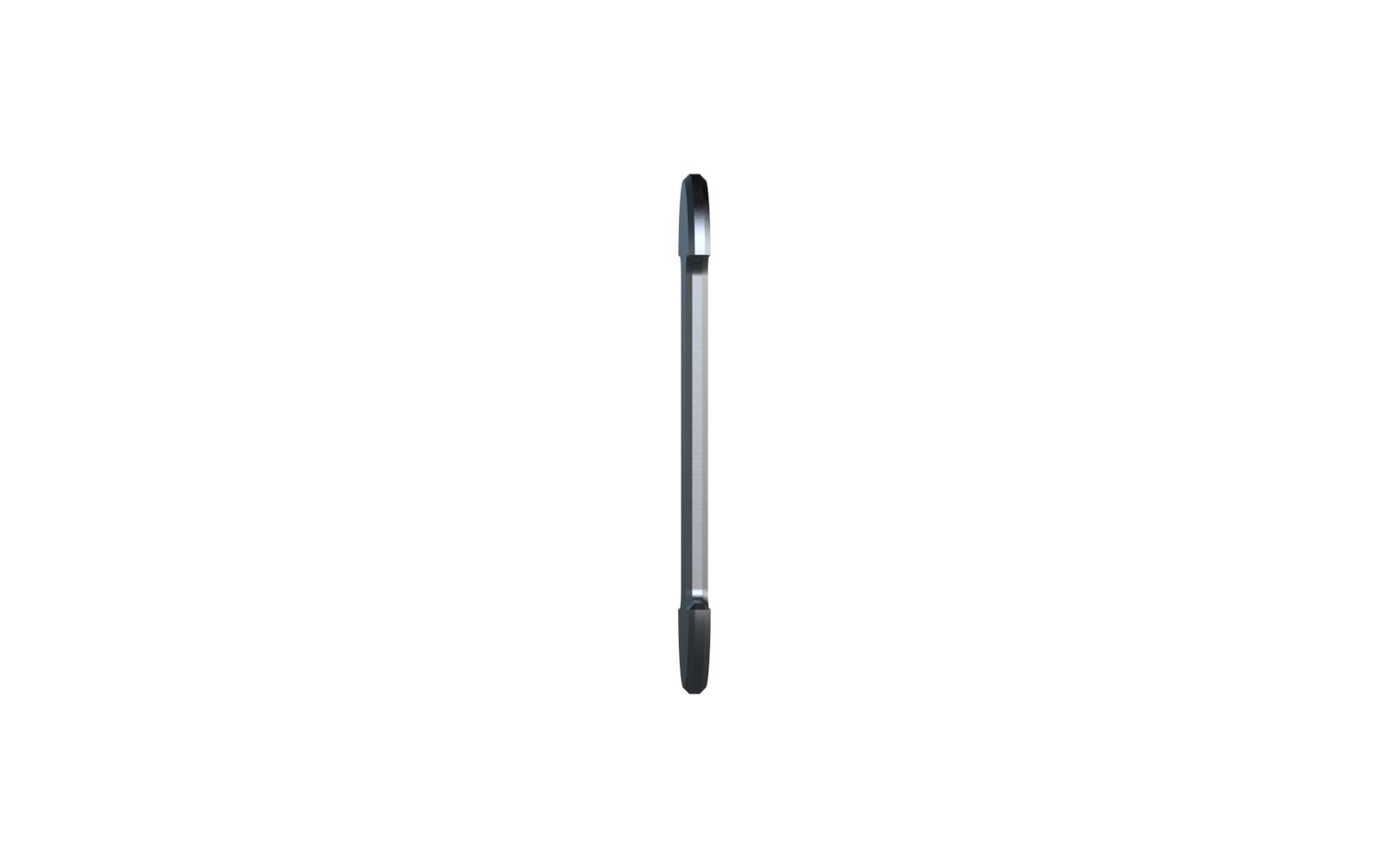

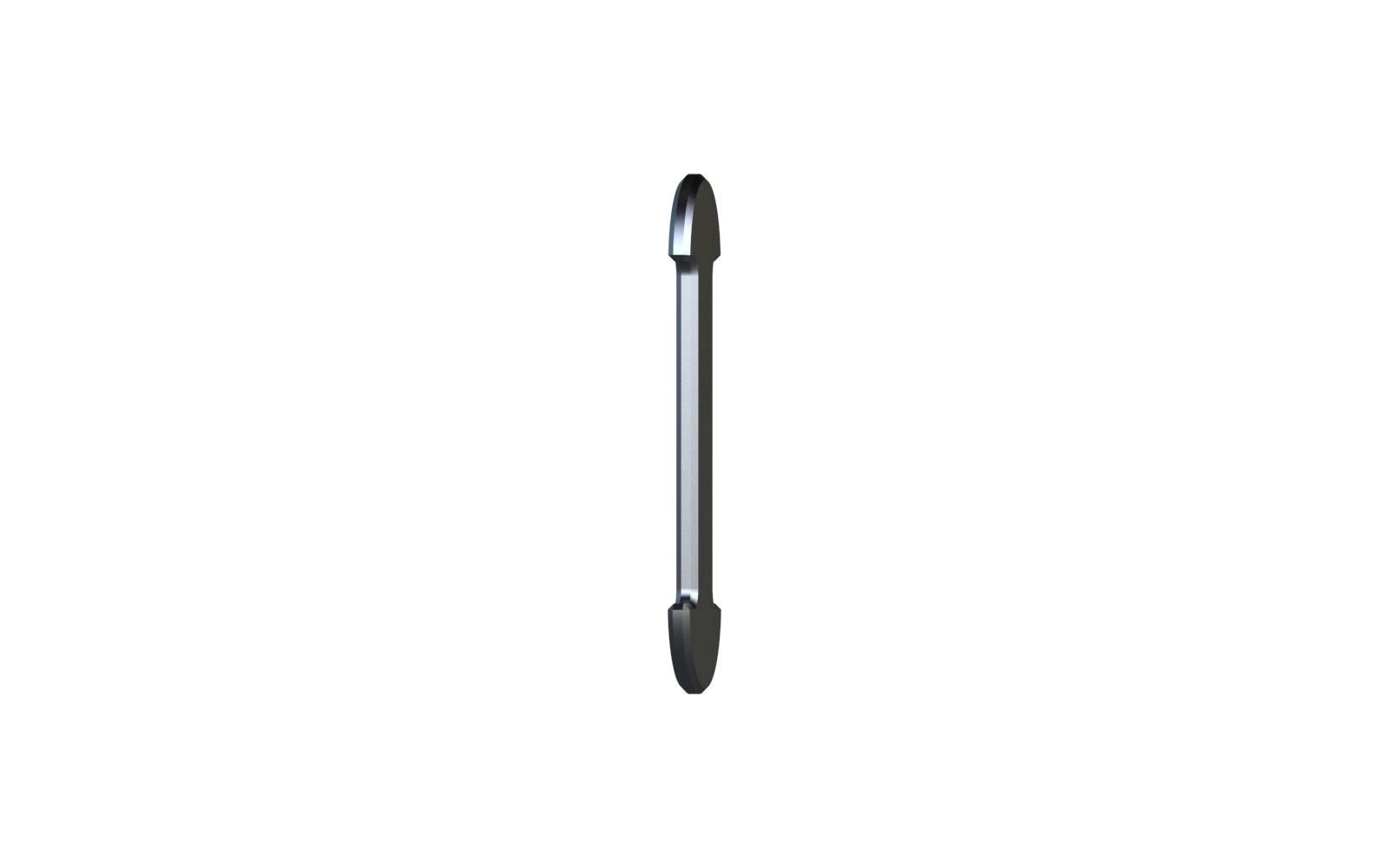

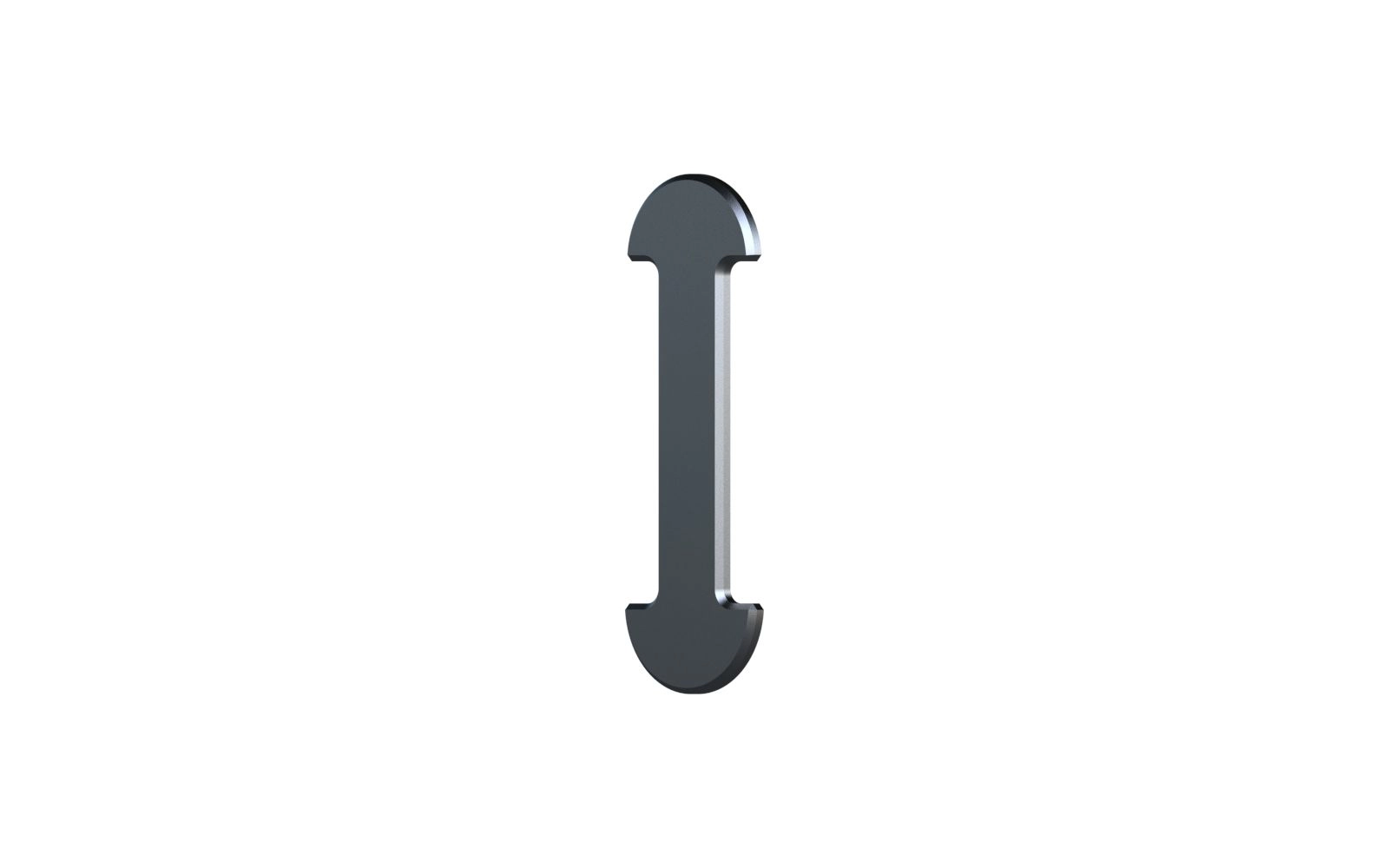

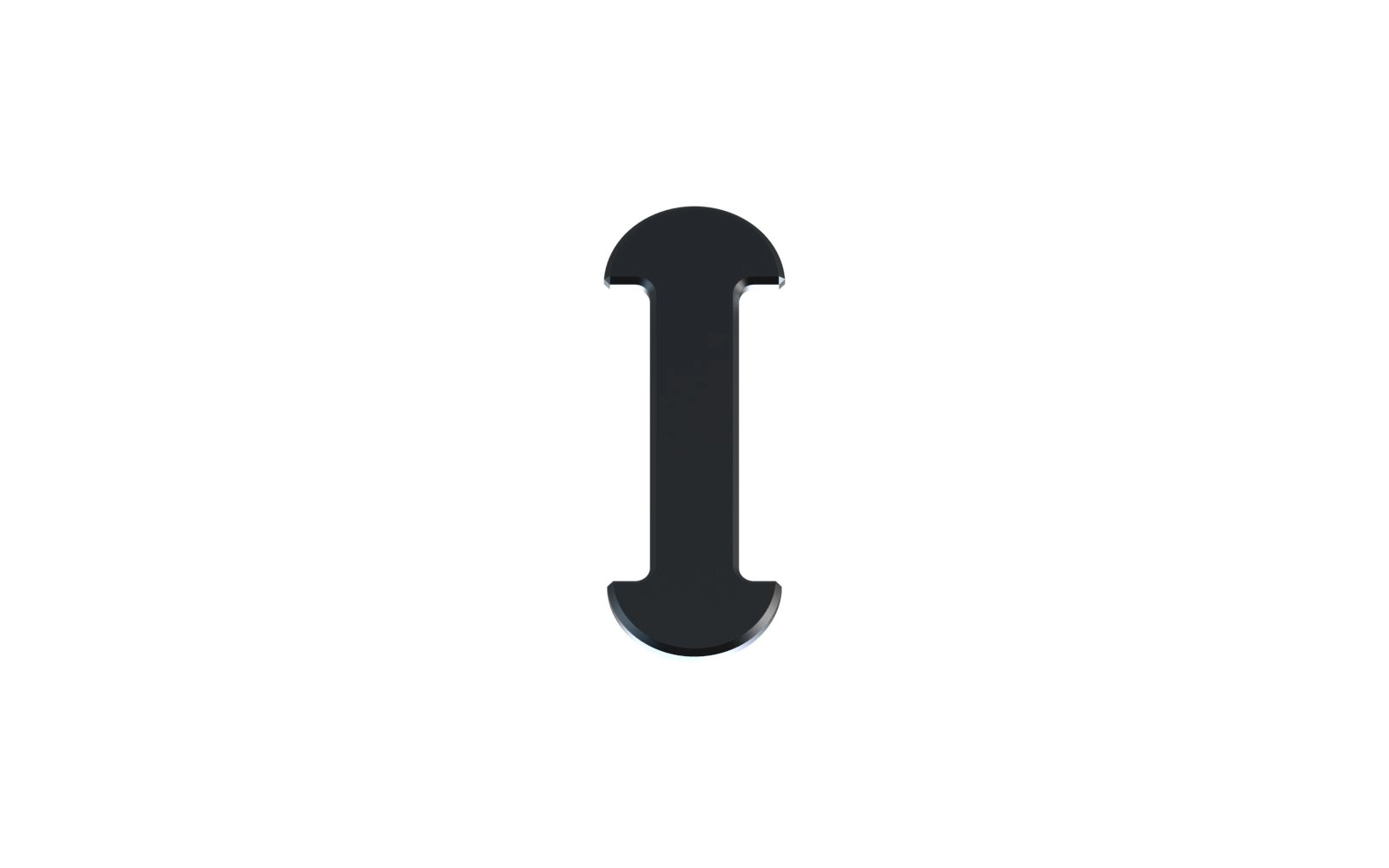

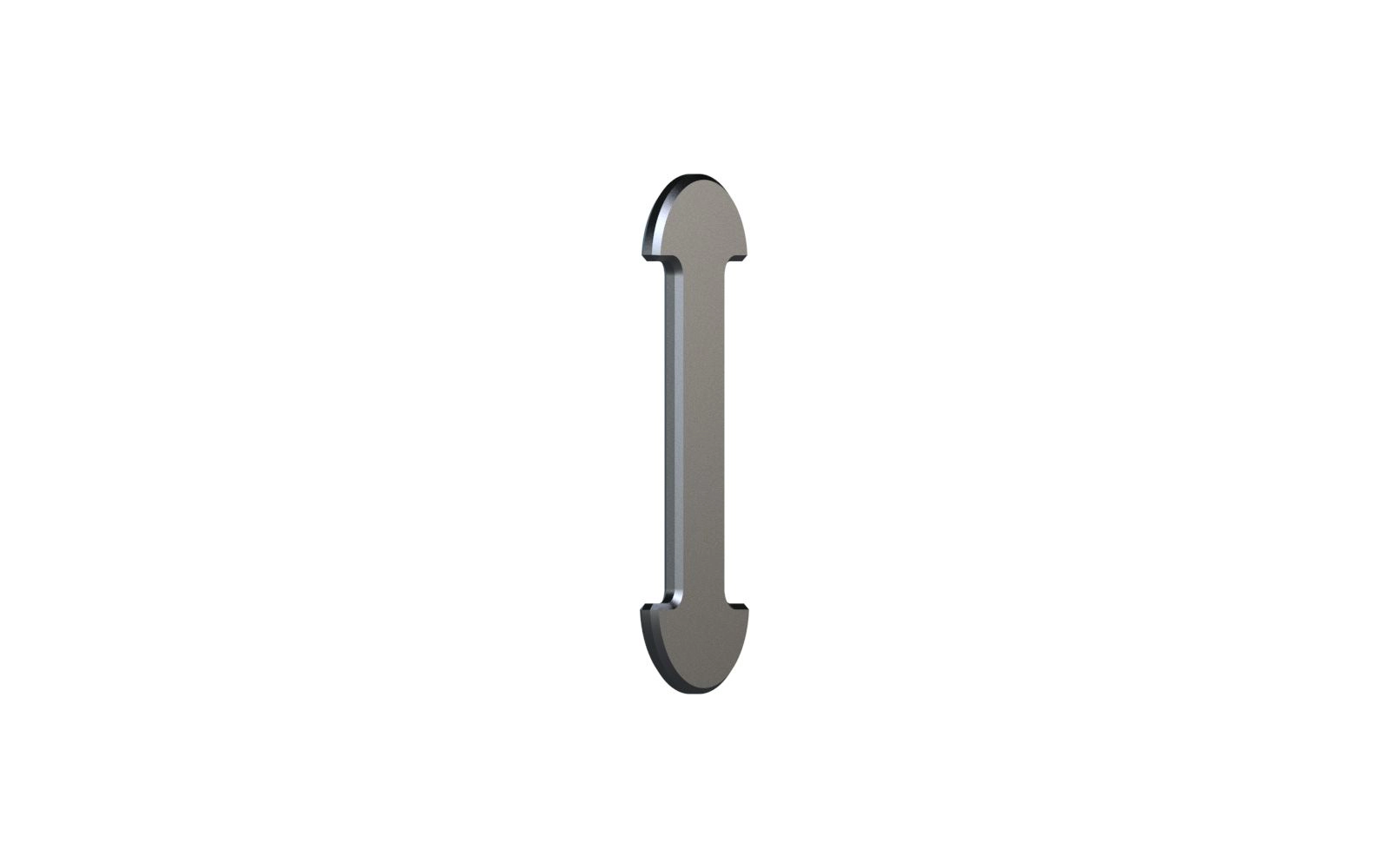

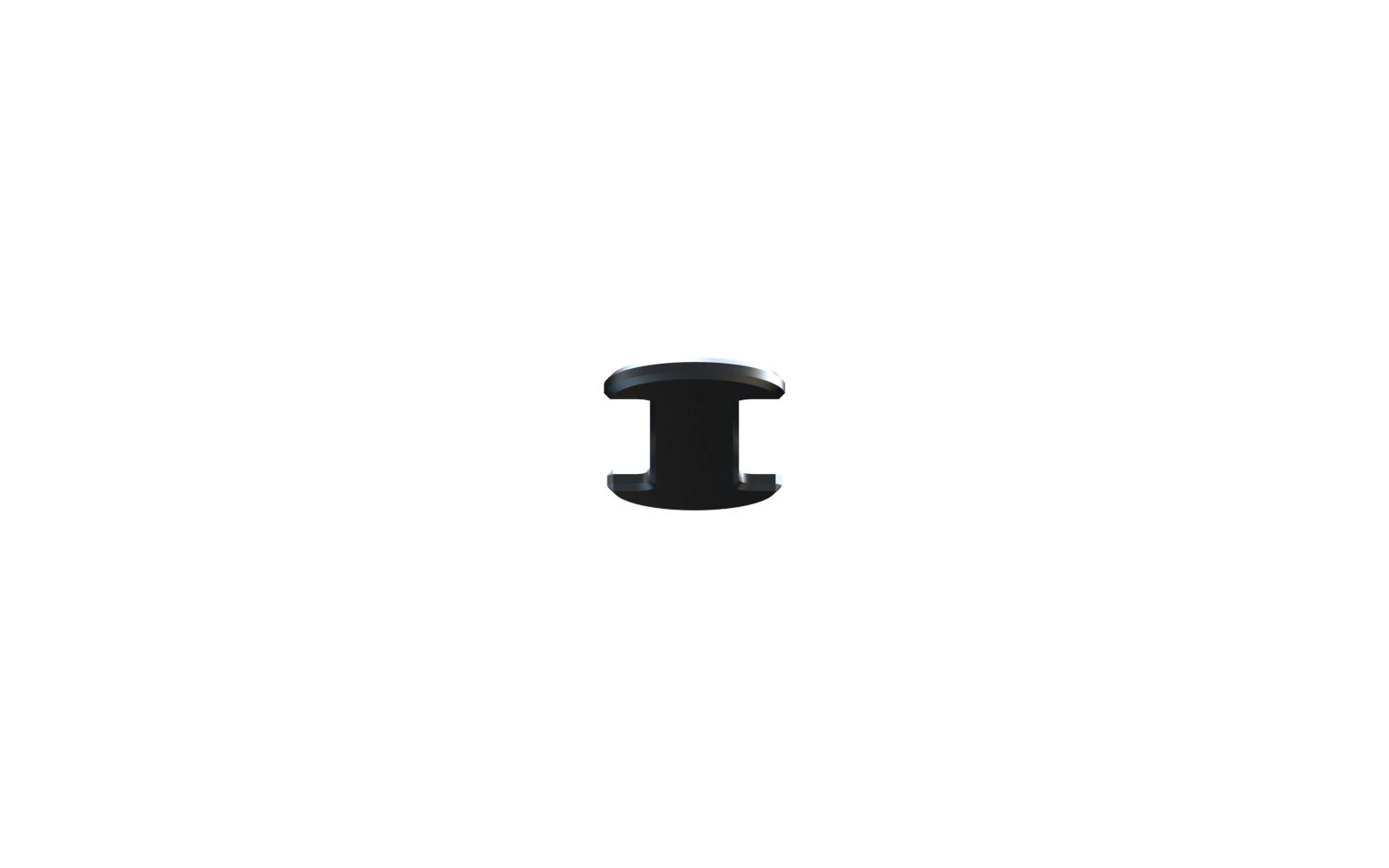

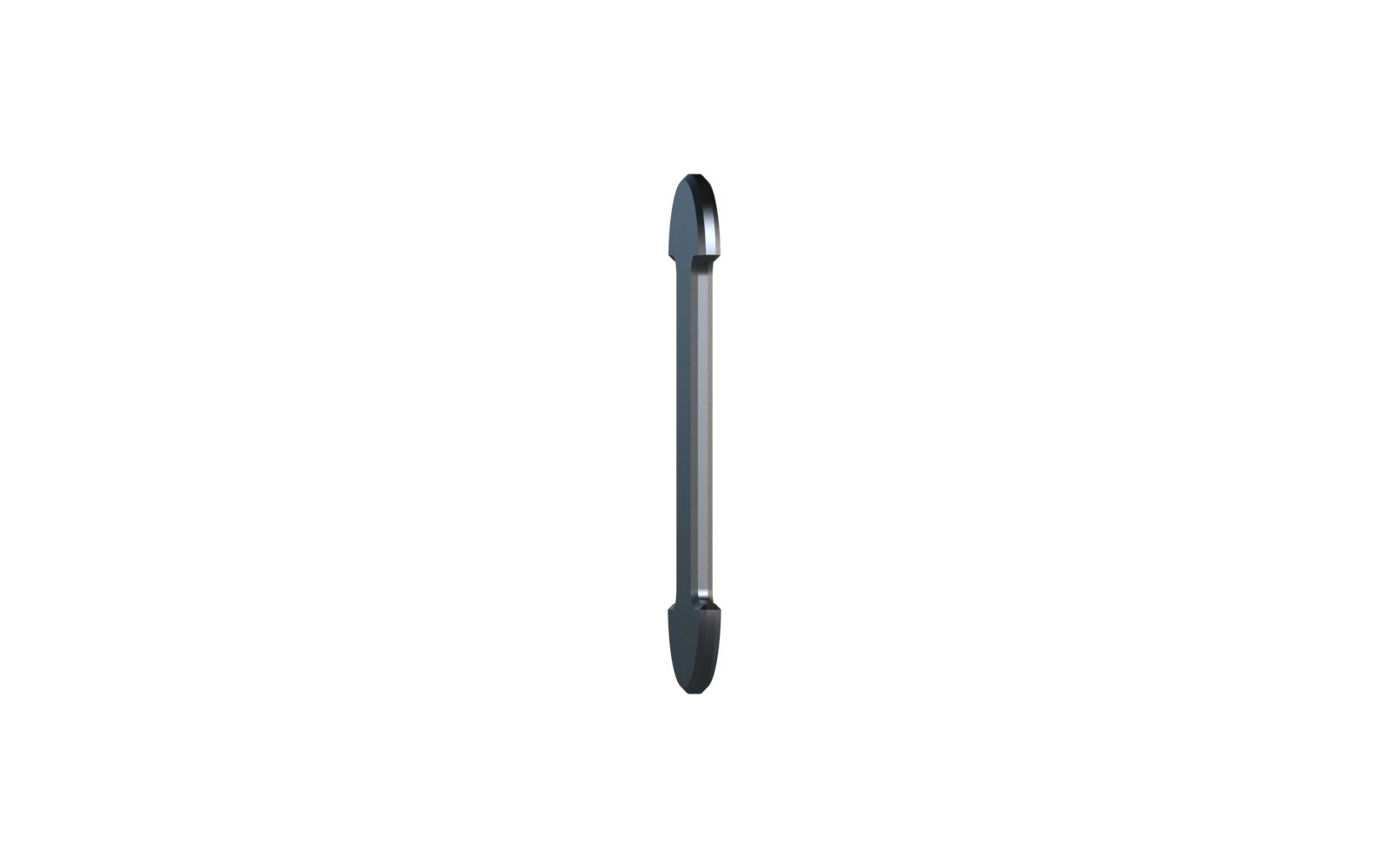

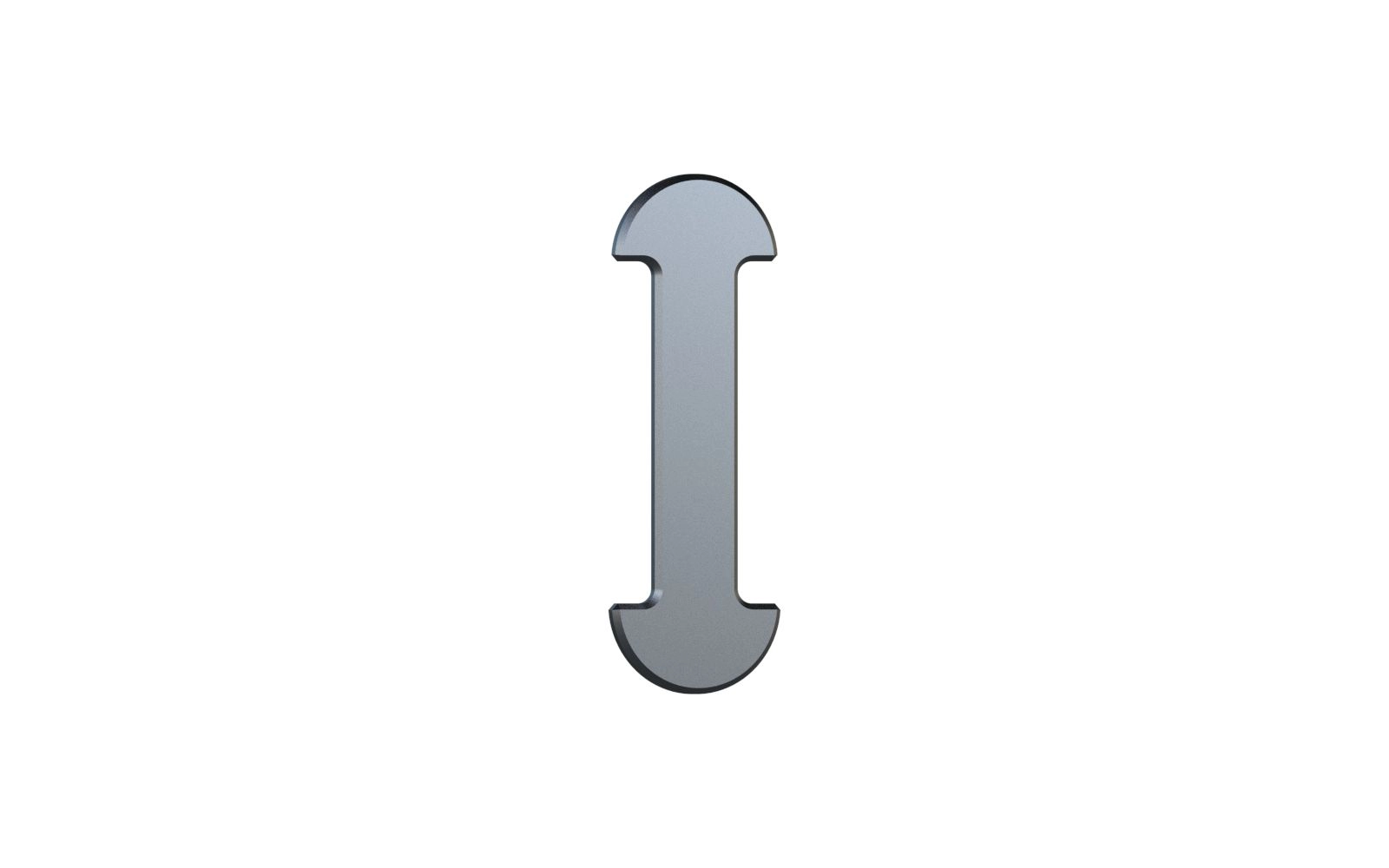

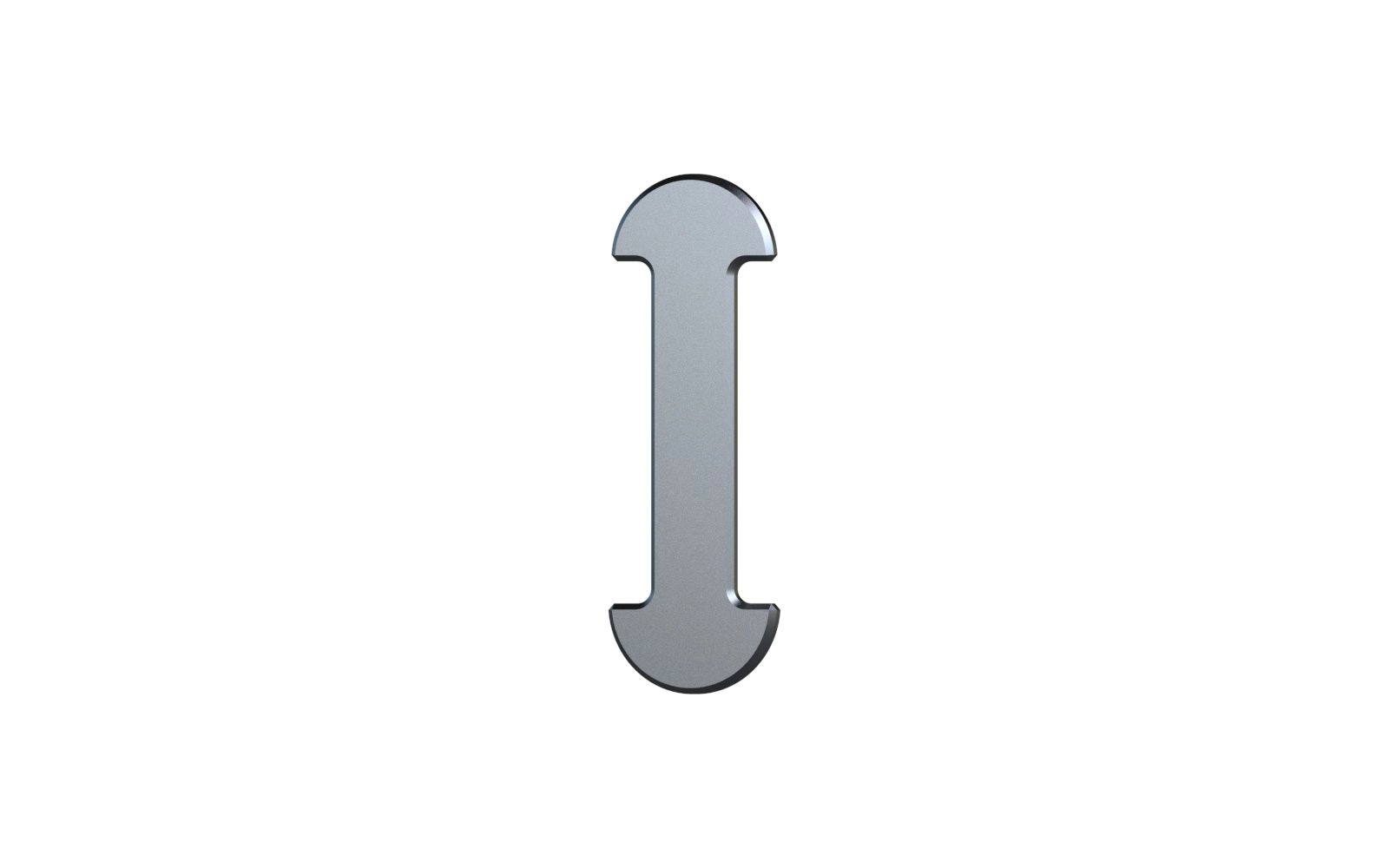

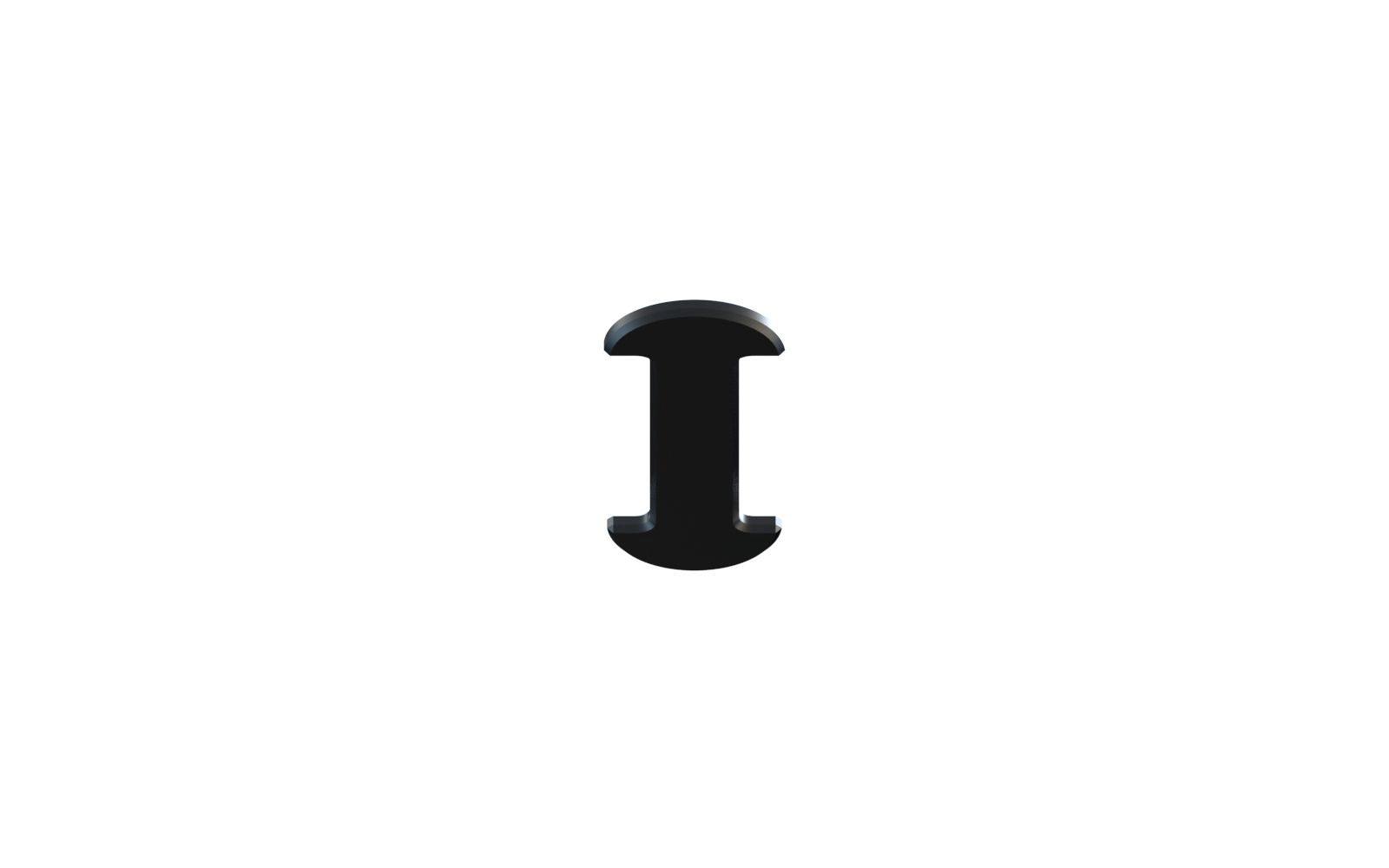

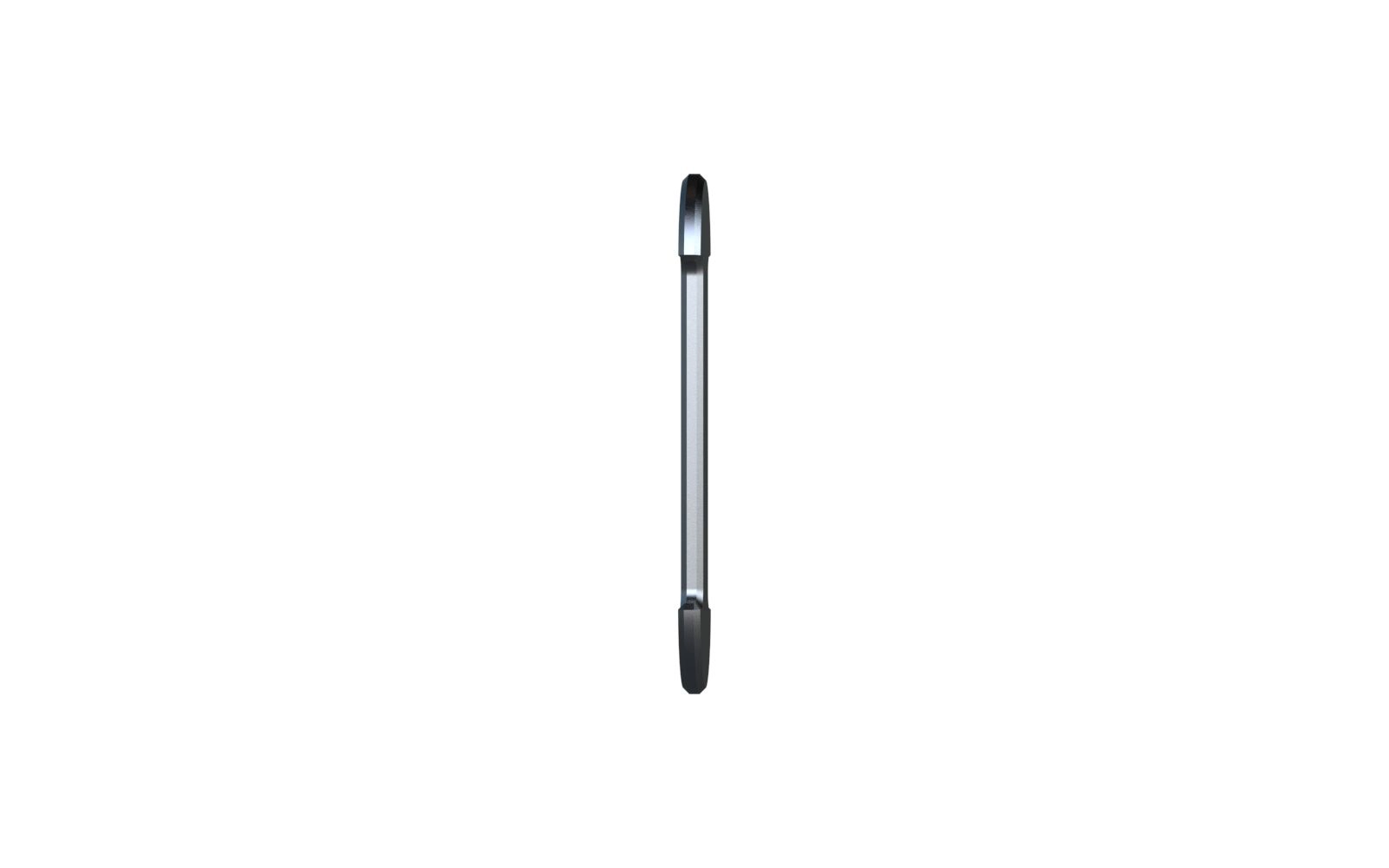

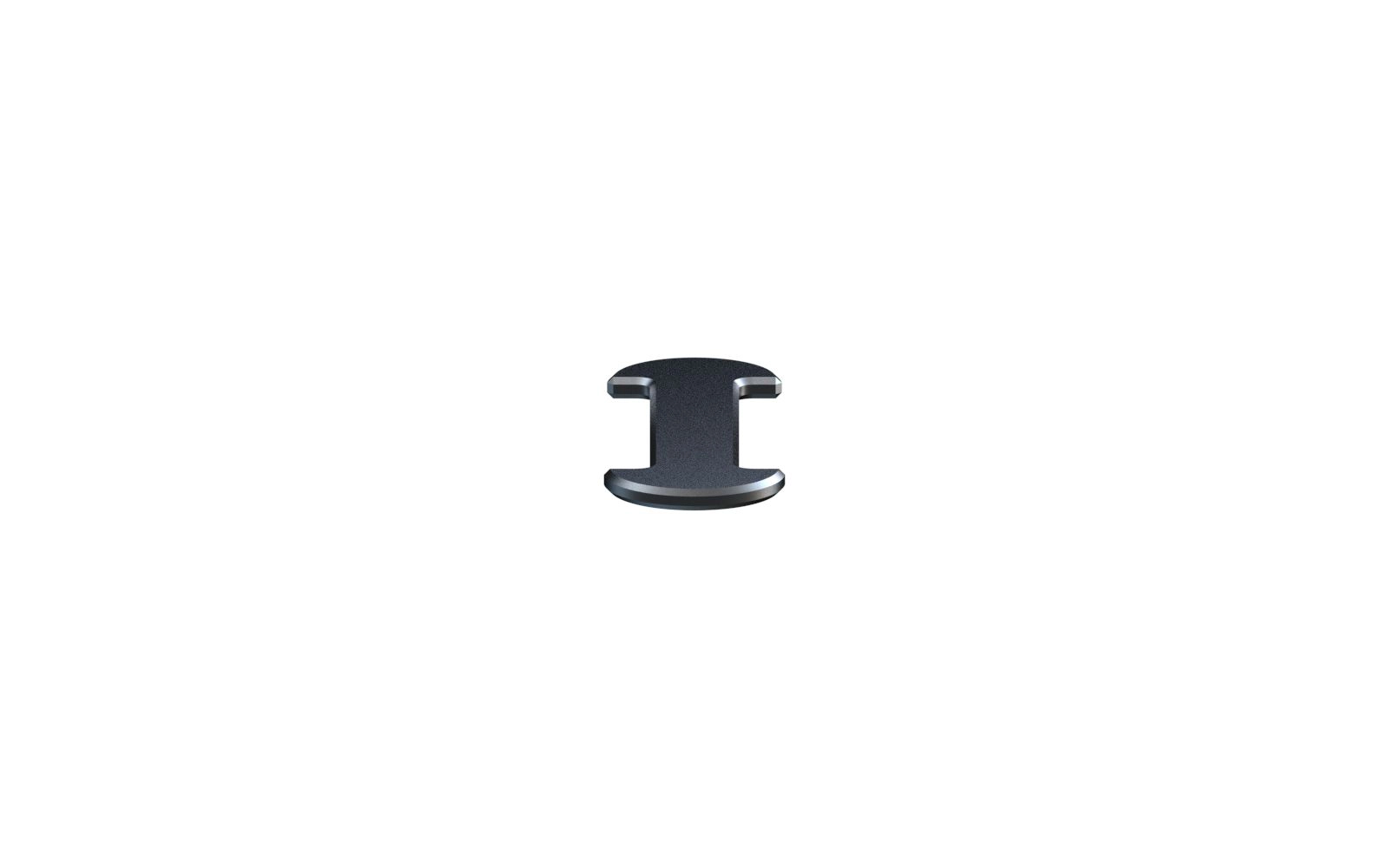

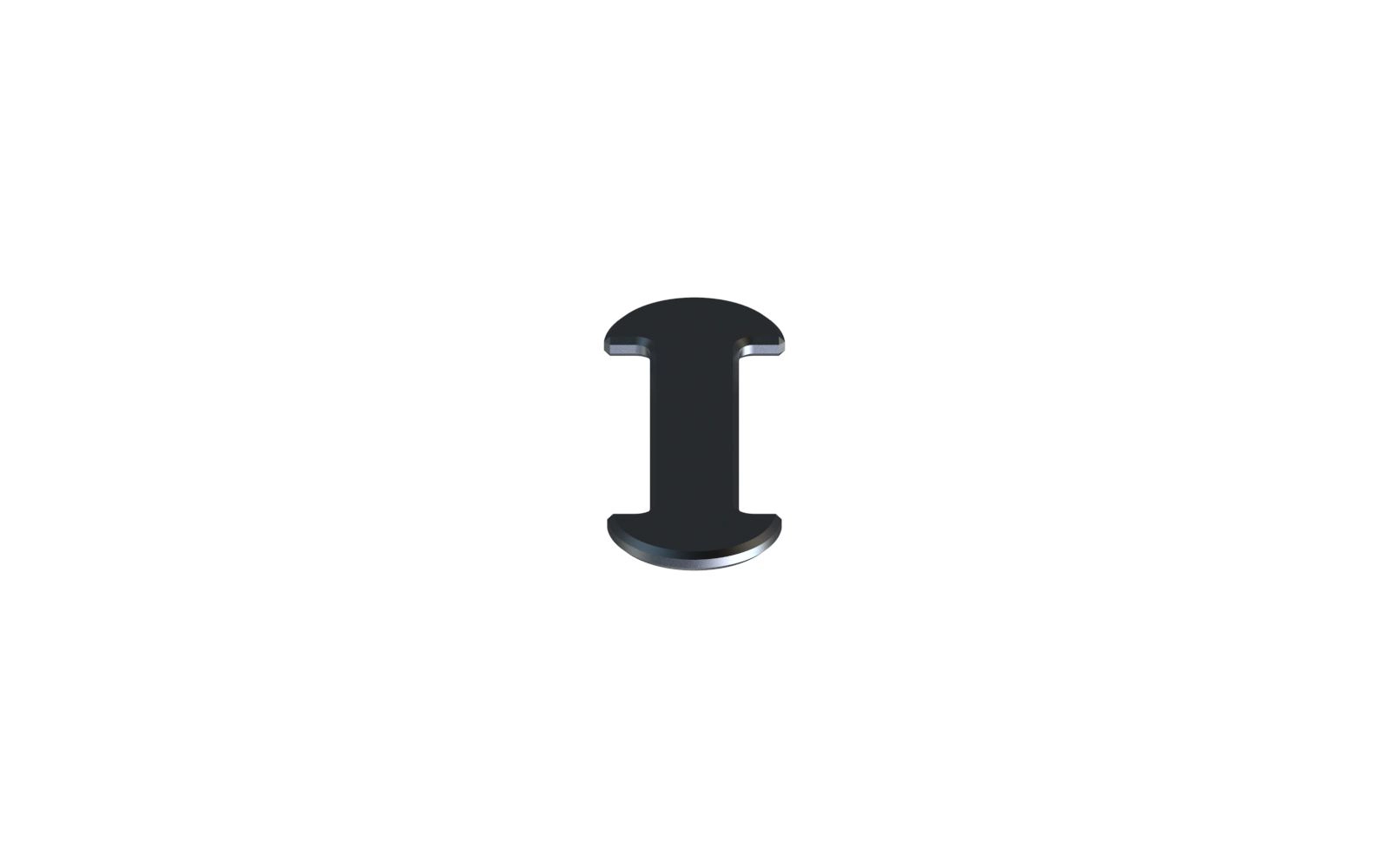

Visualization 360º

Drag the cursor horizontally to view 360º
